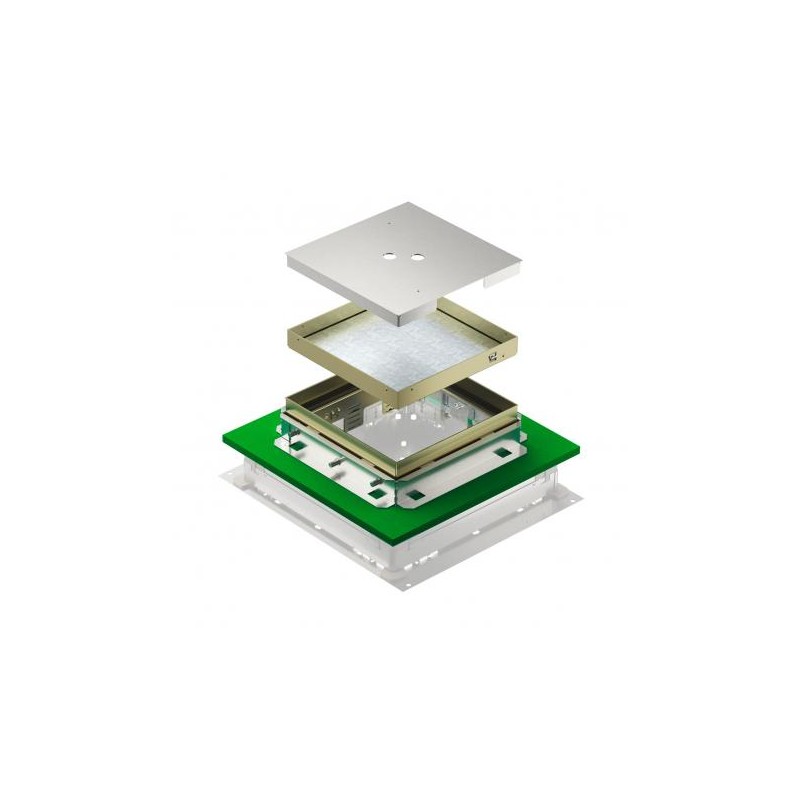

OBO BETTERMANN TRKN 9 MS 250 7409611 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

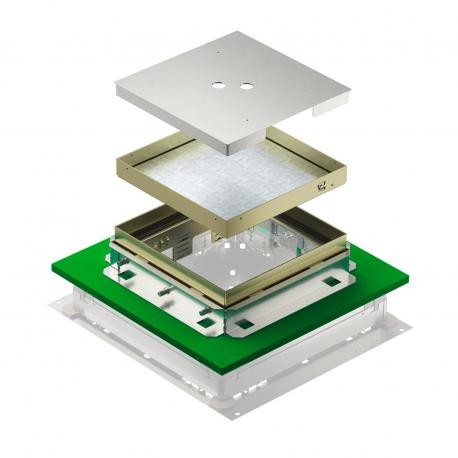

TRKN 9 MS 250 7409611 OBO BETTERMANN Embedded square box TRKN 9 MS 250, rectangular, blind 243x243x83 Brass,..

Reference: TRKN 9 MS 250

Code: 7409611

Manufacturer: OBO BETTERMANN

Description:

Embedded square box TRKN 9 MS 250, rectangular, blind 243x243x83 Brass, CuZn
Lid and frame assembly with adjustable and detachable height for register, brass

Categories:

  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Deutschland (Asociación de Electrotécnicos Alemanes)
  • Comunidad Europea, Declaración de conformidad según las directivas de la CE
  • Grado de protección IP55
Adjustable and detachable square cover and frame assembly for flush-to-ground, jointless installation of devices in UZD 250-3 (minimum installation depth 151 mm)/UGD55 250-3 (minimum installation depth 136 mm) underfloor junction boxes. Suitable for all types of cement flooring. Cassette frame with integrated formwork body and leveling function. The frame of the lid and frame assembly is leveled with the upper edge of the floor covering by 4 elongated holes. For dry, wet and wet cleaning floors. The cover and frame assembly is fixed to the mounting cover during screeding/terrazzo work by means of angle fasteners and is decoupled in all directions once installed. The frame of the lid and frame assembly is made of brass with a cutout for the floor covering of 25 mm deep on the lid. They are only suitable for polished floors.
Lid and frame set as frame and blind cover set, 3 compartments. 3 APMT5 protective blank caps can be installed. For the installation of 3 UT3 universal brackets for 9 individual mechanisms with support ring/bracket or 12 Modul 45 sockets.

ETIM for 7409611 Underfloor trunking and floor boxes (EC002603)

Feature nameMin. built-in depth (EF005027)
Feature value136 mm
Feature nameLevelling height (EF007999)
Feature value69 mm
Feature nameFloor maintenance (EF004546)
Feature valueWet
Feature nameModel (EF000010)
Feature valueSquare
Feature nameMaterial (EF002169)
Feature valueBrass
Feature nameNumber of conduit outlets (EF004424)
Feature value0
Feature nameChassis part for device cups (EF004750)
Feature valueNo
Feature nameNumber of appliances to build in (EF000219)
Feature value0
