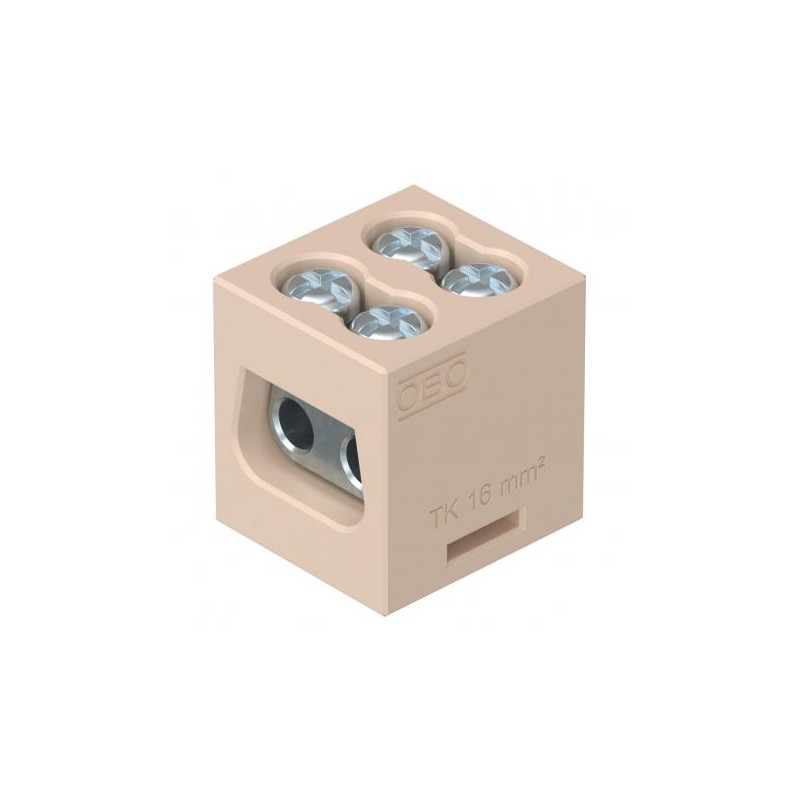

OBO BETTERMANN TK 16-2 7205707 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

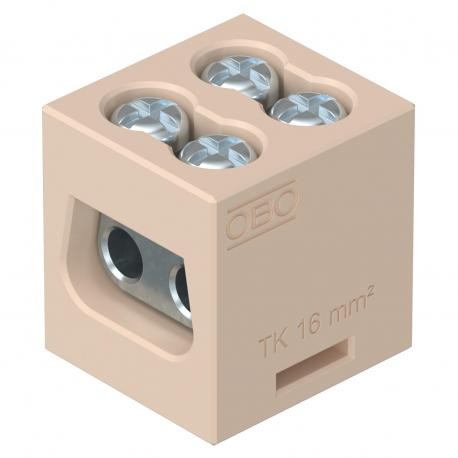

TK 16-2 7205707 OBO BETTERMANN Ceramic terminal for FireBox T 16 mm²

Reference: TK 16-2

Code: 7205707

Manufacturer: OBO BETTERMANN

Description:

Ceramic terminal for FireBox T 16 mm²
Ceramic terminal, double. High-temperature-resistant ceramic terminal with four connection options for refitting of the FireBox T series. Tested according to DIN EN 60998-2-1:2004.

Categories:

  • OBO BETTERMANN > BSS fire protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Total: 60,04 €

Unit Price: 12,008 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Closing plate requiredno
CO2 Footprint (GWP) Cradle-to-Gate0,005 kg CO2e / 1 Piece
ColourCream
Connectable conductor cross-section, multi-wire, max.16 mm²
Connectable conductor cross-section, multi-wire, min.6 mm²
Connectable conductor cross-section, single-wire, max.10 mm²
Connectable conductor cross-section, single-wire, min.6 mm²
Connection positionSide
Dimension16 mm²
Explosion-tested versionno
Height30,5 mm
Insulation materialCeramic
Length27 mm
MaterialSteatit
No. of terminals4
Nominal cross-section, max.16 mm²
Nominal cross-section, min.6 mm²
Nominal current76 A
Nominal voltage400 V
Number of screwless terminals per pole4
Permitted temperature range, max.250 °C
Pole number1
Transparentno
Version of electrical connection 1Screw connection
Version of electrical connection 2Screw connection
Width29,5 mm

ETIM for 7205707 Terminal blocks (EC001284)

Feature nameType of electrical connection 1 (EF002526)
Feature valueScrew connection
Feature nameType of electrical connection 2 (EF002527)
Feature valueScrew connection
Feature nameNumber of poles (EF001391)
Feature value1
Feature nameNumber of clamp positions per pole (EF002519)
Feature value4
Feature nameMounting method (EF000003)
Feature valueOther
Feature nameMaterial insulation body (EF007543)
Feature valueCeramics
Feature nameClosing plate required (EF002525)
Feature valueNo
Feature nameTransparent (EF006243)
Feature valueNo
