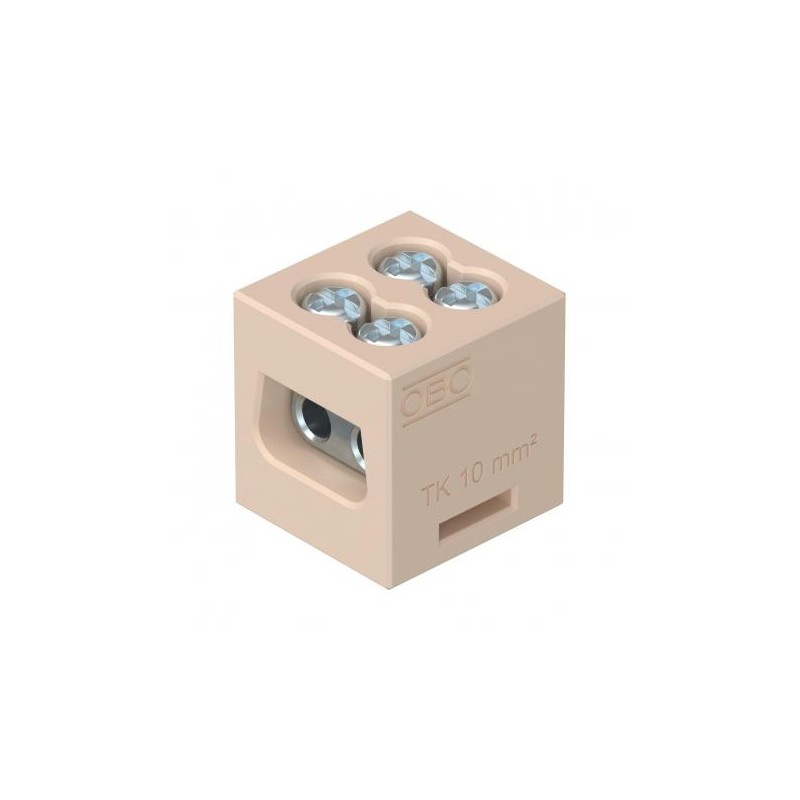

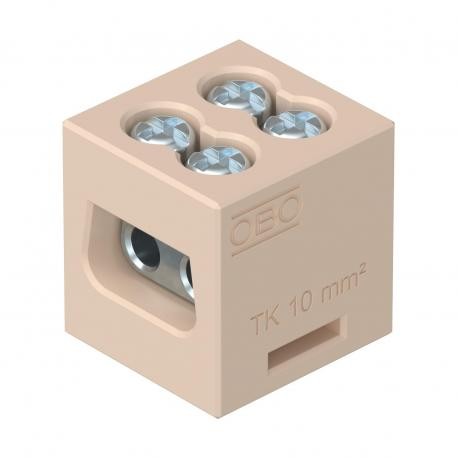

TK 10-2 7205705 OBO BETTERMANN Ceramic terminal for FireBox T 10 mm²
TK 10-2
7205705
OBO BETTERMANN
5
Ceramic terminal for FireBox T 10 mm²
Ceramic terminal, double. High-temperature-resistant ceramic terminal with four connection options for refitting of the FireBox T series. Tested according to DIN EN 60998-2-1:2004.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Closing plate required | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0079 kg CO2e / 1 Piece |
| Colour | Cream |
| Connectable conductor cross-section, single-wire, max. | 10 mm² |
| Connectable conductor cross-section, single-wire, min. | 4 mm² |
| Connection position | Side |
| Dimension | 10 mm² |
| Explosion-tested version | no |
| Height | 26 mm |
| Insulation material | Ceramic |
| Length | 24,5 mm |
| Material | Steatit |
| No. of terminals | 4 |
|---|---|
| Nominal cross-section, max. | 10 mm² |
| Nominal cross-section, min. | 4 mm² |
| Nominal current | 57 A |
| Nominal voltage | 400 V |
| Number of screwless terminals per pole | 4 |
| Permitted temperature range, max. | 250 °C |
| Pole number | 1 |
| Transparent | no |
| Version of electrical connection 1 | Screw connection |
| Version of electrical connection 2 | Screw connection |
| Width | 26,5 mm |
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection 1 (EF002526) | Screw connection |
| Type of electrical connection 2 (EF002527) | Screw connection |
| Number of poles (EF001391) | 1 |
| Number of clamp positions per pole (EF002519) | 4 |
| Mounting method (EF000003) | Other |
| Material insulation body (EF007543) | Ceramics |
| Closing plate required (EF002525) | No |
| Transparent (EF006243) | No |
