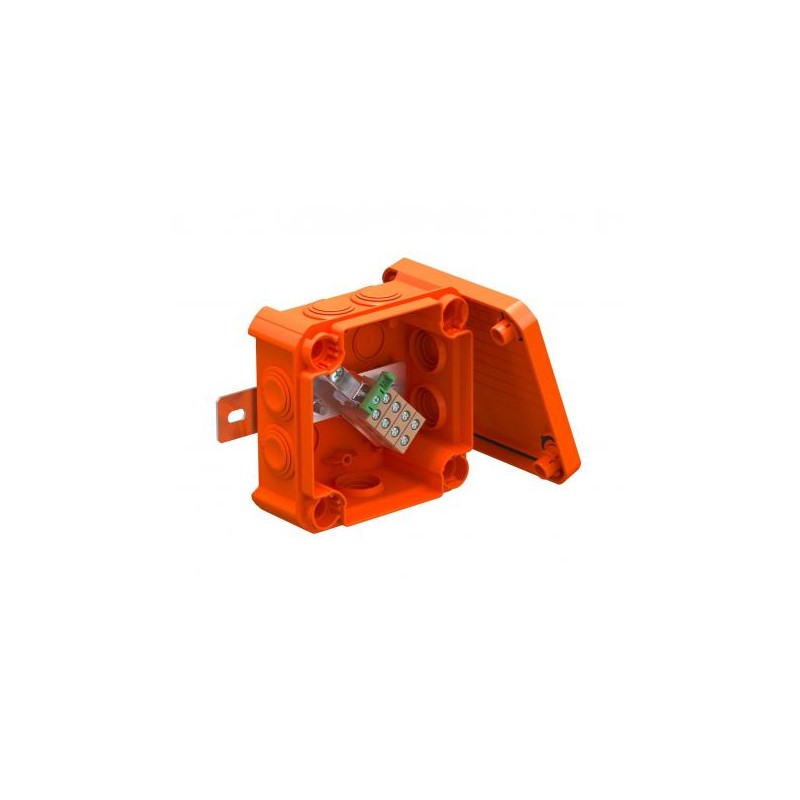

OBO BETTERMANN T60ED 06A 7205741 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

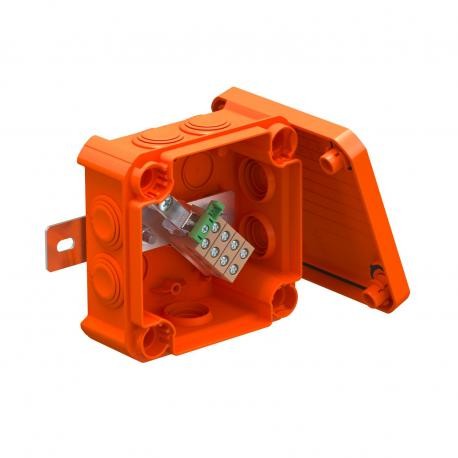

T60ED 06A 7205741 OBO BETTERMANN T60ED 06A junction box, for function maintenance 114x114x57 Polypropylene, ..

Reference: T60ED 06A

Code: 7205741

Manufacturer: OBO BETTERMANN

Description:

T60ED 06A junction box, for function maintenance 114x114x57 Polypropylene, PP
FireBox T60 with plug-in seals. Junction box with ceramic terminals and soft plug-in seals. Sufficiently large wiring compartment through diagonally arranged connection unit with completely pre-mounted, high-temperature-resistant ceramic terminals. Green-yellow labelled protective conductor terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic terminals were tested according to DIN EN 60998-2-1:2004.

Categories:

  • OBO BETTERMANN > BSS fire protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 38,92 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Clase de mantenimiento de función E30
  • Clase de mantenimiento de función E60
  • Clase de mantenimiento de función E90
  • Grado de protección IP66
Junction box with individual ceramic terminal blocks and soft insertable joints. Sufficient wiring space thanks to a diagonally arranged connection unit with fully pre-assembled, high-temperature resistant ceramic terminals. Green-yellow marked conductor protective terminal. Attachment to very accessible external flanges. Approved for cable systems with electrical function maintenance according to DIN 4102, part 12, with classes E30, E60 and E90. The ceramic terminal blocks have been tested according to DIN EN 60998-2-1:2004.


ETIM for 7205741 Junction and back boxes (EC002600)

Feature nameEquipped with (EF000557)
Feature valueOther
Feature nameShape (EF000051)
Feature valueRectangular
Feature nameInlet from the rear (EF005604)
Feature valueNo
Feature nameLength (EF001438)
Feature value114 mm
Feature nameWidth (EF000008)
Feature value114 mm
Feature nameDepth (EF000049)
Feature value58.6 mm
Feature nameConnectable (EF006169)
Feature valueNo
Feature nameType of housing feed-through (EF007661)
Feature valueTrimmable step membrane
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameColour (EF000007)
Feature valueOrange
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameCover attachment (EF004586)
Feature valueScrewed
Feature nameCircuit integrity (EF001613)
Feature valueE 90
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameWeatherproof (EF005436)
Feature valueNo
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameFor Ex-zone dust (EF008404)
Feature valueNone
