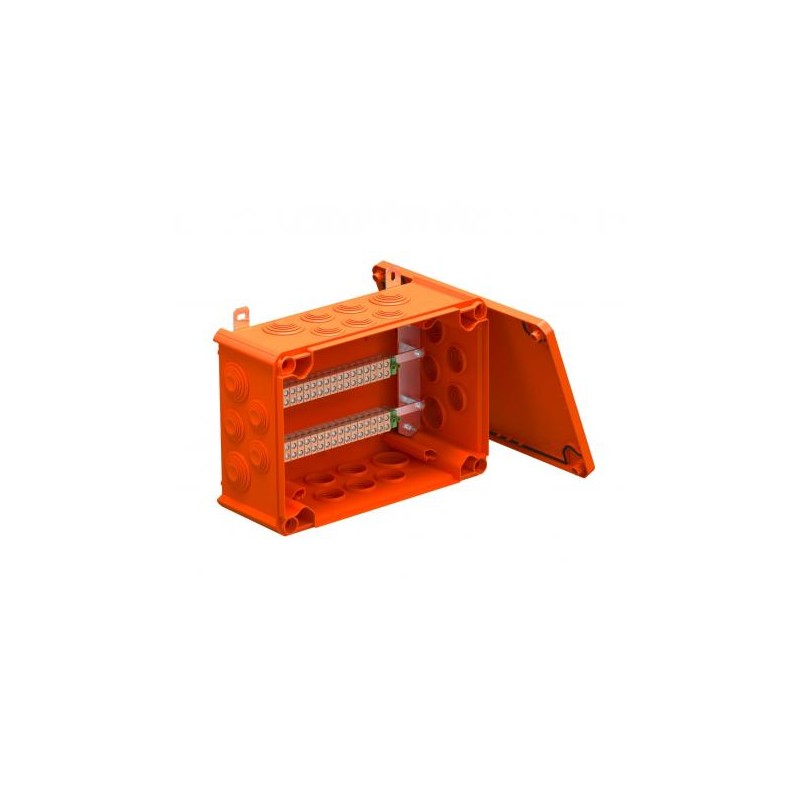

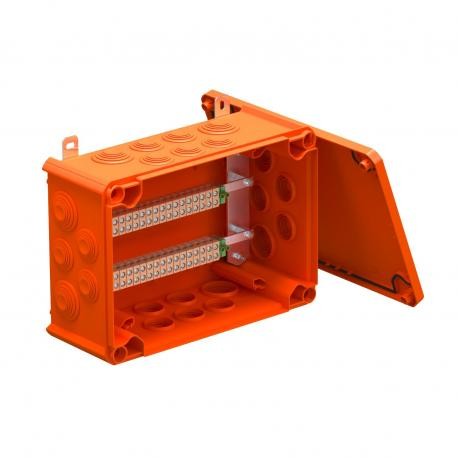

T350ED 4x32AD 7205772 OBO BETTERMANN T350ED 4x32AD junction box, for function maintenance 285x201x120 Polypr..
T350ED 4x32AD
7205772
OBO BETTERMANN
T350ED 4x32AD junction box, for function maintenance 285x201x120 Polypropylene, PP
T350ED 4x32AD Function Maintenance Bypass Box
FireBox T350, with plug-in seals, for data technology, 4x32. Connection box for data technology with soft plug-in seals. Pairs of high-temperature-resistant ceramic terminals, suitable for data cables. Green-yellow labelled protective conductor/shield terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic clamps have been tested according to DIN EN 60998-2-1:2004.Including 2x MMSplus P 6x35 screw ties.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲
Connection boxes for data technology with soft insertable joints. Quantity per pair of high temperature resistant ceramic terminals adapted to the data lines. Conductor protective/shielded terminal marked green-yellow. Fixing to very accessible exterior flanges. Approved for cable systems with maintenance of electrical function according to DIN 4102, part 12, with classes E30, E60 and E90.
Included 2 x MMSplus P 6x35 anchor screws.
| Feature Name | Feature Value |
|---|---|
| Equipped with (EF000557) | Other |
| Shape (EF000051) | Rectangular |
| Inlet from the rear (EF005604) | No |
| Length (EF001438) | 285 mm |
| Width (EF000008) | 201 mm |
| Depth (EF000049) | 120 mm |
| Connectable (EF006169) | No |
| Number of inlets (EF003593) | 10 |
| Type of housing feed-through (EF007661) | Trimmable step membrane |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Orange |
| Degree of protection (IP) (EF005474) | IP66 |
| Cover attachment (EF004586) | Screwed |
| Circuit integrity (EF001613) | E 90 |
| With screening (EF005032) | No |
| Weatherproof (EF005436) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN.pdf | 18 Mbytes |
|
| PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN.pdf | 12 Mbytes |
|
