T250ED 4x16AD 7205768 OBO BETTERMANN T250ED 4x16AD junction box, for 240x190x95 function maintenance Polypro..
T250ED 4x16AD
7205768
OBO BETTERMANN

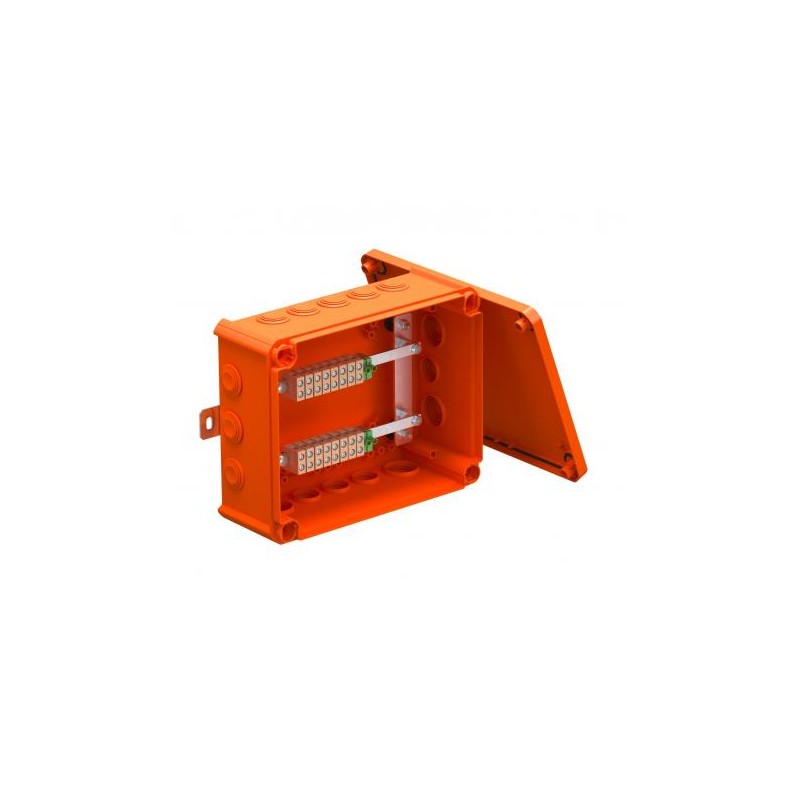

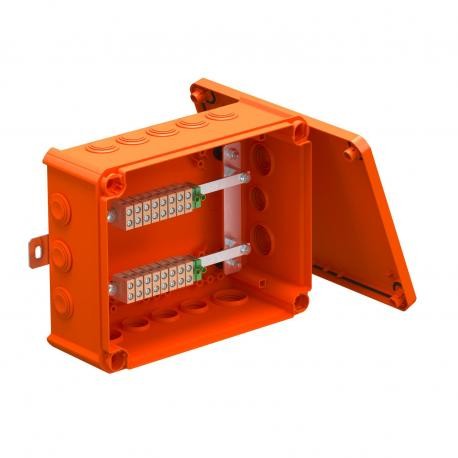

T250ED 4x16AD junction box, for 240x190x95 function maintenance Polypropylene, PP
T250ED 4x16AD Function Maintenance Bypass Box
FireBox T250, with plug-in seals, for data technology, 4x16. Connection box for data technology with soft plug-in seals. Pairs of high-temperature-resistant ceramic terminals, suitable for data cables. Green-yellow labelled protective conductor/shield terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic clamps have been tested according to DIN EN 60998-2-1:2004.Including 2x MMSplus P 6x35 screw ties.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲
Connection boxes for data technology with soft insertable joints. Pairwise quantity of high temperature resistant ceramic terminals suitable for data lines. Conductor protective/shielded terminal marked green-yellow. Fixing to very accessible exterior flanges. Approved for cable systems with maintenance of electrical function according to DIN 4102, part 12, with classes E30, E60 and E90.
Included 2 x MMSplus P 6x35 anchor screws.
| Feature Name | Feature Value |
|---|---|
| Equipped with (EF000557) | Other |
| Shape (EF000051) | Rectangular |
| Inlet from the rear (EF005604) | No |
| Length (EF001438) | 240 mm |
| Width (EF000008) | 190 mm |
| Depth (EF000049) | 95 mm |
| Connectable (EF006169) | No |
| Number of inlets (EF003593) | 10 |
| Type of housing feed-through (EF007661) | Trimmable step membrane |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Orange |
| Degree of protection (IP) (EF005474) | IP66 |
| Cover attachment (EF004586) | Screwed |
| Circuit integrity (EF001613) | E 90 |
| With screening (EF005032) | No |
| Weatherproof (EF005436) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN.pdf | 18 Mbytes |
|
| PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN.pdf | 12 Mbytes |
|
