OBO BETTERMANNBSS fire protection systems - OBO BETTERMANNT250ED 16A2F 7205762 OBO BETTERMANN T250ED 16A2F junction box, for function maintenance 240x190x95 Polypropy..

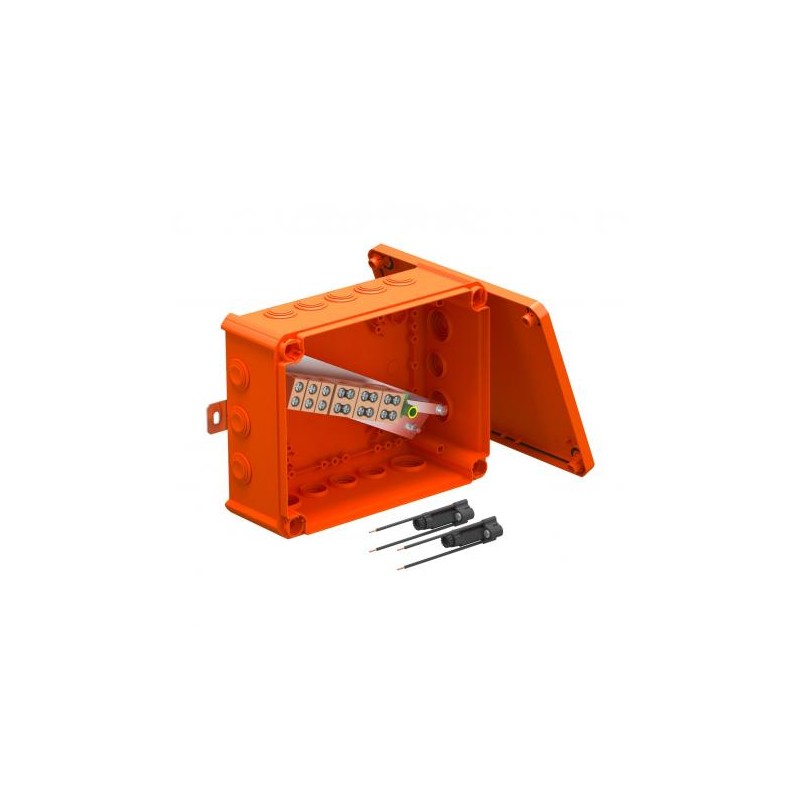

OBO BETTERMANN T250ED 16A2F 7205762 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

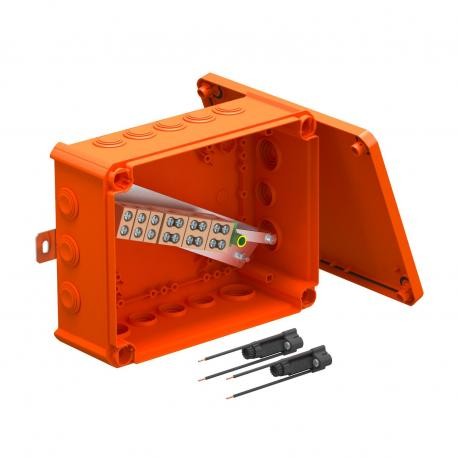

T250ED 16A2F 7205762 OBO BETTERMANN T250ED 16A2F junction box, for function maintenance 240x190x95 Polypropy..

Reference: T250ED 16A2F

Code: 7205762

Manufacturer: OBO BETTERMANN

Description:

T250ED 16A2F junction box, for function maintenance 240x190x95 Polypropylene, PP
T250ED 16A2F Function Maintenance Bypass Box
FireBox T250 with plug-in seals, 2 fuse holders. Junction box with two fuse holders and soft plug-in seals. Sufficiently large wiring compartment through diagonally arranged connection unit with completely pre-mounted, high-temperature-resistant ceramic terminals. Green-yellow labelled protective conductor terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic clamps have been tested according to DIN EN 60998-2-1:2004.Including 2x MMSplus P 6x35 screw ties.

Categories:

  • OBO BETTERMANN > BSS fire protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 147,53 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Clase de mantenimiento de función E30
  • Clase de mantenimiento de función E60
  • Clase de mantenimiento de función E90
  • Grado de protección IP66

In modern buildings, more and more is being demanded when it comes to fire safety. In order to safely meet these requirements, OBO offers the thermoplastic FireBox for the extension or bypass of specific cables for function maintenance. With the FireBox series, OBO completes its range of function maintenance systems for safety-relevant installations.
The tested and approved types T100E and T160E fulfil their function with reliability and safety. A bypass box, connection unit, two shutter discs and two anchor screws are supplied for fixing in masonry or concrete.
A highlight of OBO FireBox is the fully pre-assembled, high-temperature resistant connection unit. To this end, OBO provides solutions as a single provider.

ETIM for 7205762 Junction and back boxes (EC002600)

Feature nameEquipped with (EF000557)
Feature valueOther
Feature nameShape (EF000051)
Feature valueRectangular
Feature nameInlet from the rear (EF005604)
Feature valueNo
Feature nameLength (EF001438)
Feature value240 mm
Feature nameWidth (EF000008)
Feature value190 mm
Feature nameDepth (EF000049)
Feature value95 mm
Feature nameConnectable (EF006169)
Feature valueNo
Feature nameType of housing feed-through (EF007661)
Feature valueTrimmable step membrane
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameColour (EF000007)
Feature valueOrange
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameCover attachment (EF004586)
Feature valueScrewed
Feature nameCircuit integrity (EF001613)
Feature valueE 90
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameWeatherproof (EF005436)
Feature valueNo
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameFor Ex-zone dust (EF008404)
Feature valueNone

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN
18 Mbytes
PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN
12 Mbytes
