OBO BETTERMANNBSS fire protection systems - OBO BETTERMANNT160ED 10A2F 7205760 OBO BETTERMANN T160ED 10A2F junction box, for function maintenance 190x150x77 Polypropy..

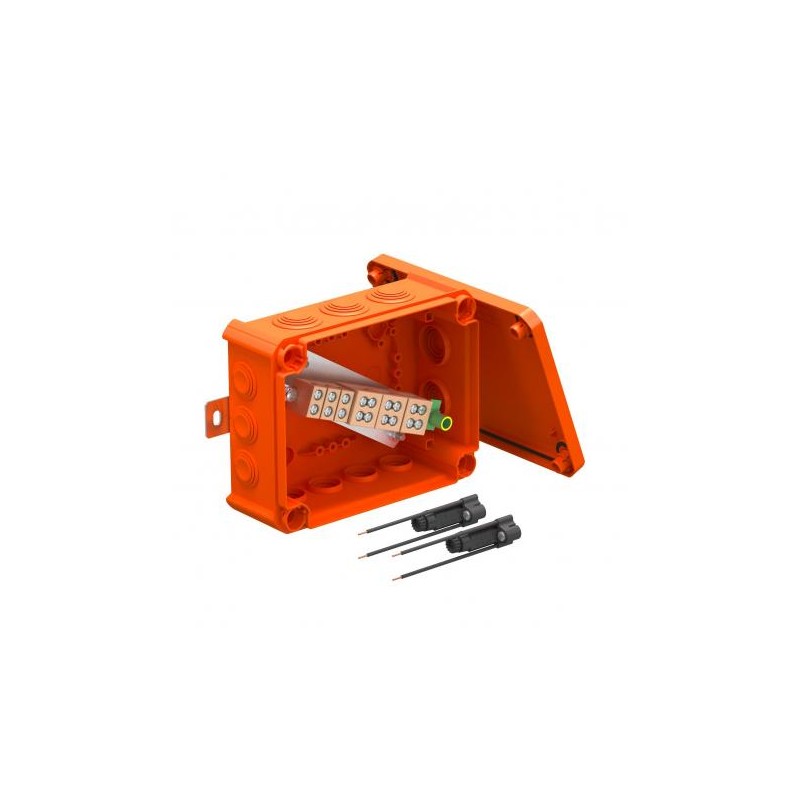

OBO BETTERMANN T160ED 10A2F 7205760 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

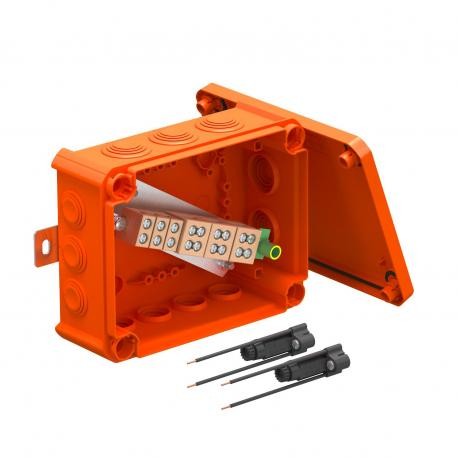

T160ED 10A2F 7205760 OBO BETTERMANN T160ED 10A2F junction box, for function maintenance 190x150x77 Polypropy..

Reference: T160ED 10A2F

Code: 7205760

Manufacturer: OBO BETTERMANN

Description:

T160ED 10A2F junction box, for function maintenance 190x150x77 Polypropylene, PP
T160ED 10A2F Function Maintenance Bypass Box
FireBox T160 with plug-in seals, 2 fuse holders. Junction box with two fuse holders and soft plug-in seals. Sufficiently large wiring compartment through diagonally arranged connection unit with completely pre-mounted, high-temperature-resistant ceramic terminals. Green-yellow labelled protective conductor terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic clamps have been tested according to DIN EN 60998-2-1:2004.Including 2x MMSplus P 6x35 screw ties.

Categories:

  • OBO BETTERMANN > BSS fire protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 125,95 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Clase de mantenimiento de función E30
  • Clase de mantenimiento de función E60
  • Clase de mantenimiento de función E90
  • Grado de protección IP66

Halogen-free bypass box with pre-assembled flexible insertable joints, approved for the maintenance of function of electrical systems according to DIN 4102 part 12. Function maintenance classes from E30 to E90.

Color: pale orange.

Fully assembled connection unit made of special ceramic resistant to high temperatures and identified connection terminals. Supply with FUSE holders TE-FH 520 according to VDE regulations, safe without consumer reaction and 2 screwed fire protection anchors MMS 6x50 for fixation without studs to the outer flanges.
Nominal power cable section: 16 mm². Possibility to connect several rigid copper conductors of smaller diameter in each terminal.
High degree of protection IP66, impact resistance class IK05.

Details on cable types, and manufacturers, can be found in the general construction test certificate of the MPA NRW materials testing institute, Erwitte.

ETIM for 7205760 Junction and back boxes (EC002600)

Feature nameEquipped with (EF000557)
Feature valueOther
Feature nameShape (EF000051)
Feature valueRectangular
Feature nameInlet from the rear (EF005604)
Feature valueNo
Feature nameLength (EF001438)
Feature value190 mm
Feature nameWidth (EF000008)
Feature value150 mm
Feature nameDepth (EF000049)
Feature value77 mm
Feature nameConnectable (EF006169)
Feature valueNo
Feature nameNumber of inlets (EF003593)
Feature value12
Feature nameType of housing feed-through (EF007661)
Feature valueTrimmable step membrane
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameColour (EF000007)
Feature valueOrange
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameCover attachment (EF004586)
Feature valueScrewed
Feature nameRated insulation voltage Ui (EF001366)
Feature value690 V
Feature nameCircuit integrity (EF001613)
Feature valueE 90
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameWeatherproof (EF005436)
Feature valueNo
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameFor Ex-zone dust (EF008404)
Feature valueNone
