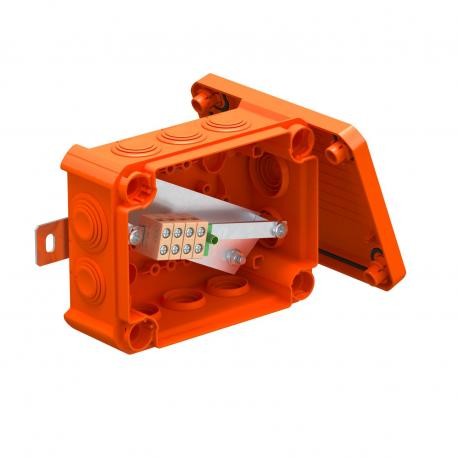

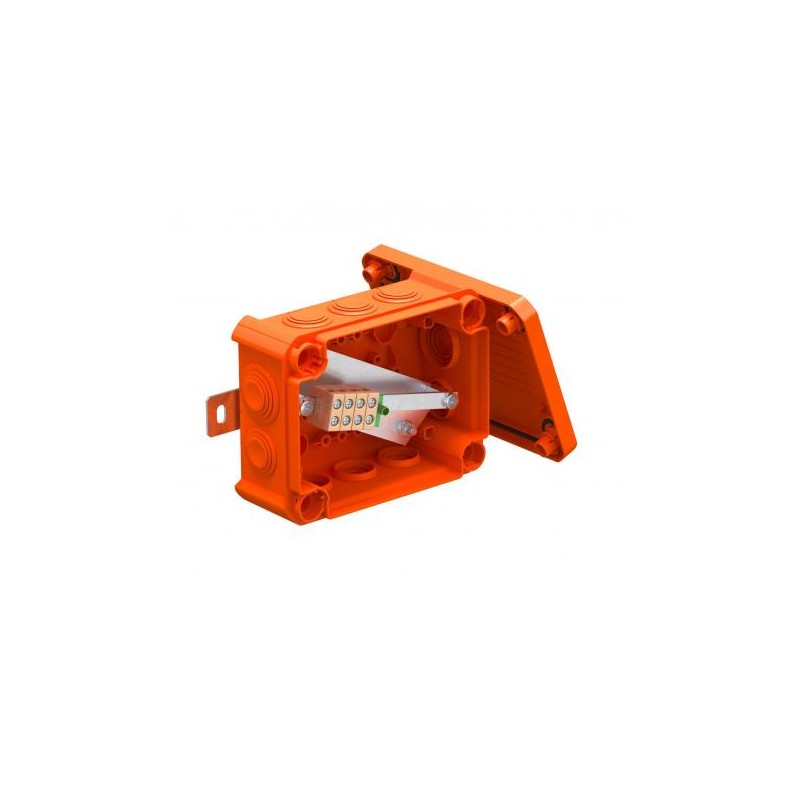

T100ED 4x4AD 7205764 OBO BETTERMANN T100ED 4x4AD junction box, for function maintenance 150x116x67 Polypropy..

Reference: T100ED 4x4AD

Code: 7205764

Manufacturer: OBO BETTERMANN

Description:

T100ED 4x4AD junction box, for function maintenance 150x116x67 Polypropylene, PP
T100ED 4x4AD Function Maintenance Bypass Box
FireBox T100, with plug-in seals, for data technology. Connection box for data technology with soft plug-in seals. Pairs of high-temperature-resistant ceramic terminals, suitable for data cables. Green-yellow labelled protective conductor/shield terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic clamps have been tested according to DIN EN 60998-2-1:2004.Including 2x MMSplus P 6x35 screw ties.

Categories:

  • OBO BETTERMANN > BSS fire protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 46,09 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Clase de mantenimiento de función E30
  • Clase de mantenimiento de función E60
  • Clase de mantenimiento de función E90
  • Grado de protección IP66

Connection boxes for data technology with soft insertable joints. Quantity per pair of high temperature resistant ceramic terminals adapted to the data lines. Conductor protective/shielded terminal marked green-yellow. Fixing to very accessible exterior flanges. Approved for cable systems with maintenance of electrical function according to DIN 4102, part 12, with classes E30, E60 and E90.
Included 2 x MMSplus P 6x35 anchor screws.

ETIM for 7205764 Junction and back boxes (EC002600)

Feature nameEquipped with (EF000557)
Feature valueOther
Feature nameShape (EF000051)
Feature valueRectangular
Feature nameInlet from the rear (EF005604)
Feature valueNo
Feature nameLength (EF001438)
Feature value150 mm
Feature nameWidth (EF000008)
Feature value116 mm
Feature nameDepth (EF000049)
Feature value68 mm
Feature nameConnectable (EF006169)
Feature valueNo
Feature nameNumber of inlets (EF003593)
Feature value10
Feature nameType of housing feed-through (EF007661)
Feature valueTrimmable step membrane
Feature nameMaterial (EF002169)
Feature valuePlastic
Feature nameHalogen free (EF000025)
Feature valueYes
Feature nameColour (EF000007)
Feature valueOrange
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP66
Feature nameCover attachment (EF004586)
Feature valueScrewed
Feature nameCircuit integrity (EF001613)
Feature valueE 90
Feature nameWith screening (EF005032)
Feature valueNo
Feature nameWeatherproof (EF005436)
Feature valueNo
Feature nameFor Ex-zone gas (EF005728)
Feature valueNone
Feature nameFor Ex-zone dust (EF008404)
Feature valueNone
