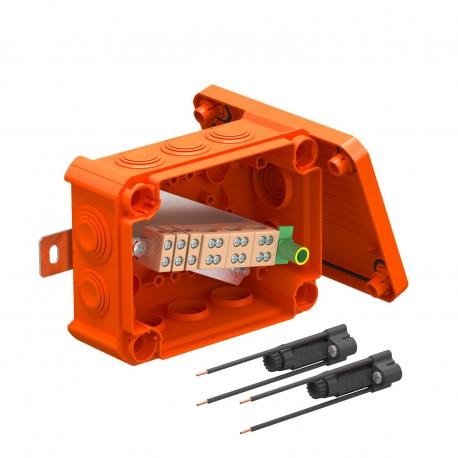

T100ED 06A2F 7205758 OBO BETTERMANN T100ED 06A2F junction box, for function maintenance 150x116x67 Polypropy..
T100ED 06A2F
7205758
OBO BETTERMANN
T100ED 06A2F junction box, for function maintenance 150x116x67 Polypropylene, PP

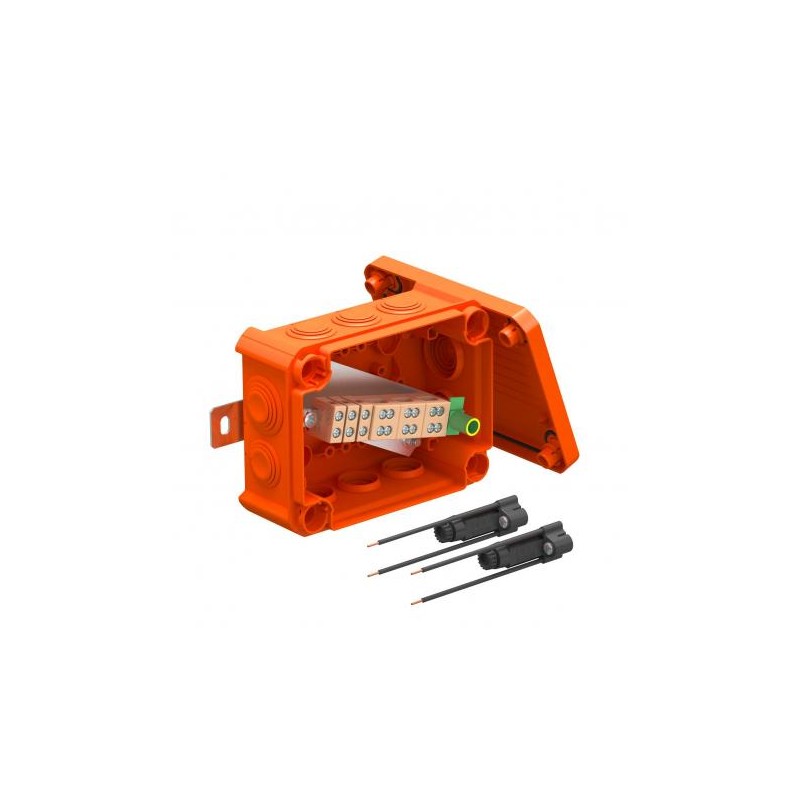

Function Maintenance Bypass Box T100ED 06A2F
FireBox T100 with plug-in seals, 2 fuse holders. Junction box with two fuse holders and soft plug-in seals. Sufficiently large wiring compartment through diagonally arranged connection unit with completely pre-mounted, high-temperature-resistant ceramic terminals. Green-yellow labelled protective conductor terminal. Fastening on easily accessible external flaps. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90. Ceramic clamps have been tested according to DIN EN 60998-2-1:2004.Including 2x MMSplus P 6x35 screw ties.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲
Halogen-free bypass box with pre-assembled flexible insertable joints, approved for the maintenance of function of electrical systems according to DIN 4102 part 12. Function maintenance classes from E30 to E90.
Color: pale orange.
Fully assembled connection unit made of special ceramic resistant to high temperatures and identified connection terminals. Supply with FUSE holders TE-FH 520 according to VDE regulations, safe without consumer reaction and 2 screwed fire protection anchors MMS 6x50 for fixation without studs to the outer flanges.
Nominal sections of the electrical cable: from 1.5 to 10 mm² depending on the model, data cable with conductors of 0.8 mm Ø. Possibility to connect several rigid copper conductors of smaller diameter in each terminal.
High degree of protection IP66, impact resistance class IK08.
Details on cable types, and manufacturers, can be found in the general construction test certificate of the MPA NRW materials testing institute, Erwitte.
| Feature Name | Feature Value |
|---|---|
| Equipped with (EF000557) | Other |
| Shape (EF000051) | Rectangular |
| Inlet from the rear (EF005604) | No |
| Length (EF001438) | 150 mm |
| Width (EF000008) | 116 mm |
| Depth (EF000049) | 67 mm |
| Connectable (EF006169) | No |
| Number of inlets (EF003593) | 10 |
| Type of housing feed-through (EF007661) | Trimmable step membrane |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Orange |
| Degree of protection (IP) (EF005474) | IP66 |
| Cover attachment (EF004586) | Screwed |
| Rated insulation voltage Ui (EF001366) | 690 V |
| Circuit integrity (EF001613) | E 90 |
| With screening (EF005032) | No |
| Weatherproof (EF005436) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN.pdf | 18 Mbytes |
|
| PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN.pdf | 12 Mbytes |
|
