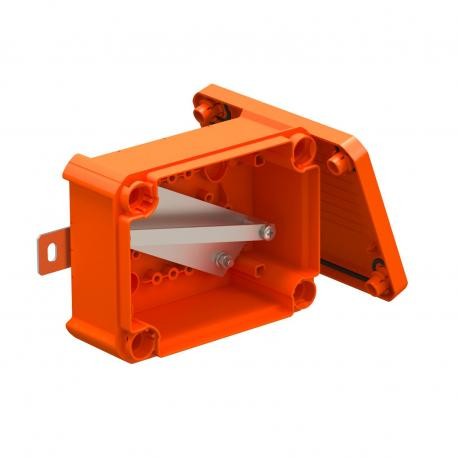

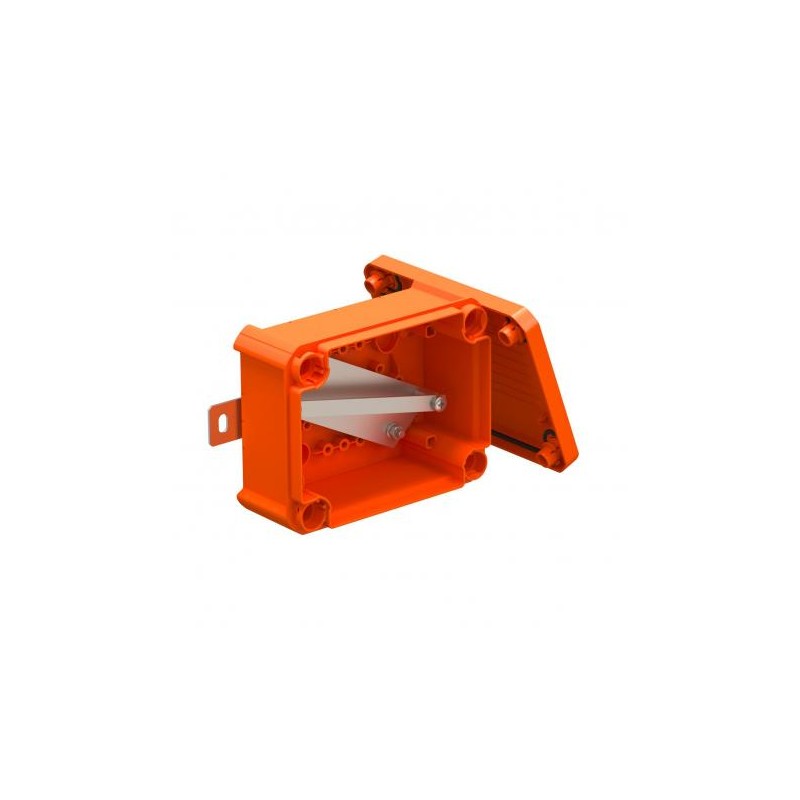

T100E 0VA 7205780 OBO BETTERMANN T100E 0VA junction box, for function maintenance 150x116x67 Polypropylene, ..
T100E 0VA
7205780
OBO BETTERMANN
T100E 0VA junction box, for function maintenance 150x116x67 Polypropylene, PP
Bypass box for function maintenance T100E 0VA
Closed FireBox T100, empty. Unequipped, closed connection or junction box for free termination with ceramic terminals and cable glands. Dimension A states the available support rail length for the wiring terminals. Sufficiently large wiring compartment through diagonally arranged support rail. Fastening on easily accessible external flaps made of stainless steel. Approved for cable systems that maintain the electrical function according to DIN 4102 Part 12 with the classes E30, E60 and E90.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲
In modern buildings, more and more is being demanded when it comes to fire safety. In order to safely meet these requirements, OBO offers the thermoplastic FireBox for the extension or bypass of specific cables for function maintenance. With the FireBox series, OBO completes its range of function maintenance systems for safety-relevant installations.
The tested and approved types T100E and T160E fulfil their function with reliability and safety. A bypass box, connection unit, two shutter discs and two anchor screws are supplied for fixing in masonry or concrete.
A highlight of OBO FireBox is the fully pre-assembled, high-temperature resistant connection unit. To this end, OBO provides solutions as a single provider.
| Feature Name | Feature Value |
|---|---|
| Equipped with (EF000557) | Support rail |
| Inlet from the rear (EF005604) | No |
| Length (EF001438) | 150 mm |
| Width (EF000008) | 116 mm |
| Depth (EF000049) | 67 mm |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Orange |
| Degree of protection (IP) (EF005474) | IP66 |
| Cover attachment (EF004586) | Screwed |
| Circuit integrity (EF001613) | E 90 |
| With screening (EF005032) | No |
