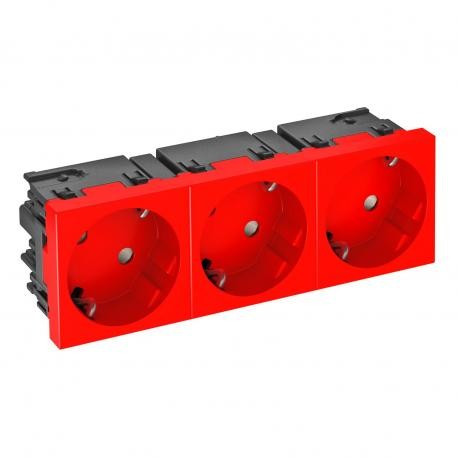

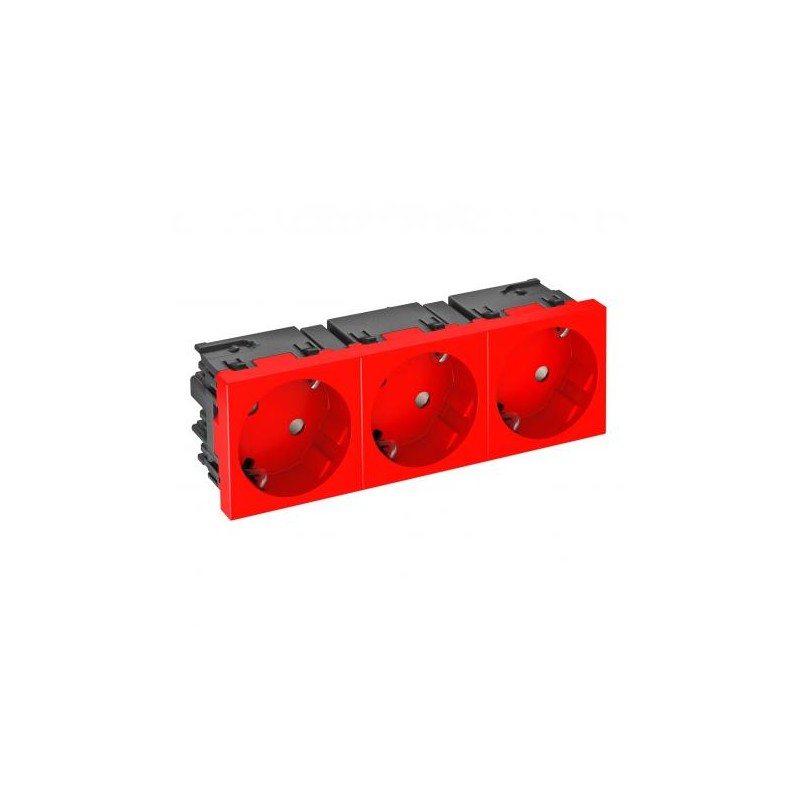

STD-D3SC SRO3 6120509 OBO BETTERMANN 33° electrical socket, triple STD-D3SC SRO3, ground connection, Connect..
STD-D3SC SRO3
6120509
OBO BETTERMANN
33° electrical socket, triple STD-D3SC SRO3, ground connection, Connect 45 250V, 10/16A Polycarbonate, PC
33° electrical outlet, triple grounding, Connect 45 STD-D3SC SRO3
Socket 33°, Connect 45, protective contact, triple. Protective contact socket triple 33°, with increased touch protection, with screwless terminals, 2-pin, 16 A, 250 V~, with connection terminals to IEC 60884-1.For installation in Rapid 45 ducts, device installation ducts, installation columns, underfloor systems and Deskboxes.
EGS device systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Closable | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,391 kg CO2e / 1 Piece |
| Coding | no |
| Colour | Signal red; RAL 3001 |
| Connection type | Screwless terminal |
| Cover | Central plate |
| Depth | 40 mm |
| Dimension | 250V, 10/16A |
| Ejection mechanism | no |
| Error current protection | no |
| Fastening type | Lock |
| For more difficult conditions (according to VDE) | no |
| Halogen-free | yes |
| Height | 45 mm |
| Hinged cover | no |
| increased touch protection | yes |
| Insulated installation | no |
| Labelling panel | no |
| Material | Polycarbonate |
| Mounting type | Device installation duct |
| Nominal current | 16 A |
| Nominal voltage | 250 V |
|---|---|
| Number of poles | 2 |
| Number of units | 3 |
| Operating temperature, max. | 40 °C |
| Operating temperature, min. | -5 °C |
| Printed label/coding | Without printing |
| Protection rating | Other |
| Rotated central insert | yes |
| Socket angle | 33° |
| Socket version | Protective contact |
| Special power supply | Without special power supply |
| Surface version | Matt |
| Surge protection | no |
| Transparent | no |
| Version for | triple 33° |
| Warning light | no |
| Width | 135 mm |
| With fine-wire fuse | no |
| With functional lighting | no |
| With on/off switch | no |
| With orientation lighting | no |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| With signal lamp (EF000198) | No |
| Number of modules (module system) (EF009573) | 0 |
| Number of socket outlets switchable (EF008814) | 0 |
| Imprint/indication (EF003823) | None |
| Connection type (EF000124) | Screwless terminal |
| With hinged lid (EF000117) | No |
| With enhanced contact protection (EF000389) | Yes |
| Label space/information surface (EF001035) | No |
| Colour (EF000007) | Red |
| RAL-number (similar) (EF003882) | 3001 |
| Transparent (EF006243) | No |
| Lockable (EF000113) | No |
| Eject-mechanism (EF001051) | No |
| Insulated mounting (EF001588) | No |
| With function lighting (EF008861) | No |
| With orientation lighting (EF008862) | No |
| Over voltage protection (EF001332) | No |
| Fault current protection (EF001333) | No |
| With miniature fuse (EF006571) | No |
| Special power supply (EF001334) | EV006426 |
| Mounting method (EF000003) | Trunking mounted |
| Type of fastening (EF002442) | Snap mounting (engagement) |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | Yes |
| With on/off switch (EF000488) | No |
| Rotated central insert (EF001331) | Yes |
| Nominal current (EF000001) | 16 A |
| Nominal voltage (EF000002) | 250 V |
| Suitable for degree of protection (IP) (EF006755) | Other |
| Device width (EF008808) | 135 mm |
| Device height (EF008809) | 45 mm |
| Device depth (EF008810) | 40 mm |
