OBO BETTERMANNTBS Transient and lightning protection systems - OBO BETTERMANNSPT-TR-Trigger 5092787 OBO BETTERMANN POP SPT-TR-Trigger surge protector, 3+NPE Permanent+Transit. FS 400V

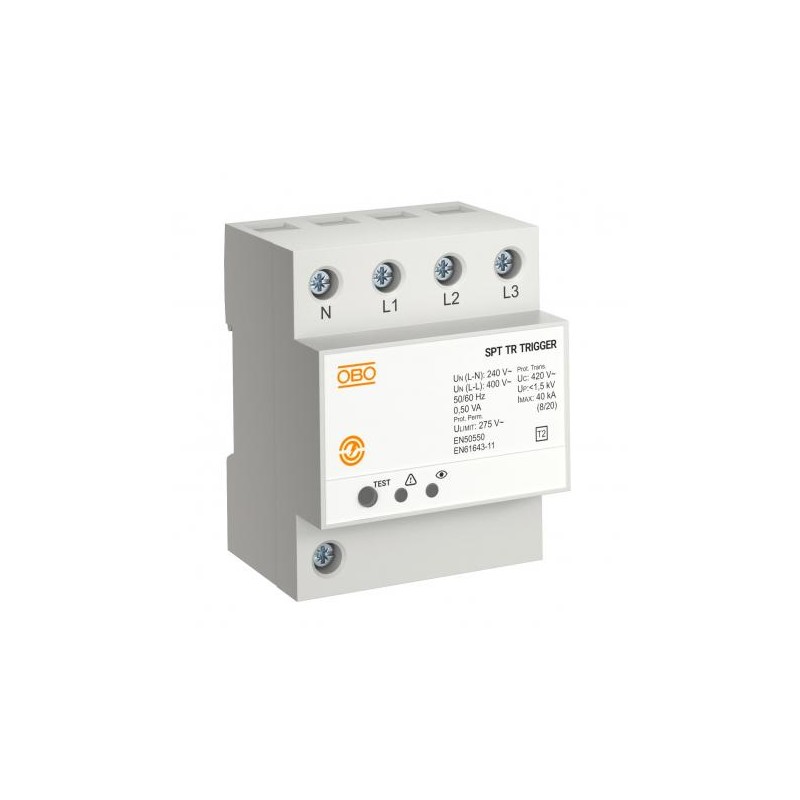

OBO BETTERMANN SPT-TR-Trigger 5092787 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

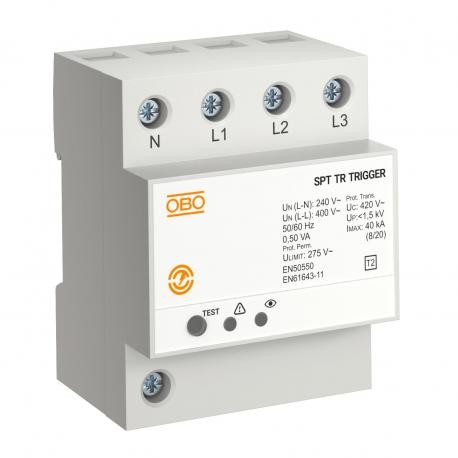

SPT-TR-Trigger 5092787 OBO BETTERMANN POP SPT-TR-Trigger surge protector, 3+NPE Permanent+Transit. FS 400V

Reference: SPT-TR-Trigger

Code: 5092787

Manufacturer: OBO BETTERMANN

Description:

POP SPT-TR-Trigger surge protector, 3+NPE Permanent+Transit. FS 400V
Permanent and Transient Three-phase Trigger SPT-TR Trigger 3+Permanent NPE+Transient FS
Permanent POP and Transient Overvoltage Protector

Categories:

  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 157,51 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

  • Comunidad Europea, Declaración de conformidad según las directivas de la CE
  • Dispositivo de protección según la norma UNE EN 61643-11 o IEC 61643-11
  • Transición entre las zonas LPZ 1 a 2
  • Installation, electrotechnical expertise
  • Señalización remota
Protector against transient and permanent overvoltages. For three-phase lines. Power supply at 240/400VAC. Can be associated with a 240VAC maximum/emission coil or contactor.

Protector against permanent overvoltages caused by increases in mains voltage, and transient overvoltages caused by lightning strikes or mains switching, in three-phase installations, associateable with any IGA or moulded box on the market by means of the appropriate tripping device.

POP according to UNE-EN 50550 and IEC 63052.

ETIM for 5092787 Earthing, lightning and surge protection (EC000941)

Feature nameMax. discharge surge current (8/20) (EF012274)
Feature value40 kA
Feature nameNominal voltage AC (EF004220)
Feature value240 V
Feature nameVoltage protection level (EF003525)
Feature value1.5 kV
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameConstruction size (EF002566)
Feature value4 modular spacing
Feature nameSignalling at the device (EF004241)
Feature valueOptic
Feature nameCategory type 2 (EF004230)
Feature valueYes
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE SURGE PROTECTION OBO EN
24 Mbytes
