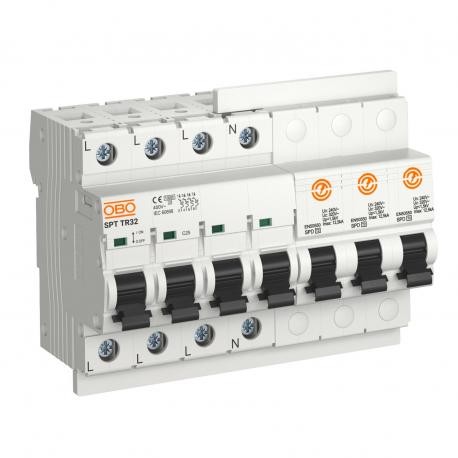

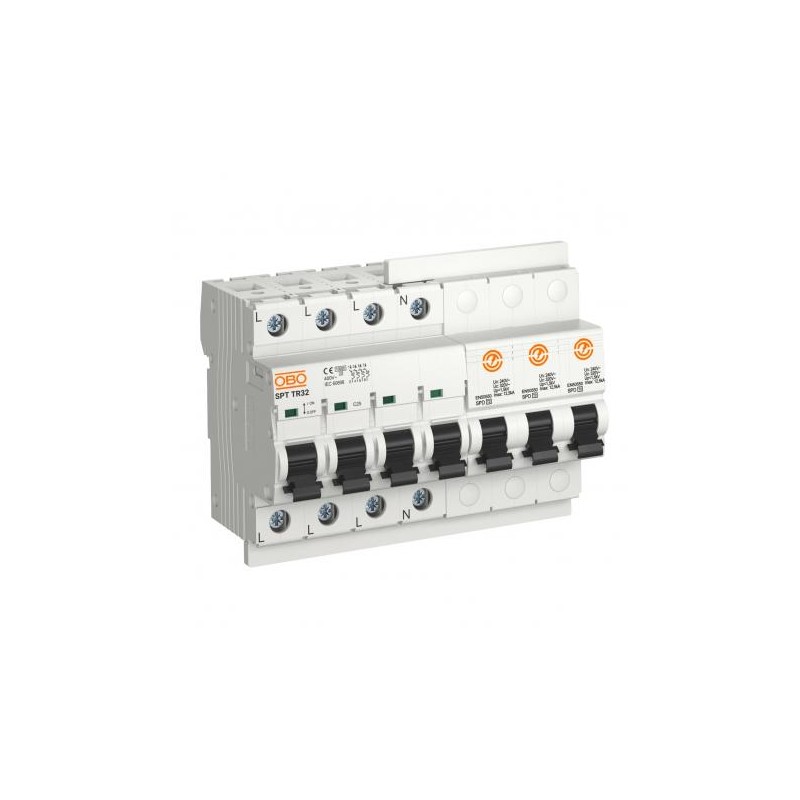

SPT-TR-32 5092797 OBO BETTERMANN POP SPT-TR-32 Surge Protector, 3+NPE Permanent + Transient 32A
SPT-TR-32
5092797
OBO BETTERMANN
POP SPT-TR-32 Surge Protector, 3+NPE Permanent + Transient 32A
Permanent and Transient Three-phase Protector 32A SPT-TR 32 3+Permanent NPE + Transient
Permanent POP and Transient Overvoltage Protector
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Best sellers
▲More info
▲
Protector against permanent overvoltages caused by increases in mains voltage, and transient overvoltages caused by lightning strikes or network switching, in three-phase installations.
Formed by IGA + three trigger coils + Type 2 discharger.
POP according to UNE-EN 50550 and IEC 63052.
| Feature Name | Feature Value |
|---|---|
| Nominal discharge surge current (8/20) (EF004214) | 6 kA |
| Max. discharge surge current (8/20) (EF012274) | 12.5 kA |
| Nominal voltage AC (EF004220) | 240 V |
| Voltage protection level (EF003525) | 1.5 kV |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Construction size (EF002566) | 7 modular spacing |
| Category type 2 (EF004230) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
