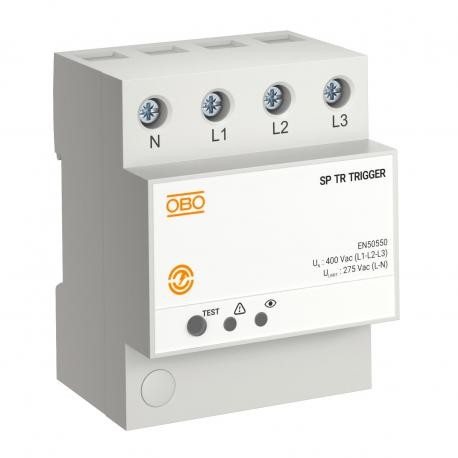

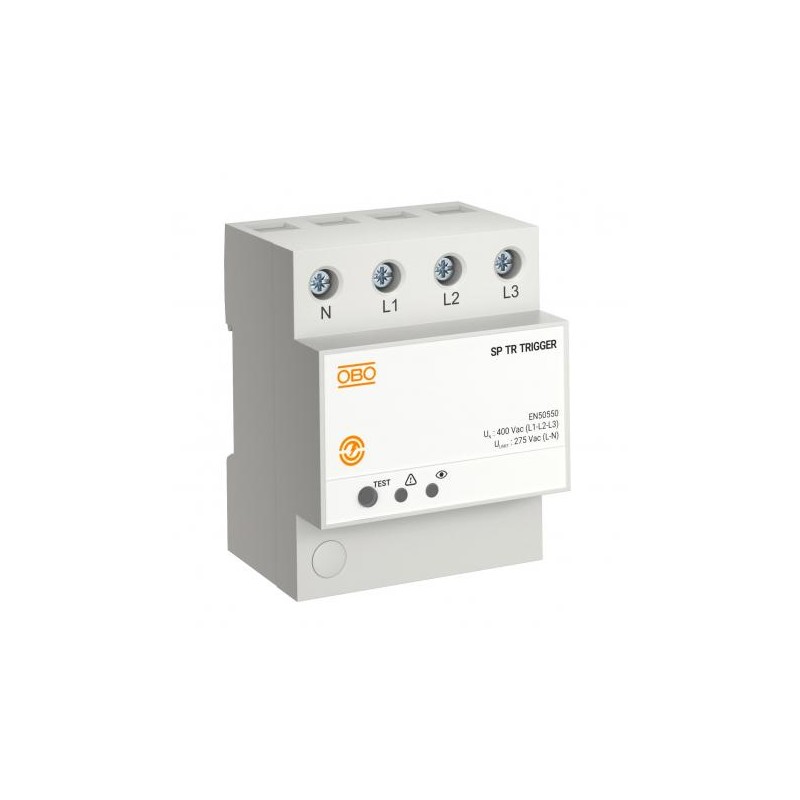

SP-TR-Trigger 5092785 OBO BETTERMANN POP SP-TR-Trigger Surge Protector, 3+N Permanent FS 400V

Reference: SP-TR-Trigger

Code: 5092785

Manufacturer: OBO BETTERMANN

Description:

POP SP-TR-Trigger Surge Protector, 3+N Permanent FS 400V
Permanent Three-phase Trigger SP-TR Trigger 3+NPE Permanent FS
POP Permanent Surge Protector

Categories:

  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 124,37 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

  • Comunidad Europea, Declaración de conformidad según las directivas de la CE
  • Installation, electrotechnical expertise
  • Señalización remota
Permanent surge arrester. For three-phase conductors. Power supply with 400 VAC It can be connected to a coil or contactor with a maximum of 240 VAC.
A protection device against permanent overvoltages caused by an increase in mains voltage in three-phase installations. The surge protection device can be connected to any commercially available IGA or molded case.
POP according to UNE-EN 50550 and IEC 63052.

ETIM for 5092785 Earthing, lightning and surge protection (EC000941)

Feature nameNominal voltage AC (EF004220)
Feature value240 V
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
Feature nameConstruction size (EF002566)
Feature value4 modular spacing
Feature nameSignalling at the device (EF004241)
Feature valueOptic
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
