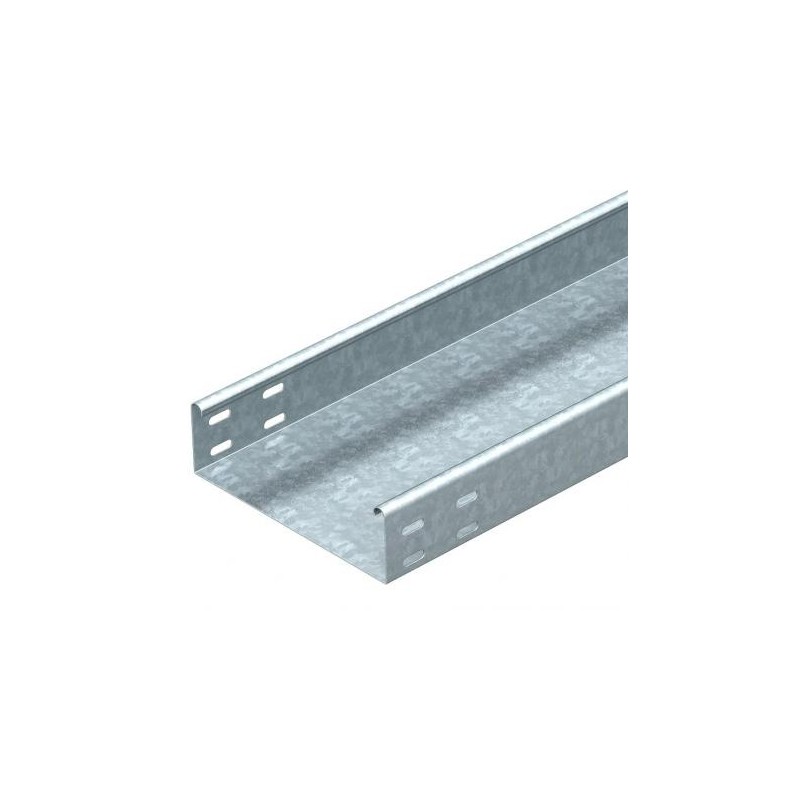

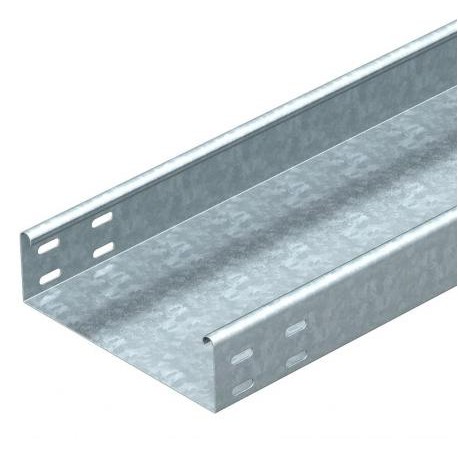

SKSU 660 FS 6063276 OBO BETTERMANN CABLE TRAY SKSU SKSU 660 FS
SKSU 660 FS
6063276
OBO BETTERMANN
3 m.
CABLE TRAY SKSU SKSU 660 FS
SKSU SKSU 660 FS cable tray, without perforation, with needle. 60x600x3000 Steel, St, galvanized strip, DIN EN 10346
Cable tray SKSU 60 FS. SKS 60 = heavy-duty cable tray system, unperforated, with 60 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 19,6252 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x600x3000 |
| Dimension | 60 x 600 |
| Dimension B | 600 mm |
| Height | 60 mm |
| Height | 2 in |
| Length | 10 ft |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 0,06 in |
| Plate thickness | 1,5 mm |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | no |
| Support spacing 1.5 m | 2,6 kN/m |
| Support spacing 2.0 m | 1,9 kN/m |
| Support spacing 2.5 m | 1,1 kN/m |
| Support spacing 3.0 m | 0,55 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 358 cm² |
| Usable cross-section | 35800 mm² |
| Wide-span version | no |
| Width | 600 mm |
| Width | 24 in |
| With cover | no |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 600 mm |
| Material thickness (EF000386) | 1.5 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 35800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 8.77 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 2600 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1900 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1100 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 550 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
