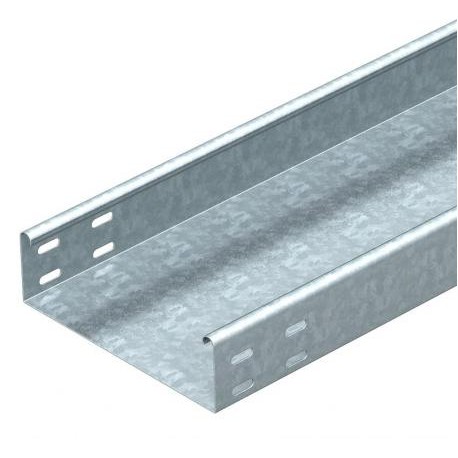

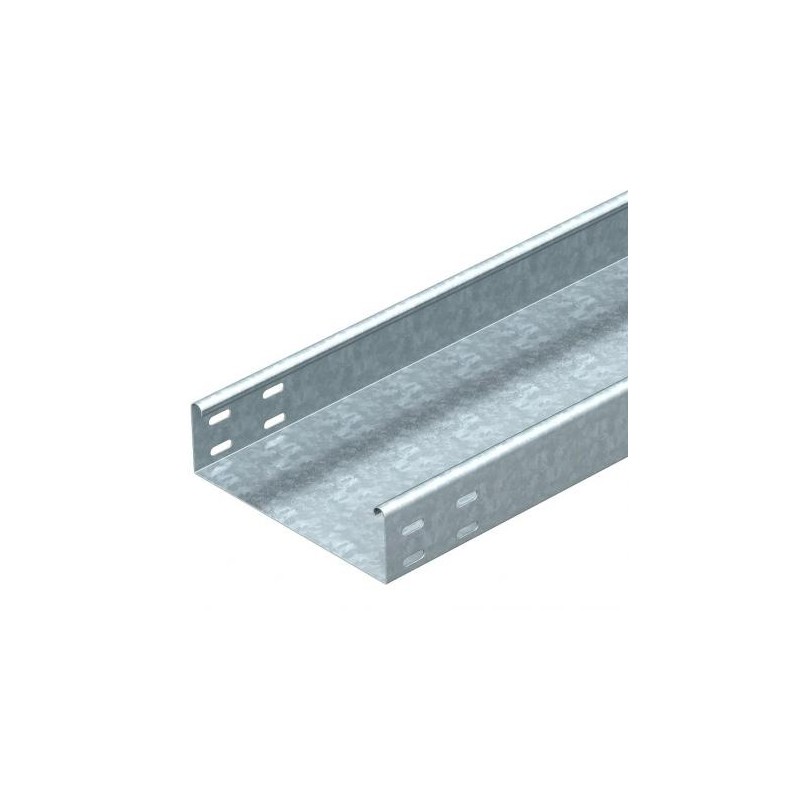

SKSU 630 FT 6064409 OBO BETTERMANN CABLE TRAY SKSU SKSU 630 FT
SKSU 630 FT
6064409
OBO BETTERMANN
3 m.
CABLE TRAY SKSU SKSU 630 FT
SKSU tray, without drill.,with aguj. bonding, 60x300x3000, hot dip galvanized steel, DIN EN ISO 1461
Cable tray SKSU 60 FT. SKS 60 = heavy-duty cable tray system, unperforated, with 60 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 11,5362 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x300x3000 |
| Dimension B | 300 mm |
| Height | 60 mm |
| Height | 2 in |
| Length | 3000 mm |
| Length | 10 ft |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Plate thickness | 0,06 in |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | no |
| Support spacing 1.5 m | 2,6 kN/m |
| Support spacing 2.0 m | 1,9 kN/m |
| Support spacing 2.5 m | 1,1 kN/m |
| Support spacing 3.0 m | 0,55 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 17800 mm² |
| Usable cross-section | 178 cm² |
| Wide-span version | no |
| Width | 12 in |
| Width | 300 mm |
| With cover | no |
Datasheet - PDF
