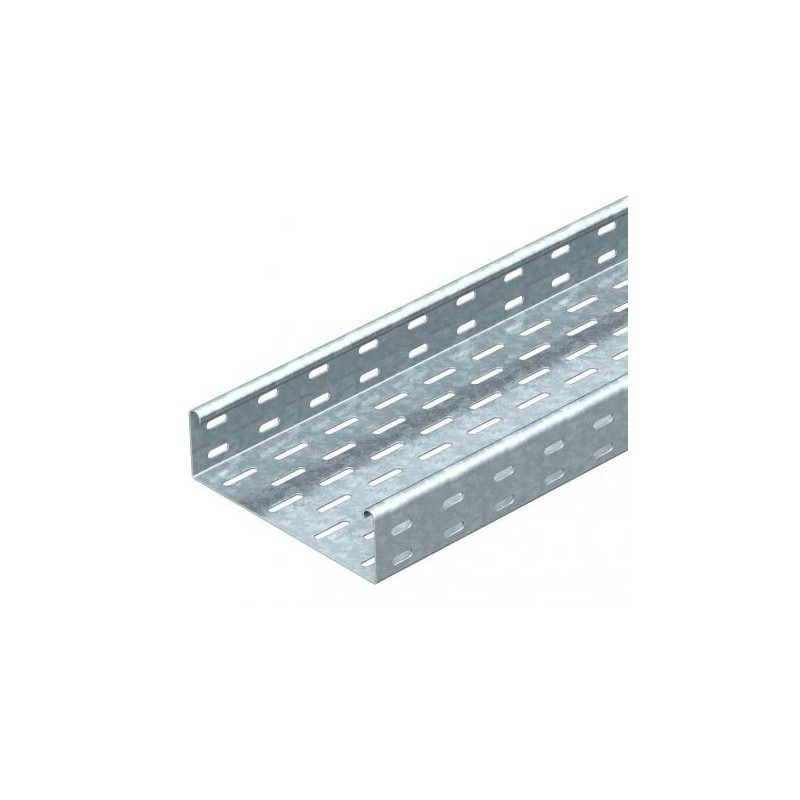

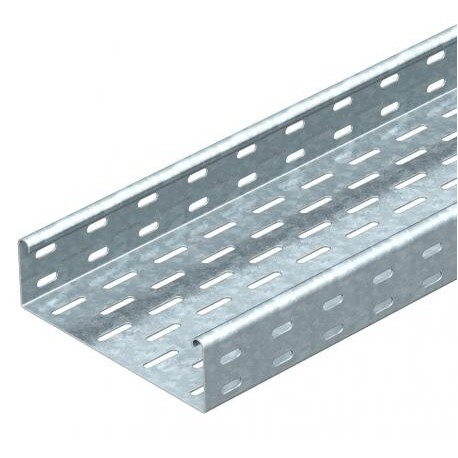

SKS 620 FT 6056652 OBO BETTERMANN CABLE TRAY SKS SKS 620 FT
SKS 620 FT
6056652
OBO BETTERMANN
3 m.
CABLE TRAY SKS SKS 620 FT
SKS cable tray, perforated, 60x200x3000, hot dip galvanized steel, DIN EN ISO 1461
Cable tray SKS 60 FT. SKS 60 = Heavy-duty cable tray system with 60 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 8,7692 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60 x 200 |
| Dimension | 60x200x3000 |
| Dimension B | 200 mm |
| Dimension W | 200 mm |
| Fire protection | Maintenance of electrical function of standard support structure |
| Height | 2 in |
| Height | 60 mm |
| Length | 10 ft |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | yes |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
|---|---|
| Plate thickness | 0,06 in |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 2,65 kN/m |
| Support spacing 2.0 m | 1,8 kN/m |
| Support spacing 2.5 m | 1,15 kN/m |
| Support spacing 3.0 m | 0,5 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 11800 mm² |
| Usable cross-section | 118 cm² |
| Wide-span version | no |
| Width | 200 mm |
| Width | 8 in |
| With cover | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
