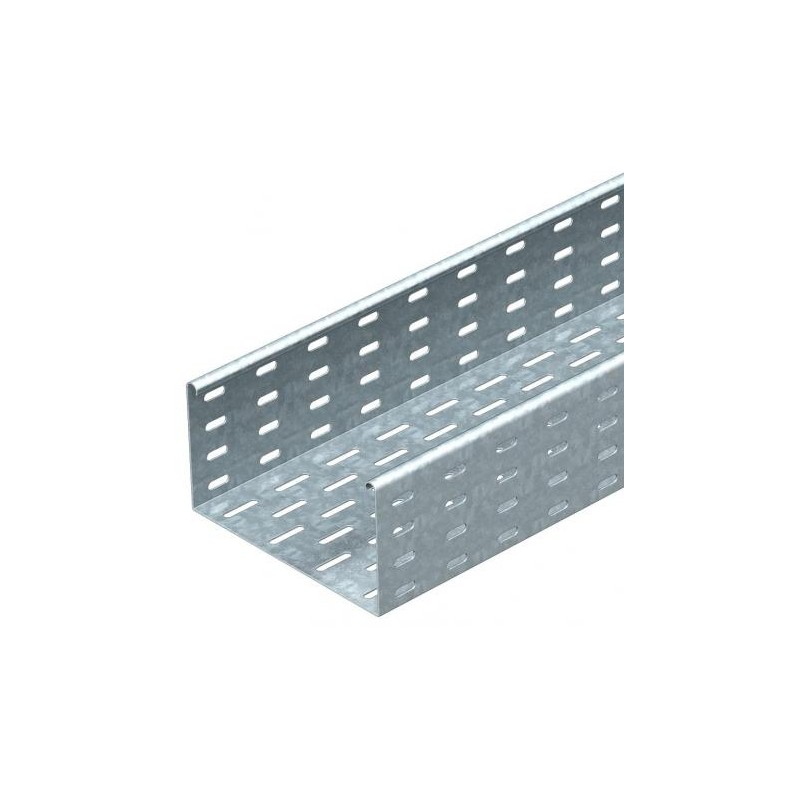

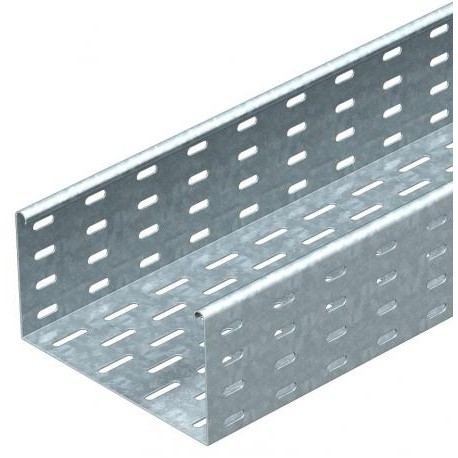

SKS 150 FT 6061702 OBO BETTERMANN CABLE TRAY SKS SKS 150 FT
SKS 150 FT
6061702
OBO BETTERMANN
3 m.
CABLE TRAY SKS SKS 150 FT
Cable tray SKS 110 FT. SKS 110 = heavy-duty cable tray system with 110 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 18,8563 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110x500x3000 |
| Dimension | 110 x 500 |
| Dimension W | 500 mm |
| Height | 110 mm |
| Height | 4 in |
| Length | 10 ft |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Plate thickness | 0,06 in |
| Rustproof steel, pickled | no |
|---|---|
| Side perforation | yes |
| Support spacing 1.5 m | 3 kN/m |
| Support spacing 2.0 m | 2,4 kN/m |
| Support spacing 2.5 m | 1,76 kN/m |
| Support spacing 3.0 m | 1,2 kN/m |
| Support spacing 3.5 m | 0,84 kN/m |
| Support spacing 4.0 m | 0,8 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 548 cm² |
| Usable cross-section | 54800 mm² |
| Wide-span version | no |
| Width | 500 mm |
| Width | 20 in |
| With cover | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
