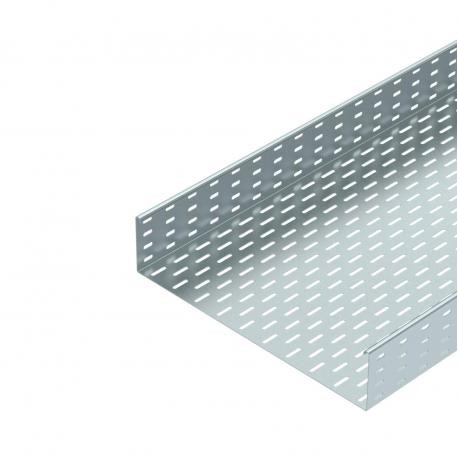

SKS 150 FS 6061508 OBO BETTERMANN CABLE TRAY SKS SKS 150 FS
SKS 150 FS
6061508
OBO BETTERMANN
3 m.
CABLE TRAY SKS SKS 150 FS

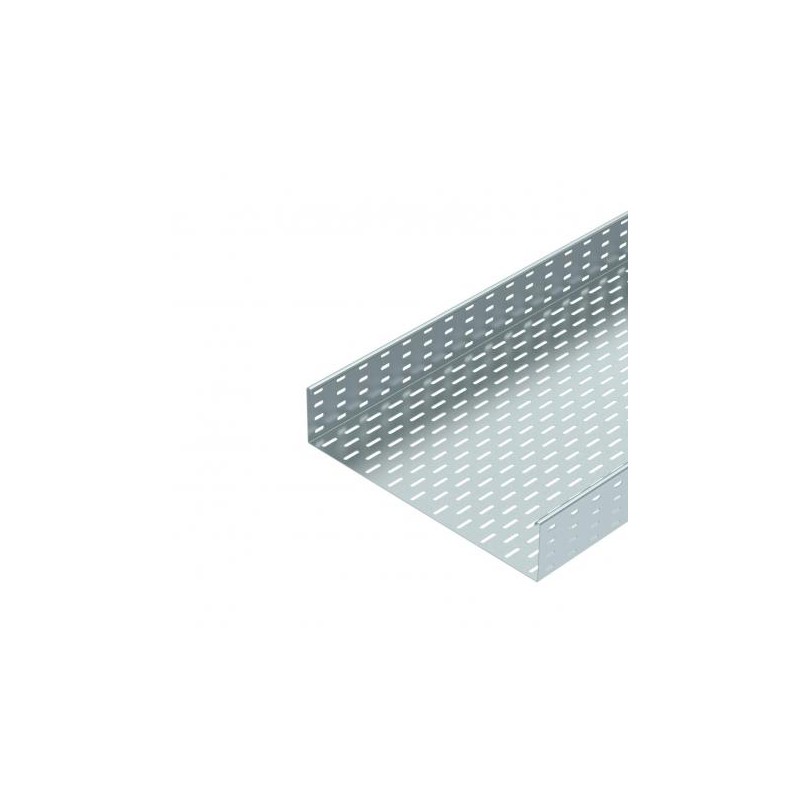

SKS cable tray, perforated, with joint set, 110x500x3000, galvanized steel in band, DIN EN 10346
Cable tray SKS 110 FS. SKS 110 = heavy-duty cable tray system with 110 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 20,2614 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110x500x3000 |
| Dimension | 110 x 500 |
| Dimension W | 500 mm |
| Height | 110 mm |
| Height | 4 in |
| Length | 3000 mm |
| Length | 10 ft |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Plate thickness | 0,06 in |
| Rustproof steel, pickled | no |
|---|---|
| Side perforation | yes |
| Support spacing 1.5 m | 3 kN/m |
| Support spacing 2.0 m | 2,4 kN/m |
| Support spacing 2.5 m | 1,76 kN/m |
| Support spacing 3.0 m | 1,2 kN/m |
| Support spacing 3.5 m | 0,84 kN/m |
| Support spacing 4.0 m | 0,8 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 54800 mm² |
| Usable cross-section | 548 cm² |
| Wide-span version | no |
| Width | 500 mm |
| Width | 20 in |
| With cover | no |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 110 mm |
| Width (EF000008) | 500 mm |
| Material thickness (EF000386) | 1.5 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 54800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 7.8 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 3000 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 2400 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1760 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 1200 |
| Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) | 800 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
