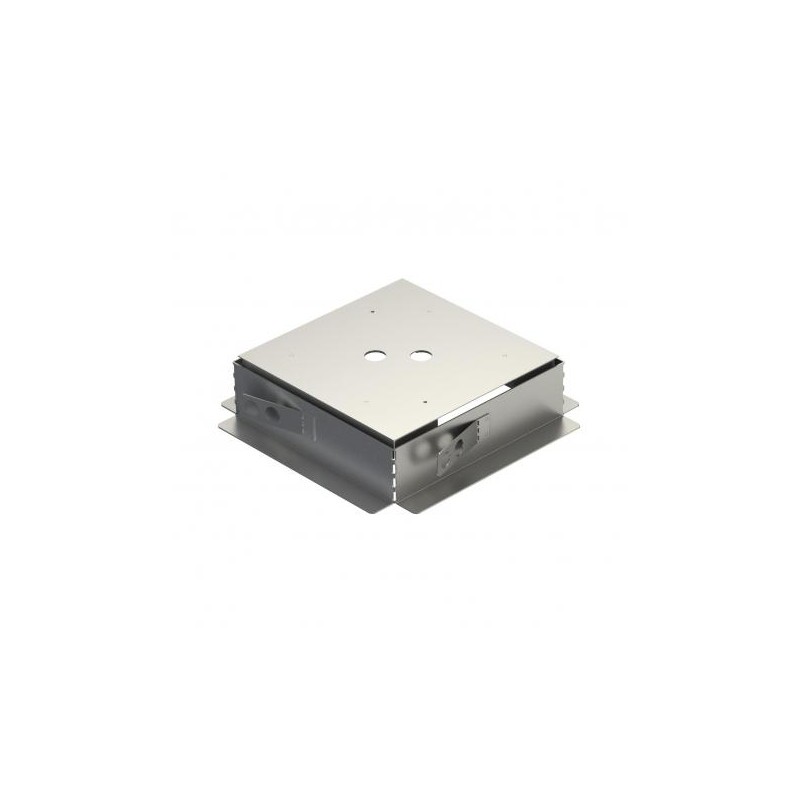

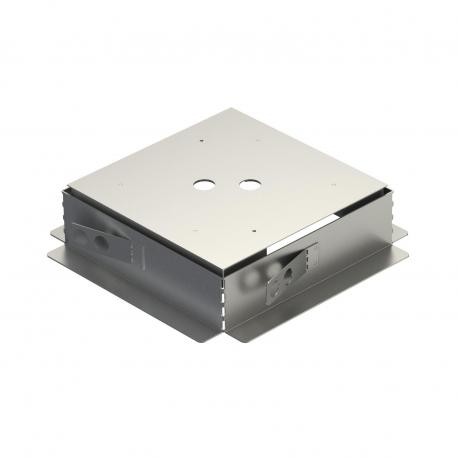

SK RK4 7404380 OBO BETTERMANN BODY TO FRAMES
Reference: SK RK4
Code: 7404380
Manufacturer: OBO BETTERMANN
Description:
BODY TO FRAMES
Body for frames, for continuous floors, 253x253x55, galvanized steel in band, DIN EN 10346
Terrazzo lined body for height-adjustable cassettes, nominal size 4. Lined body, suitable for polishing, for the direct and jointless installation of height-adjustable cassettes, nominal size 4, into surface-finished screeds/terrazzo floorings. The casing is laid floatingly onto underfloor boxes with mounting lids of nominal size 4, closing the gaps between underfloor box and cassette frame. The protection cover made from aluminium sheet is put into the cassette frame as a dummy before the screed work is done and can be polished over with the screed or terrazzo.
Categories:
- Sub-floor systems > Form dummy for underfloor installation
- OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
- More Info
- ETIM
- Reviews
LAST VIEWED
MORE INFO
| CO2 Footprint (GWP) Cradle-to-Gate | 6,2323 kg CO2e / 1 Piece |
|---|---|
| Dimension | 253x253x55 |
| Dimension A | 253 mm |
| Dimension a | 198 mm |
| Dimension h | 55 mm |
| Floor height, max. | 200 mm |
| Floor height, min. | 130 mm |
| Height | 55 mm |
|---|---|
| Length | 198 mm |
| Material | Steel |
| Nominal size for device installation units | 4 |
| Surface | Strip galvanized |
| Width | 198 mm |
ETIM for 7404380 Underfloor trunking and floor boxes (EC002418)
Feature name
Feature value
Feature nameShape (EF000051)
Feature valueSquare
Feature nameLength (EF001438)
Feature value198 mm
Feature nameWidth (EF000008)
Feature value198 mm
Feature nameHeight (EF000040)
Feature value55 mm
