RLVK 35 FT 6067301 OBO BETTERMANN UNION STRAIGHT RLVK 35 FT
RLVK 35 FT
6067301
OBO BETTERMANN
10

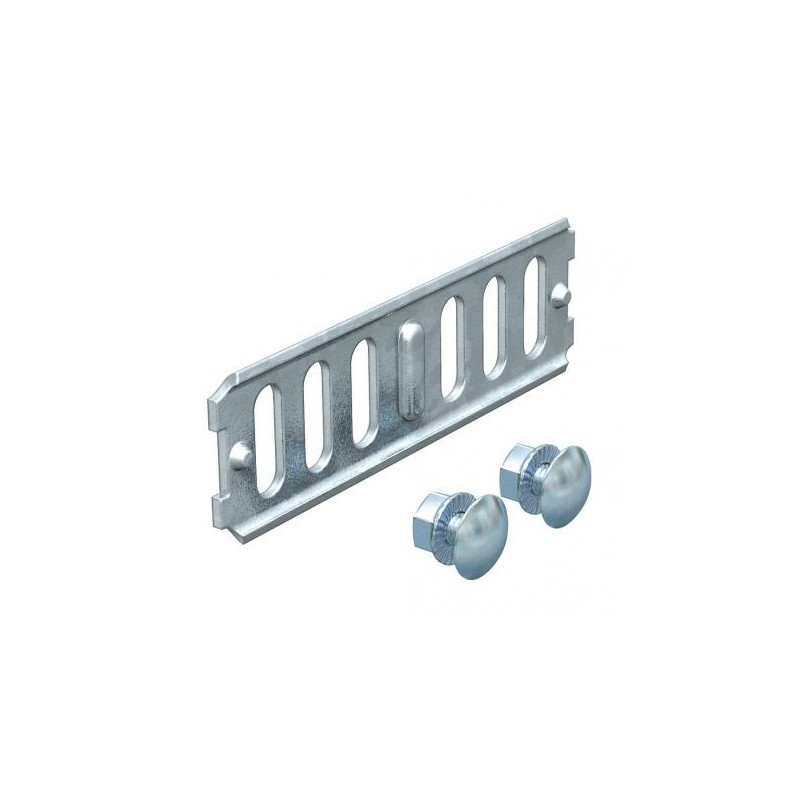

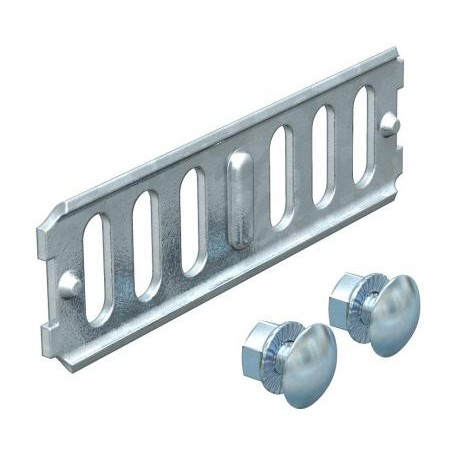

UNION STRAIGHT RLVK 35 FT
Straight union RLVK 35 FT, for cable tray 35x100 Steel, St, Hot dip galvanized, DIN EN ISO 1461
Straight connector FT. Straight connector for connections of cable trays and fittings with a side height of 35 mm.
Cable carrying systems > Connector for cable support system
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Adjustable connector, horizontal | no |
|---|---|
| Articulated connector, vertical | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1401 kg CO2e / 1 Piece |
| Colour | zinc |
| Connection type | Screw connector |
| Dimension | 35x100 |
| Dimension | 100 x 31 |
| Height | 1 in |
| Height | 31 mm |
| Length | 100 mm |
| Maintain electrical functions | no |
| Material | Steel |
|---|---|
| Plate thickness | 2 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for cable tray system height | 35 mm |
| Suitable for mesh cable tray | no |
| Surface | Hot-dip galvanised |
| Version for | Straight connector |
| Width | 3,5 mm |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Straight joint |
| Hinged joint horizontal (EF006392) | No |
| Hinged joint vertical (EF006393) | No |
| Type of connection (EF000064) | Screw connector |
| Suitable for wire mesh tray (EF005163) | No |
| Suitable for cable ladder (EF005165) | No |
| Suitable for cable tray (EF005166) | Yes |
| Suitable for cable support system height (EF015698) | 35 mm |
| Length (EF001438) | 100 mm |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Hot dip galvanized |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
