RKR2 9V 20 7409128 OBO BETTERMANN SET COVER AND FRAME ROUND RKR2 9V 20
RKR2 9V 20
7409128
OBO BETTERMANN
SET COVER AND FRAME ROUND RKR2 9V 20

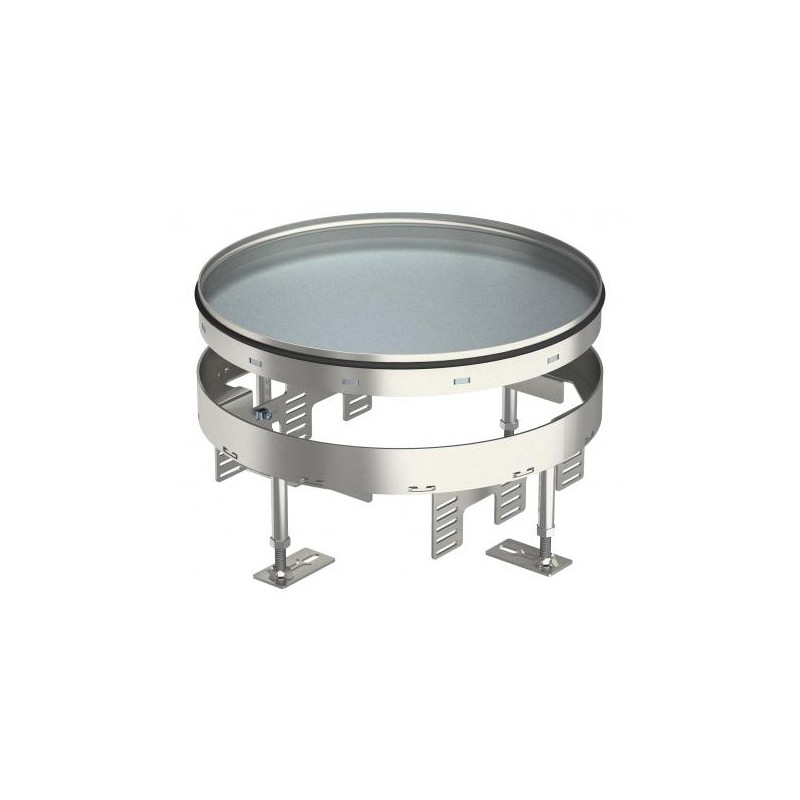

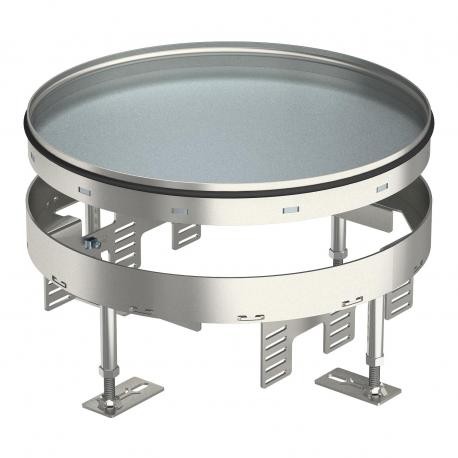

RKR2 9V 20 round lid and frame set, blind Ø305mm Stainless steel 1.4301, A2, 1.4301,
RKR2 9V 20 7409128 Height-adjustable cassette for inspection opening, RKR, stainless steel
Sub-floor systems > Levelling cassette for duct mounting, raised and underfloor installation
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Best sellers
▲More info
▲Height-adjustable "blank" cassette for the creation of an inspection opening of nominal size R9 in dry or wet-cleaned floors. Only suitable for smooth floor coverings.
| Type | RKR2 9V 20 |
| Nominal size | R9 |
| Dimen- sion h mm | 105 |
| Floor covering thickness mm | 20 |
| Floor height mm | 105-155 |
| Pack. pcs | 1 |
| Weight kg/100 pcs. | 453,000 |
| Item No. | 7409128 |
| Feature Name | Feature Value |
|---|---|
| Min. built-in depth (EF005027) | 105 mm |
| Levelling height (EF007999) | 105 mm |
| Floor maintenance (EF004546) | Wet |
| Model (EF000010) | Round |
| Material (EF002169) | Stainless steel |
| Number of conduit outlets (EF004424) | 0 |
| Chassis part for device cups (EF004750) | No |
| Built-in diameter (EF000943) | 305 mm |
| Number of appliances to build in (EF000219) | 0 |
| Number of device cups (EF000436) | 3 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
