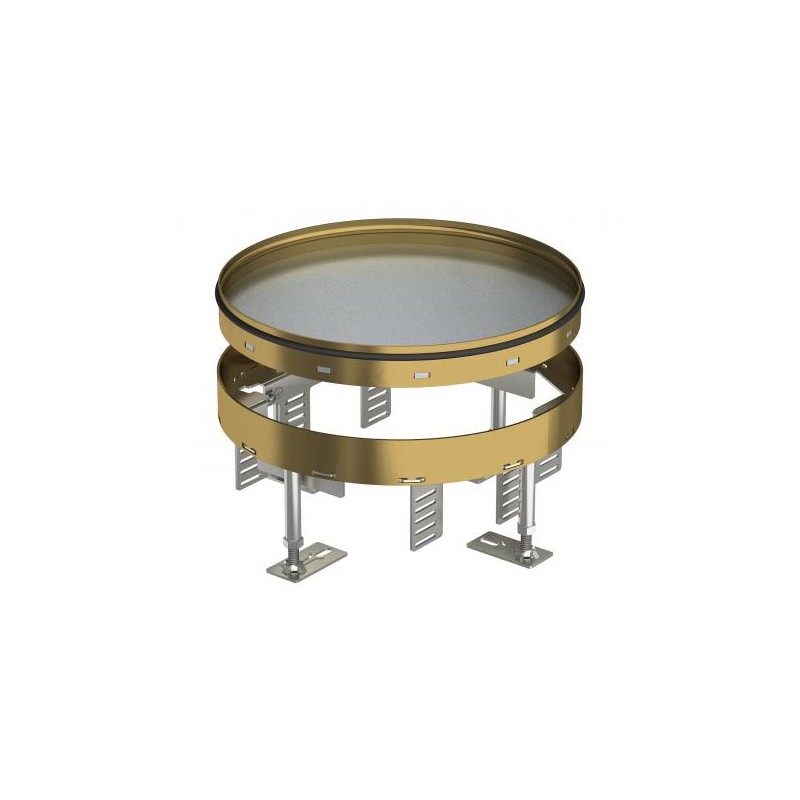

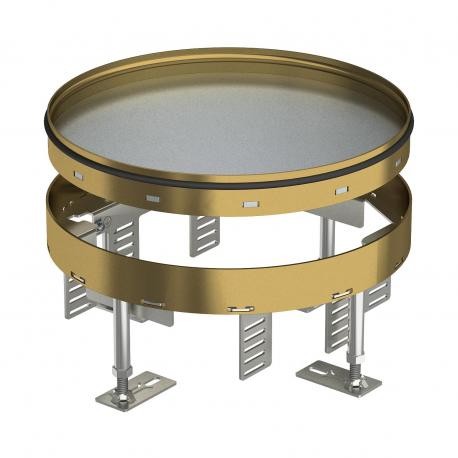

RKR2 7M 25 7409104 OBO BETTERMANN SET COVER AND FRAME ROUND RKR2 7M 25
RKR2 7M 25
7409104
OBO BETTERMANN
SET COVER AND FRAME ROUND RKR2 7M 25
Height-adjustable cassette for inspection opening, RKR, brass. Height-adjustable "blank" cassette for the creation of an inspection opening of nominal size R7 in dry or wet-cleaned floors for indoor use. Only suitable for smooth floor coverings.Height-adjustable cassette as a blind cassette, 3-compartment. 2 APMT2 cover plates and 1 APMT5 cover plate can be installed. For the installation of 2 UT4 universal supports and one UT3 universal support for 7 individual installation devices with support ring/support clamp or 10 Modul 45 devices.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | No cable outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 11,9161 kg CO2e / 1 Piece |
| Decouplable | no |
| Device support to accept mounting boxes | no |
| Dimension | Ø275mm |
| Floor care | Wet |
| Floor covering thickness | 25 mm |
| Floor height, max. | 155 mm |
| Floor height, min. | 105 mm |
| Heavy-duty version | no |
| Height-adjustment range, max. | 155 mm |
| Height-adjustment range, min. | 105 mm |
| Installation depth | 105 mm |
| Installation diameter | 275 |
| Installation system type | UT3 / UT4 |
|---|---|
| Length | 274 mm |
| Material | Brass |
| Nominal size for device installation units | R7 |
| Number of mounting boxes | 3 |
| Protection rating (IP) when unused | IP44 |
| Protection rating (IP) when used | IP00 |
| Protection rating IK code | IK10 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Version for | Round |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 274 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
