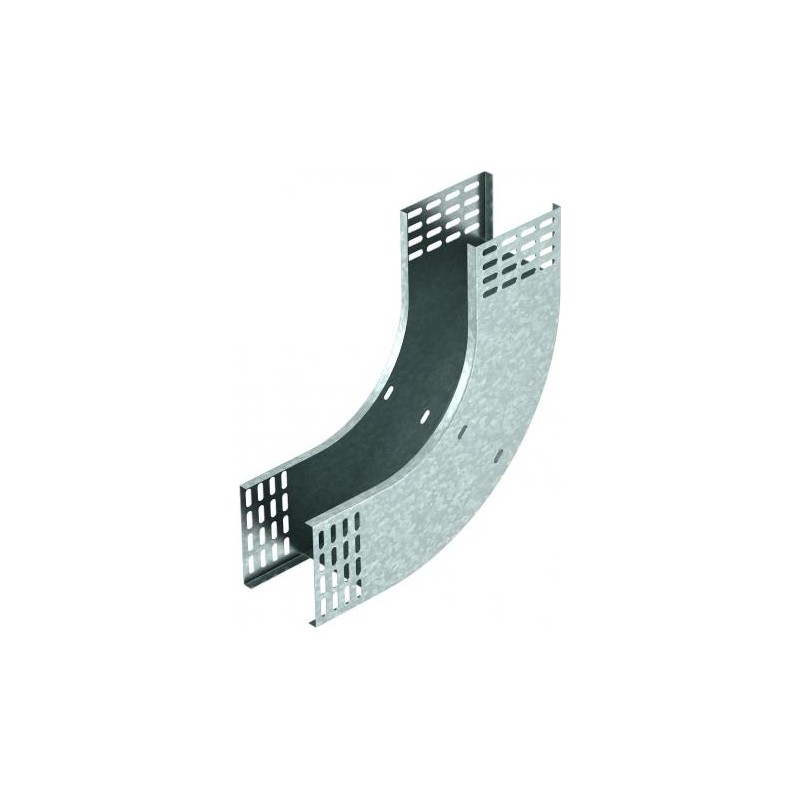

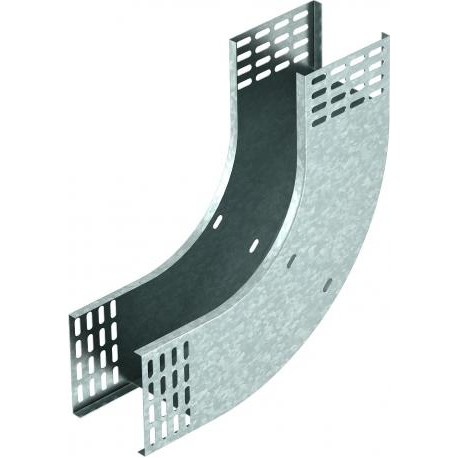

RBV 155 S FS 7007330 OBO BETTERMANN VERTICAL BEND 90° RBV 155 S FS
RBV 155 S FS
7007330
OBO BETTERMANN
VERTICAL BEND 90° RBV 155 S FS
Vertical curve 90° RBV 155 S FS, ascending 110x550 Steel, St, strip galvanized, DIN EN 10346
RBV 155 S FS 7007330 90° vertical bend, rising FS
Cable carrying systems > Bend for cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Best sellers
▲More info
▲The vertical bend is pushed over the end of the cable tray and screwed tight.
| Type | RBVÂ 155Â SÂ FS |
| Side height mm | 110 |
| Dimen- sion B mm | 550 |
| Pack. pcs | 1 |
| Weight kg/100 pcs. | 260,400 |
| Item No. | 7007330 |
| Feature Name | Feature Value |
|---|---|
| Change of direction (EF005210) | Rising vertically |
| Angle (EF001218) | 90° |
| Suitable for cable tray height (EF004822) | 110 mm |
| Suitable for cable tray width (EF004820) | 550 mm |
| Material thickness (EF000386) | 1 mm |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Pre-galvanised |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
