OBO BETTERMANNTBS Transient and lightning protection systems - OBO BETTERMANNPS3-B+C TNC 5089754 OBO BETTERMANN SET PROTECTION TYPE 1+2 PS3-B+C TNC

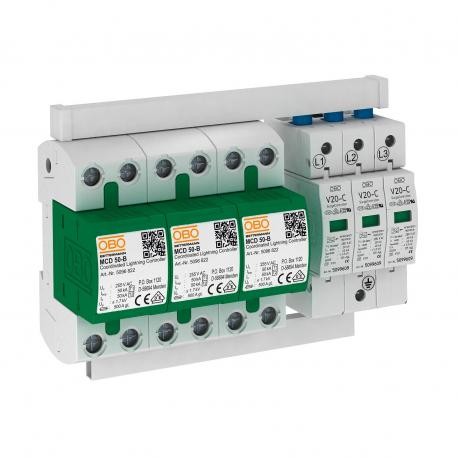

OBO BETTERMANN PS3-B+C TNC 5089754 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

PS3-B+C TNC 5089754 OBO BETTERMANN SET PROTECTION TYPE 1+2 PS3-B+C TNC

Reference: PS3-B+C TNC

Code: 5089754

Manufacturer: OBO BETTERMANN

Description:

SET PROTECTION TYPE 1+2 PS3-B+C TNC

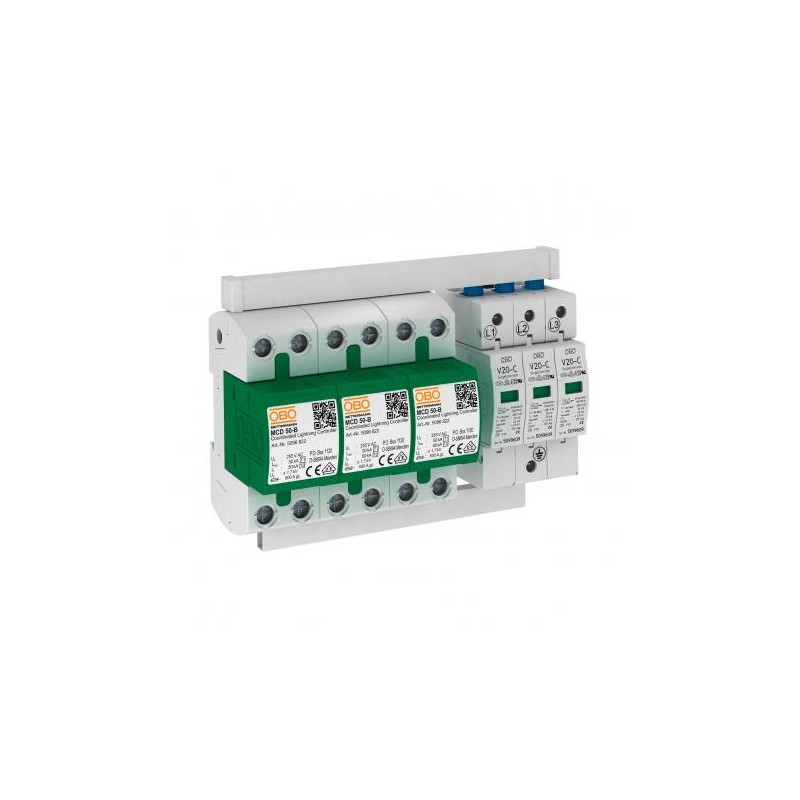

Protection set MCD + V20 3-pole. Protection set, lightning and surge arrester combination, type 1+2• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)• Lightning current arresting capacity to 50 kA (10/350) per pole• Arrester, connectable, incl. connecting bridges, labelled connection terminals• Encapsulated, non-extinguishing arrester for use in distributor housings Application: Mobile telecommunications systems and industrial systems with special requirements.

Categories:

  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Arrester surge current (8/20 µs) [total]100 kA
Blow-outno
CO2 Footprint (GWP) Cradle-to-Gate7,7517 kg CO2e / 1 Piece
Conductor cross-section, rigid (single-wire/multiwire), max.50 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.10 mm²
Dimension255V
Follow current quenching capacity (eff) [N-PE]25 kA
Lightning protection zone LPZ0→2
Lightning surge current (10/350 μs)50 kA
Lightning surge current (10/350)100 kA
Max. mains-side overcurrent protection125
Maximum back-up fuse125 A
Maximum continuous voltage (L-N)255 V
Maximum continuous voltage AC255 V
Maximum discharge current (8/20 μs)100 kA
Network formTN-C
Nominal discharge current (8/20 µs)50 kA
Nominal voltage AC (50/60 Hz)230 V
Operating temperature, max.85 °C
Operating temperature, min.-40 °C
Permitted temperature range, max.85 °C
Permitted temperature range, min.-40 °C
Pole number3
Pole version3
Protection ratingIP20
Remote signallingno
Response time<25 ns
Short-circuit resistance25 kA
Short-circuit resistance for max. mains-side overcurrent protection25 kA
Signalling on deviceVisual
SPD to EN 61643-11Type 1+2
SPD to IEC 61643-1Class I+II
Version for3-pole; 255 V
