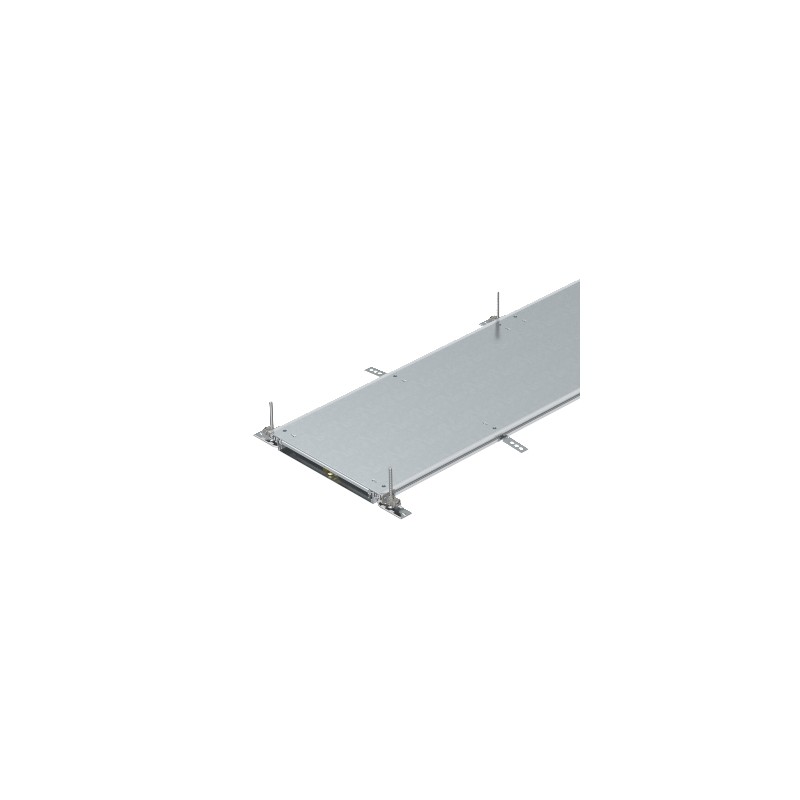

OKA-W4004030R 7424464 OBO BETTERMANN Trunking unit, blank, locking, height 40−70 mm
OKA-W4004030R
7424464
OBO BETTERMANN
2
Trunking unit, blank, locking, height 40−70 mm
OKA-W4004030R blind flush pavement channel, nestable 2400x400x40 Steel, St galvanized in band, DIN EN 10346
Trunking unit, blank, locking, height 40−70 mm. Ready-to-mount trunking unit with three self-locking blanking covers for cable laying, consisting of the trunking base (floor trough with side and floor covering guide profiles) and trunking lid. Floor trough with holding shackles for self-contacting mounting of dividers. The scope of supply contains six height-adjustable wall fixing brackets, six screed anchors and three cover joint supports (for nominal trunking widths 200 and 300) or three height-adjustable cover joint supports (for nominal trunking widths 400, 500 and 600). Trunking lid screwed down when delivered.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 78,7805 kg CO2e / 1 Meter |
|---|---|
| Cover fastening, locking | yes |
| Cover material thickness | 4 |
| Covers | 3 |
| Decouplable | no |
| Dimension | 2400x400x40 |
| Duct height, min. | 40 mm |
| Floor plate | yes |
| Height-adjustment range, max. | 70 mm |
| Height-adjustment range, min. | 40 mm |
| Installation opening for on-floor tank | no |
| Length | 2400 mm |
| Material | Steel |
| Minimum screed height | 40 |
| Mounting opening | Without |
| Mounting opening cover | no |
|---|---|
| Number of compartments | 3 St. |
| Number of insertable partitions | 2 |
| Number of planned flush-mount units | 3 |
| Removable cover | yes |
| Seal installation option | yes |
| Separating retainer fastening | Plug |
| Suitable for expansion joint | no |
| Surface | Strip galvanized |
| Trunking height, max. | 70 mm |
| Width | 400 mm |
| With connection opening | no |
| With equipotential bonding | no |
| With overhang | yes |
| With separating retainer | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
