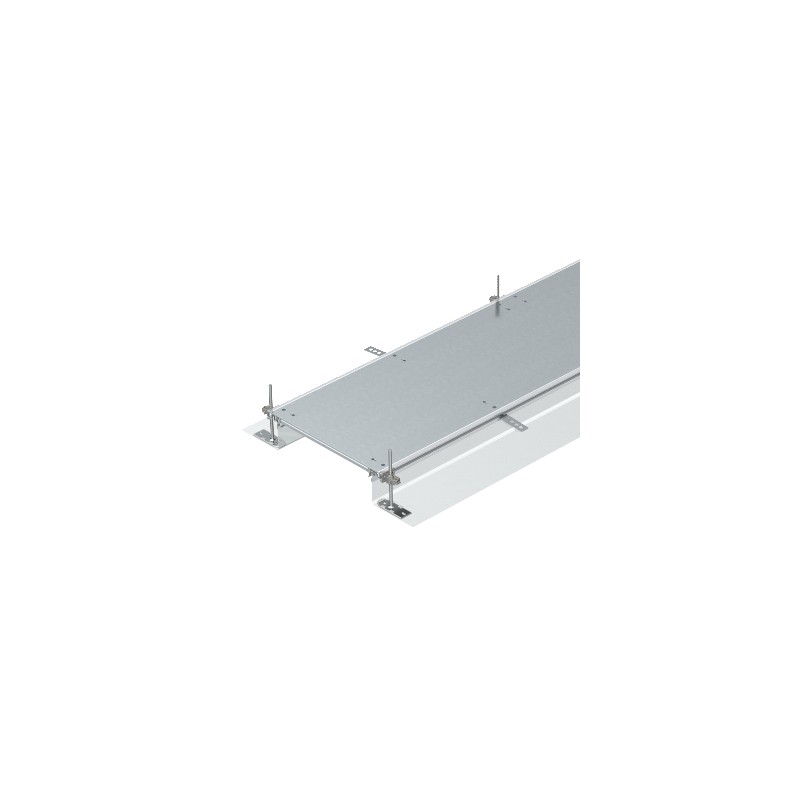

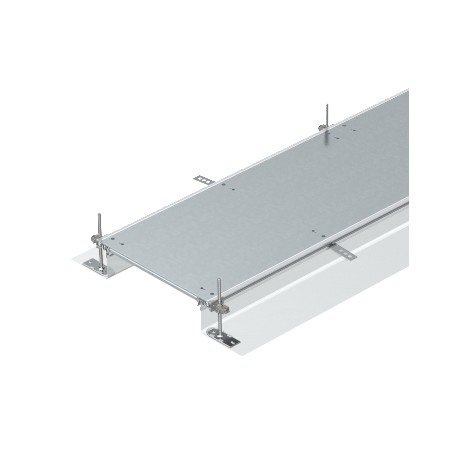

OKA-G20040140R 7424040 OBO BETTERMANN Trunking unit, blank, locking, height 40−140 mm
OKA-G20040140R
7424040
OBO BETTERMANN
Trunking unit, blank, locking, height 40−140 mm
Trunking unit, blank, locking, height 40−140 mm. Ready-to-mount trunking unit for cable routing consisting of 3 self-locking blind lids, 2 side profiles with attached flexible side wall made of metal mesh, floor covering contact profiles with a height H of 3 mm. The scope of delivery contains 6 height-adjustable fixing brackets, 6 screed anchors and 3 lid butt seals (for nominal trunking widths 200, 300 and 400) or 6 lid butt supports (for nominal trunking widths 500 and 600). The essential levelling units (observe height adjustment) for the 500 and 600 lid supports are not contained in the scope of delivery and should be ordered separately. The trunking lids are screwed up to and including the nominal width 400, pre-mounted with locking springs.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 46,7371 kg CO2e / 1 Meter |
|---|---|
| Cover fastening, locking | yes |
| Cover material thickness | 4 |
| Covers | 3 |
| Decouplable | yes |
| Dimension | 2400x200x140 |
| Duct height, min. | 40 mm |
| Floor care | Wet |
| Floor plate | no |
| Height-adjustment range, max. | 140 mm |
| Height-adjustment range, min. | 40 mm |
| Installation opening for on-floor tank | no |
| Length | 2400 mm |
| Material | Steel |
| Minimum screed height | 40 |
|---|---|
| Mounting opening | Without |
| Mounting opening cover | no |
| Removable cover | yes |
| Seal installation option | yes |
| Suitable for expansion joint | no |
| Surface | Strip galvanized |
| Trunking height, max. | 140 mm |
| Width | 200 mm |
| With connection opening | no |
| With equipotential bonding | no |
| With overhang | yes |
| With separating retainer | no |
