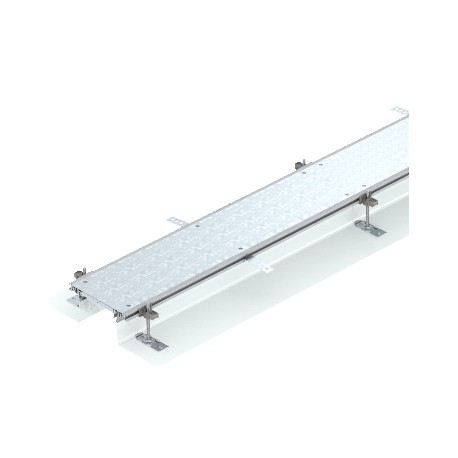

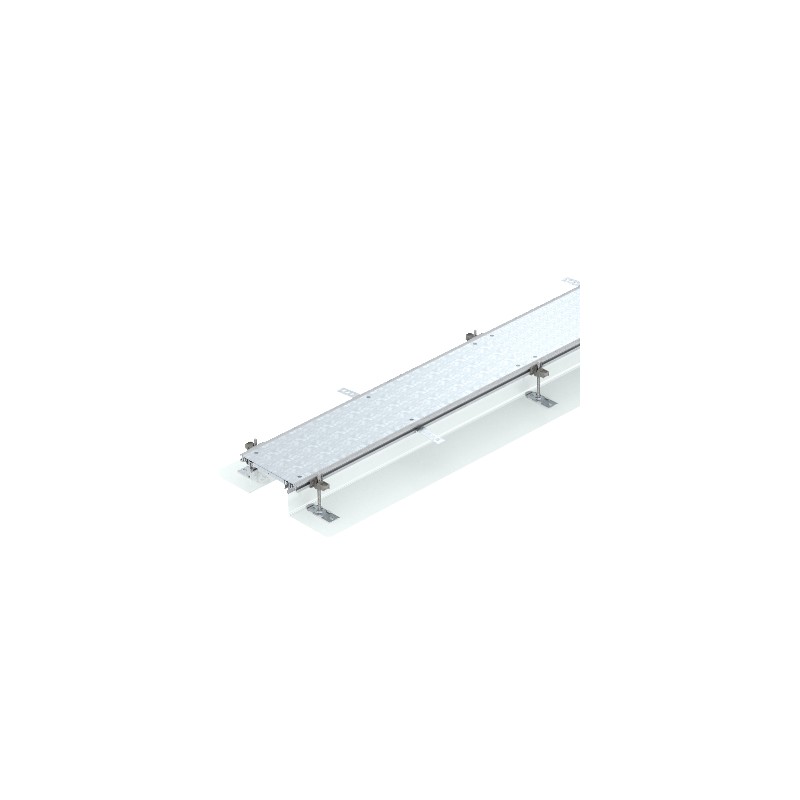

OKA-G20040140 7424000 OBO BETTERMANN Trunking unit, blank, height 40−140 mm
OKA-G20040140
7424000
OBO BETTERMANN
2
Trunking unit, blank, height 40−140 mm
Trunking unit, blank, height 40−140 mm. Ready-to-mount trunking unit for cable routing consisting of 3 blind lids, 2 side profiles with attached flexible side wall made of metal mesh, floor covering contact profiles with a height H of 3 mm. The scope of supply contains six height-adjustable fastening brackets, six screed anchors and three lid butt seals for nominal trunking widths 200, 300 and 400mor six lid butt supports for trunking widths 500 and 600. The essential levelling units (observe height adjustment) for the 400, 500 and 600 lid supports are not contained in the scope of delivery and should be ordered separately. On delivery, the trunking lids are screwed on.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 43,6792 kg CO2e / 1 Meter |
|---|---|
| Cover fastening, locking | no |
| Cover material thickness | 4 |
| Covers | 3 |
| Decouplable | yes |
| Dimension | 2400x200x140 |
| Duct height, min. | 40 mm |
| Floor plate | no |
| Height-adjustment range, max. | 140 mm |
| Height-adjustment range, min. | 40 mm |
| Installation opening for on-floor tank | no |
| Length | 2400 mm |
| Material | Steel |
| Minimum screed height | 40 |
|---|---|
| Mounting opening | Without |
| Mounting opening cover | no |
| Removable cover | yes |
| Seal installation option | yes |
| Suitable for expansion joint | no |
| Surface | Strip galvanized |
| Trunking height, max. | 140 mm |
| Width | 200 mm |
| With connection opening | no |
| With equipotential bonding | no |
| With overhang | yes |
| With separating retainer | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
