OBO BETTERMANNTBS Transient and lightning protection systems - OBO BETTERMANNND-CAT6/E-F 5081802 OBO BETTERMANN NET DEFENDER PROTECTION FINE

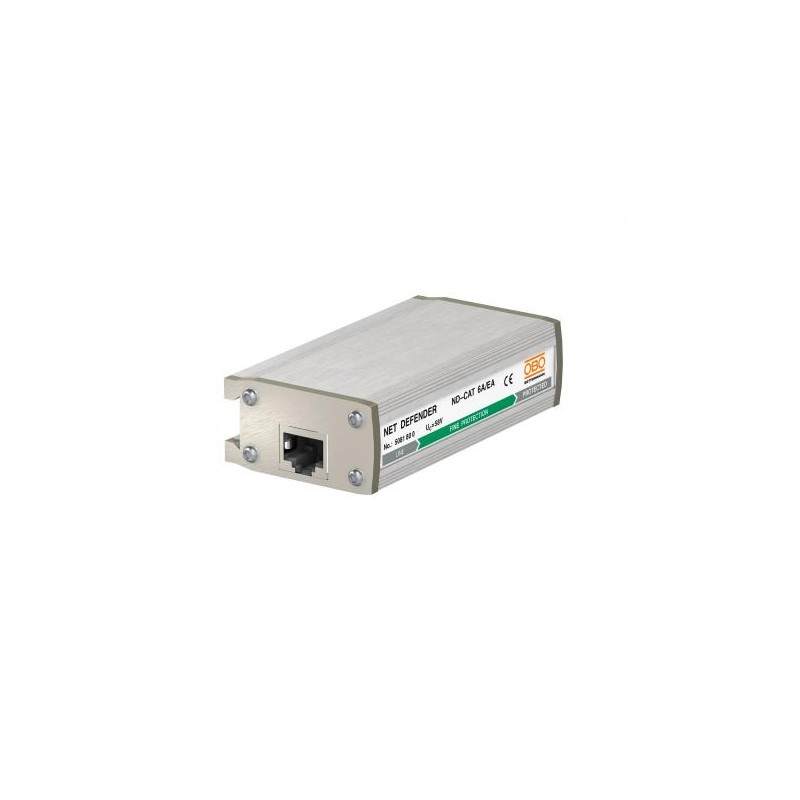

OBO BETTERMANN ND-CAT6/E-F 5081802 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

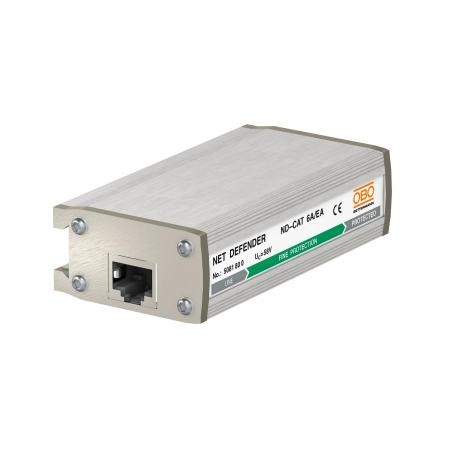

ND-CAT6/E-F 5081802 OBO BETTERMANN NET DEFENDER PROTECTION FINE

Reference: ND-CAT6/E-F

Code: 5081802

Manufacturer: OBO BETTERMANN

Description:

NET DEFENDER PROTECTION FINE
Surge protection for high-speed networks up to 1 GBit (Class ND-CAT6/E-F). Data cable protection device for high-speed networks • High-quality RJ45 sockets • Low protection level at high current load • Earthing via DIN rail or connection cable• Support of Power over Ethernet ++ (PoE++/4PPoE) to 1 A in accordance with IEEE 802.3 • Tested transmission quality in networks up to 1 GBit/s (Class E) or CAT6• Fast installation through plug-in version• Incl. DIN rail fastening set and earthing cable Application example: 1 GBit Ethernet, 10/100 MBit Ethernet, PoE applications, IP camera systems, ISDN S0 interfaces

Categories:

  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 65,71 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Channel performance Ansi/EACAT 6
Channel performance ISO/IECClass E
CO2 Footprint (GWP) Cradle-to-Gate1,4746 kg CO2e / 1 Piece
ColourSilver grey; RAL 7001
Dimension58V
Earthing via:Connection cable / DIN rail
Explosion-tested versionno
Impulse durability wire-earthC2: 3 kV / 1,5 kA (8/20µs)
Impulse durability wire-wireC1: 0,3 kV / 0,15 kA (8/20µs)
Insertion loss≤3 dB
KategorieType 2+3 / C2+C1
Lightning protection zone LPZ1→3
MaterialAluminium
Maximum continuous voltage AC41 V
Maximum continuous voltage DC58 V
Number of poles8
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Plug-in systemRJ45 8(8)
Protection level wire-earth<900 V
Protection level wire-wire<40 V
Protection ratingIP20
ScreeningDirect
Shielding connection availableyes
SPD to IEC 61643-21Class II+III / C2+C1
Telecommunications contactno
Testing standardIEC 61643-21
Total discharge current (8/20)5 kA
Version forFine protection, 8 wires + shield
