OBO BETTERMANNTBS Transient and lightning protection systems - OBO BETTERMANNND-CAT6/E-B 5081804 OBO BETTERMANN NET DEFENDER PROTECTION FINE

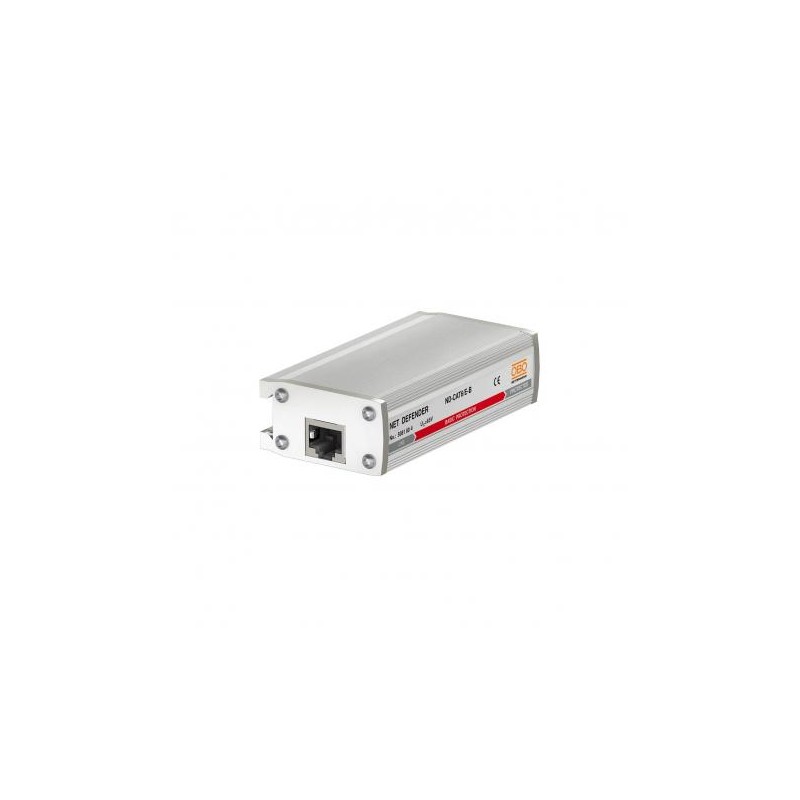

OBO BETTERMANN ND-CAT6/E-B 5081804 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

ND-CAT6/E-B 5081804 OBO BETTERMANN NET DEFENDER PROTECTION FINE

Reference: ND-CAT6/E-B

Code: 5081804

Manufacturer: OBO BETTERMANN

Description:

NET DEFENDER PROTECTION FINE
Net Defender basic protection ND-CAT6/E-B, for class E/CAT6 58V Aluminum, Alu,
Surge protection for high-speed networks up to 1 GBit (Class ND-CAT6/E-B). Data cable protection device for high-speed networks • Protection class: Basic protection• High-quality RJ45 sockets • Low protection level at high current load • Earthing via DIN rail or connection cable• Support of Power over Ethernet ++ (PoE++/4PPoE) to 1 A in accordance with IEEE 802.3 • Tested transmission quality in networks up to 1 GBit/s (Class E) or CAT6 • Rapid installation through plug-in version• Incl. DIN rail fastening set and earthing cable Application example: 1 GBit Ethernet, 10/100 MBit Ethernet, PoE applications, IP camera systems, ISDN S0 interfaces

Categories:

  • Earthing, lightning and surge protection > Surge protection device for data networks/MCR-technology
  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 60,18 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Channel performance Ansi/EACAT 6
Channel performance ISO/IECClass E
CO2 Footprint (GWP) Cradle-to-Gate1,4744 kg CO2e / 1 Piece
ColourSilver grey; RAL 7001
Dimension65V
Earthing via:Connection cable / DIN rail
Explosion-tested versionno
Impulse durability wire-earthC2: 3 kV / 1,5 kA (8/20µs)
Impulse durability wire-wireC2: 3 kV / 1,5 kA (8/20µs)
Insertion loss≤3 dB
KategorieType 1 / D1
Lightning protection zone LPZ0→1
MaterialAluminium
Maximum continuous voltage AC46 V
Maximum continuous voltage DC65 V
Number of poles8
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Plug-in systemRJ45 8(8)
Protection level wire-earth<900 V
Protection level wire-wire<1100 V
Protection ratingIP20
ScreeningDirect
Shielding connection availableyes
SPD to IEC 61643-21Class I / D1
Telecommunications contactno
Testing standardIEC 61643-21
Total discharge current (10/350)2,5 kA
Total discharge current (8/20)10 kA
Version forBasic protection, 8 wires + shield

ETIM for 5081804 Earthing, lightning and surge protection (EC000943)

Feature nameMax. continuous voltage AC (EF004198)
Feature value46 V
Feature nameMax. continuous voltage DC (EF004777)
Feature value65 V
Feature nameVoltage protection level core/core (EF004233)
Feature value1100 V
Feature nameVoltage protection level core/earth (EF004234)
Feature value900 V
Feature nameWith remote signalling contact (EF000422)
Feature valueNo
Feature nameDegree of protection (IP) (EF005474)
Feature valueIP20
