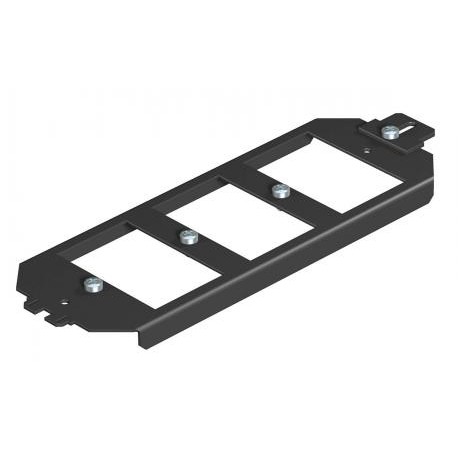

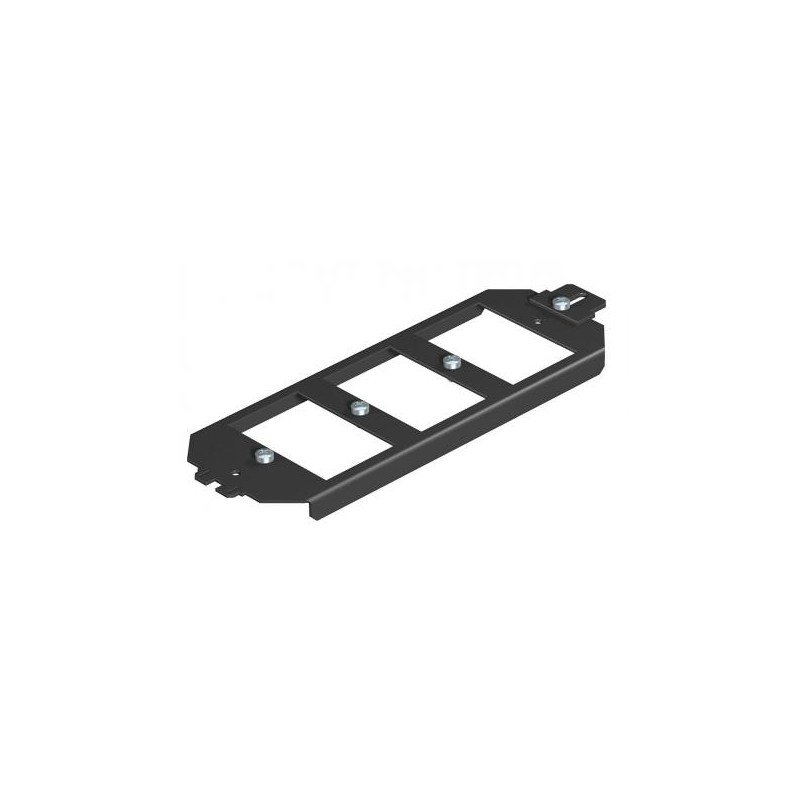

MTU 3 7407840 OBO BETTERMANN BRACKET MTU-3
MTU 3
7407840
OBO BETTERMANN
BRACKET MTU-3
MTU 3 support for support plate 208x76x12 intense black Steel, St galvanized in band, DIN EN 10346
Mounting support for data technology connection sockets, system length 208 mm. Mounting support for installation of three cover plates and strain relief. Use instead of a UT4 mounting box.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,7004 kg CO2e / 1 Piece |
|---|---|
| Colour | Jet black; RAL 9005 |
| Connection options | 3 support plates and strain relief |
| Decouplable | no |
| Depth | 11,4 mm |
| Dimension | 208x76x12 |
| Fastening type | Screw-on |
| Floor covering protection frame | no |
| Floor plate | no |
| Heavy-duty version | no |
| Installation opening for on-floor tank | no |
| Labelling panel | no |
| Length | 205 mm |
| Lowerable to be flush-floor | no |
| Material | Steel |
|---|---|
| Number of installable devices | 3 |
| Seal installation option | no |
| Strain relief option | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | yes |
| Suitable for underfloor ducts | yes |
| Surface | Strip galvanized |
| Version for | Support shape |
| Width | 76 mm |
| With floor covering recess | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
