OBO BETTERMANNUFS Underfloor piping systems - OBO BETTERMANNMTU 2 7407836 OBO BETTERMANN SUPPORT MTU 2

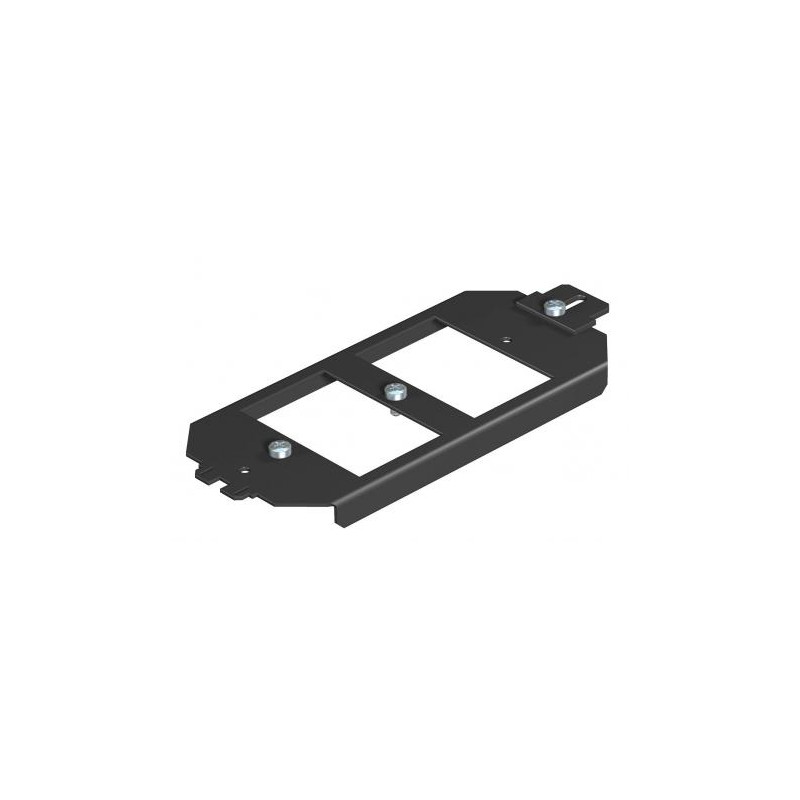

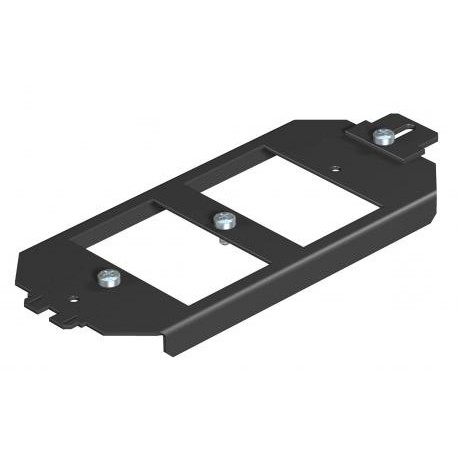

OBO BETTERMANN MTU 2 7407836 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MTU 2 7407836 OBO BETTERMANN SUPPORT MTU 2

Reference: MTU 2

Code: 7407836

Manufacturer: OBO BETTERMANN

Description:

SUPPORT MTU 2
MTU 2 support for support plate 165x76x12 intense black Steel, St galvanized in band, DIN EN 10346
Mounting support for data technology connection sockets, system length 165 mm. Mounting support for installation of two cover plates and strain relief. Use instead of a UT3 mounting box.

Categories:

  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 33,77 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate0,6242 kg CO2e / 1 Piece
ColourJet black; RAL 9005
Connection options2 support plates and strain relief
Decouplableno
Depth11,4 mm
Dimension165x76x12
Fastening typeScrew-on
Floor covering protection frameno
Floor plateno
Heavy-duty versionno
Installation opening for on-floor tankno
Labelling panelno
Length162 mm
Lowerable to be flush-floorno
MaterialSteel
Number of installable devices2
Seal installation optionno
Strain relief optionyes
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Suitable for screed-covered underfloor ductsyes
Suitable for screed-flush closed underfloor ductsyes
Suitable for underfloor ductsyes
SurfaceStrip galvanized
Version forSupport shape
Width76 mm
With floor covering recessno

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN
42 Mbytes
