MTM 3E 7407832 OBO BETTERMANN SUPPORT PLATE MTM 3E
MTM 3E
7407832
OBO BETTERMANN
SUPPORT PLATE MTM 3E

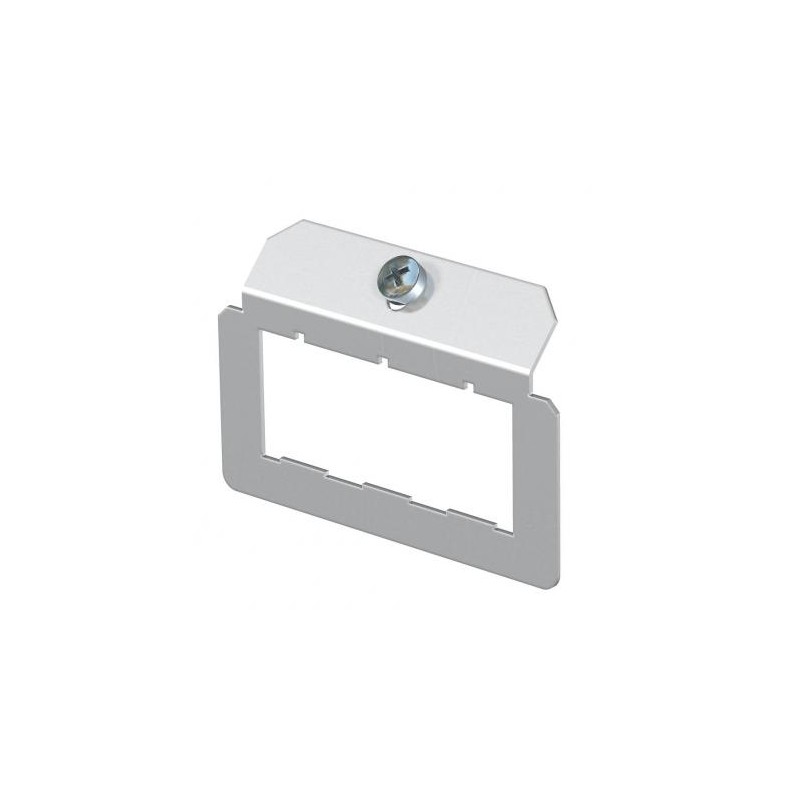

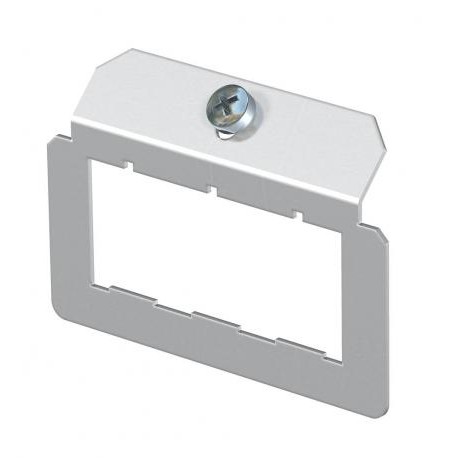

MTM 3E support plate for 3 x E-type connector Stainless steel 1.4301, A2, 1.4301
Support plate 3 x type E for mounting support. Support plate to accept three data connection modules, type Corning.Dimensions of a mounting opening in mm: 22.80 x 18.00.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,247 kg CO2e / 1 Piece |
|---|---|
| Connection options | 3 data connection modules, type Corning |
| Decouplable | no |
| Depth | 48,6 mm |
| Fastening type | Lockable |
| Floor covering protection frame | no |
| Floor plate | no |
| Heavy-duty version | no |
| Installation opening for on-floor tank | no |
| Labelling panel | no |
| Length | 72 mm |
| Lowerable to be flush-floor | no |
| Material | Stainless steel 1.4301 |
|---|---|
| Number of installable devices | 3 |
| Seal installation option | no |
| Strain relief option | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | yes |
| Suitable for underfloor ducts | yes |
| Version for | Support shape |
| With floor covering recess | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
