OBO BETTERMANNUFS Underfloor piping systems - OBO BETTERMANNMTM 3C 7407828 OBO BETTERMANN SUPPORT PLATE MTM 3C
OBO BETTERMANN MTM 3C 7407828 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

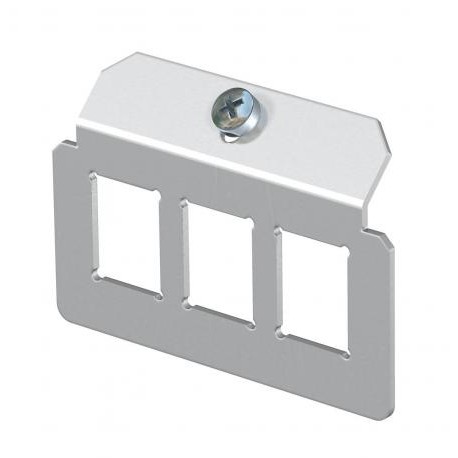

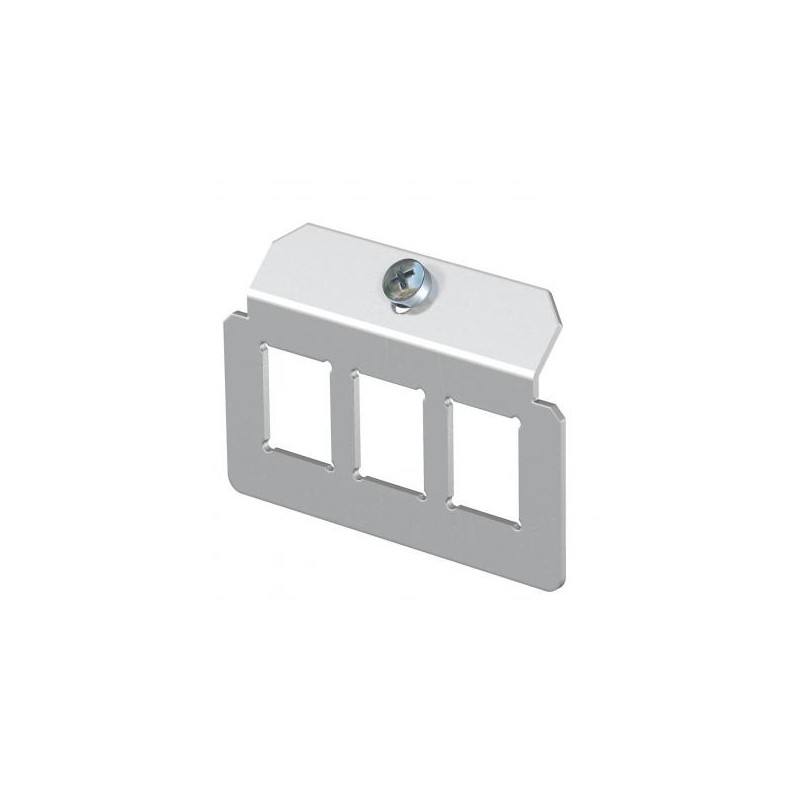

MTM 3C 7407828 OBO BETTERMANN SUPPORT PLATE MTM 3C

Reference: MTM 3C

Code: 7407828

Manufacturer: OBO BETTERMANN

Description:

SUPPORT PLATE MTM 3C
MTM 3C support plate for 3 x type C connector Stainless steel 1.4301, A2, 1.4301
Support plate 3 x type C for mounting support. Support plate to accept three data connection modules of the following types: Brand-Rex: shielded; EKU: E-Stone; Dätwyler: KS-T, MS-K and KU-T module; R&M: Snap-In and Keystone; Rutenbeck: UM and UMflex; SETEC: UKJ and XKJ; Siemon TERA; Telegärtner: AMJ and UMJ; 3M: CAT6 and CAT6A.Dimensions of a mounting opening in mm: 19.30 x 14.80.

Categories:

  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 14,88 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate0,2893 kg CO2e / 1 Piece
Connection options3 data connection modules of the following types BTR: E-DAT; Dätwyler: MS and MS-N; Kerpen: VarioKeystone
Decouplableno
Depth48,6 mm
Fastening typeLockable
Floor covering protection frameno
Floor plateno
Heavy-duty versionno
Installation opening for on-floor tankno
Labelling panelno
Length72 mm
Lowerable to be flush-floorno
MaterialStainless steel 1.4301
Number of installable devices3
Seal installation optionno
Strain relief optionyes
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Suitable for screed-covered underfloor ductsyes
Suitable for screed-flush closed underfloor ductsyes
Suitable for underfloor ductsyes
Version forSupport shape
With floor covering recessno

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN
42 Mbytes
