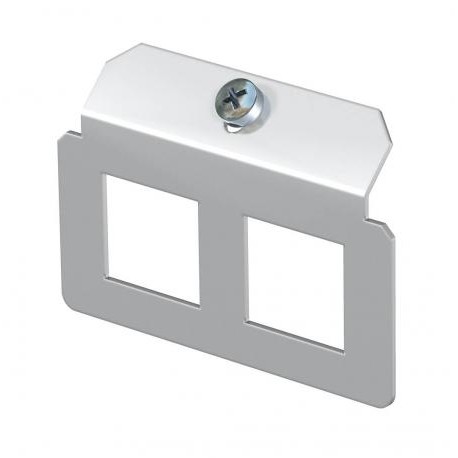

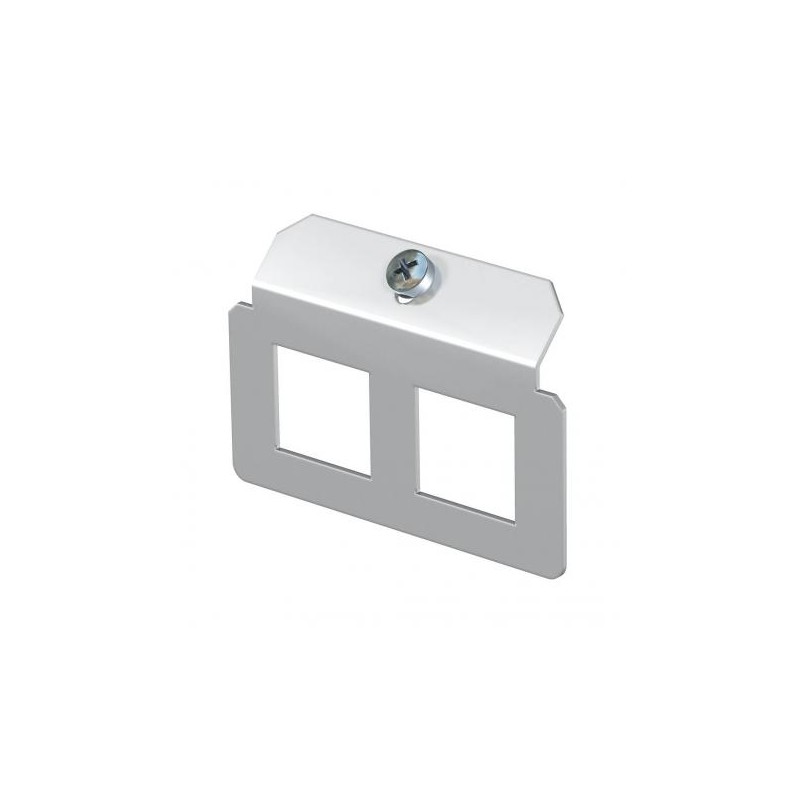

OBO BETTERMANN MTM 2P 7407817 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MTM 2P 7407817 OBO BETTERMANN SUPPORT PLATE MTM 2P

Reference: MTM 2P

Code: 7407817

Manufacturer: OBO BETTERMANN

Description:

SUPPORT PLATE MTM 2P
MTM 2P support plate for 2 x D-type connector 72 x 52.2 Steel, St galvanized band, DIN EN 10346
Support plate 2 x type P for mounting support. Support plate to accept two data connection sockets, type Panduit in combination with Panduit adapter CMNZABL-X or CMNZAWH-X.Dimensions of a mounting opening in mm: 19.8 x 21.2.

Categories:

  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 15,44 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate0,2837 kg CO2e / 1 Piece
Connection options2 connection sockets for data technology, type Panduit in conjunction with Panduit adapter CMNZABL-X or CMNZAWH-X
Decouplableno
Depth48,6 mm
Dimension72 x 52,2
Fastening typeLockable
Floor covering protection frameno
Floor plateno
Heavy-duty versionno
Installation opening for on-floor tankno
Labelling panelno
Length72 mm
Lowerable to be flush-floorno
MaterialSteel
Number of installable devices2
Seal installation optionno
Strain relief optionyes
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Suitable for screed-covered underfloor ductsyes
Suitable for screed-flush closed underfloor ductsyes
Suitable for underfloor ductsyes
SurfaceStrip galvanized
Version forSupport shape
With floor covering recessno
