OBO BETTERMANNBSS fire protection systems - OBO BETTERMANNMMS-plus 6X50 3498108 OBO BETTERMANN TORN. FLAT-MMS-PLUS 6X50 FIRE
OBO BETTERMANN MMS+ P 6x50 3498108 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

MMS-plus 6X50 3498108 OBO BETTERMANN TORN. FLAT-MMS-PLUS 6X50 FIRE

Reference: MMS+ P 6x50

Code: 3498108

Manufacturer: OBO BETTERMANN

Description:

TORN. FLAT-MMS-PLUS 6X50 FIRE

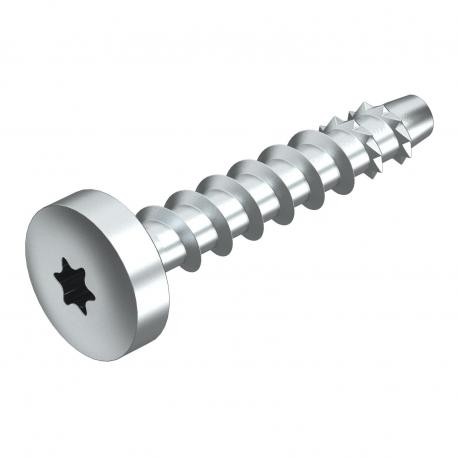

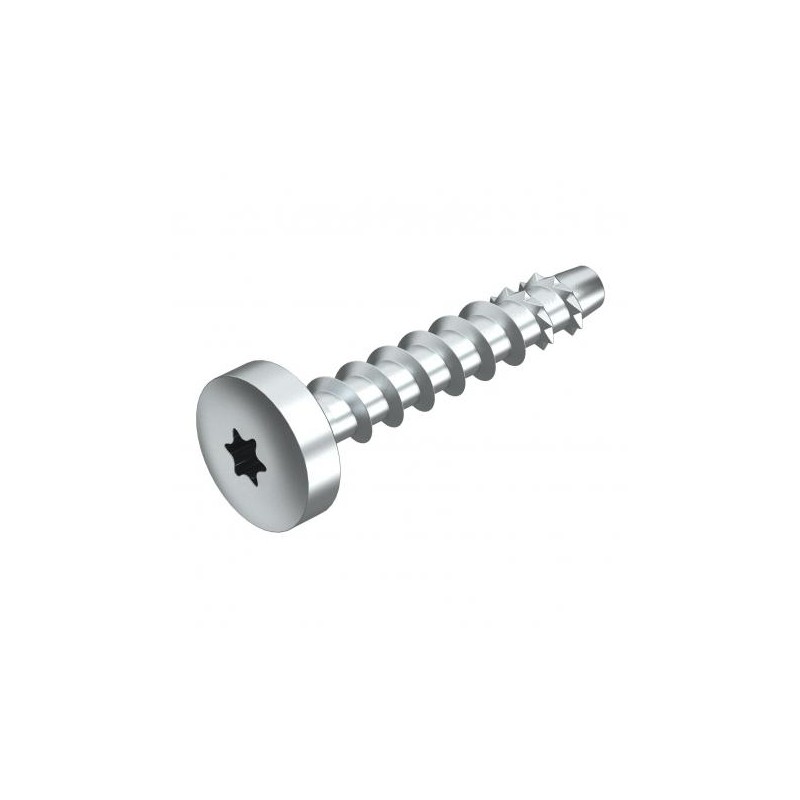

MMS-plus P 6x50 round head tie, with pan head. Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With round head for universal fastenings. Torx drive T30.Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.

Categories:

  • OBO BETTERMANN > BSS fire protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Total: 62,92 €

Unit Price: 0,6292 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Anchor length50 mm
Anchor/nail/bolt versionSpiral anchor
Clamping strength15 mm
Colourzinc
Dimension6x50mm
Dimension6 x 50
Dimension L50 mm
Drill hole depth40 mm
Drill hole diameter, min.5 mm
Fire resistance class EN 13501-1R30, R60, R90, R120
Hardenedyes
Head diameter11,2 mm
Head shapeCup head
Length50 mm
MaterialSteel
Screw systemTorx
SurfaceElectrogalvanized
Thread6
Thread diameter ST6

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN
18 Mbytes
PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN
12 Mbytes
