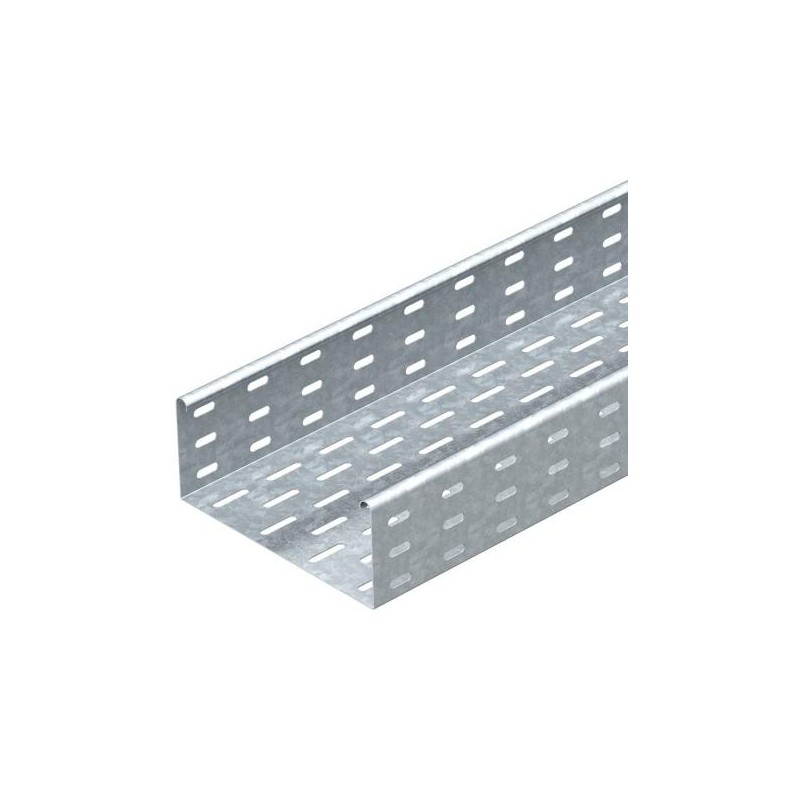

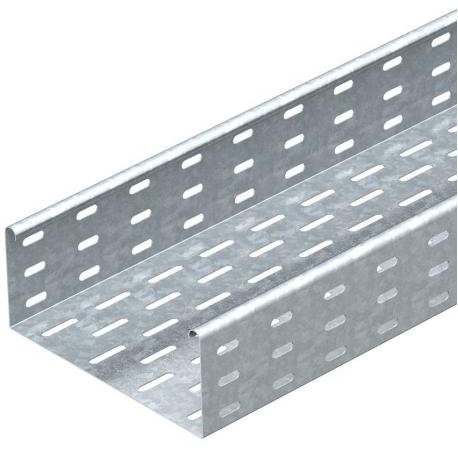

MKS 810 FS 6057101 OBO BETTERMANN CABLE TRAY MKS MKS 810 FS
MKS 810 FS
6057101
OBO BETTERMANN
3
CABLE TRAY MKS MKS 810 FS
Mks cable tray, perforated, with joint set, 85x100x3000, galvanized steel in band, DIN EN 10346
Cable tray MKS 85 FS. MKS 85 = medium-duty cable tray system with a side height of 85 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 5,6826 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 85 x 100 |
| Dimension | 85x100x3000 |
| Dimension B | 100 mm |
| Dimension W | 100 mm |
| Height | 85 mm |
| Height | 3 in |
| Length | 10 ft |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 0,04 in |
|---|---|
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 1,75 kN/m |
| Support spacing 1.75 m | 1,4 kN/m |
| Support spacing 2.0 m | 1,1 kN/m |
| Support spacing 2.5 m | 0,5 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 83 cm² |
| Usable cross-section | 8300 mm² |
| Wide-span version | no |
| Width | 4 in |
| Width | 100 mm |
| With cover | no |
Datasheet - PDF
