MKS 620 FT 6055575 OBO BETTERMANN CABLE TRAY MKS MKS 620 FT
MKS 620 FT
6055575
OBO BETTERMANN
3 m.
CABLE TRAY MKS MKS 620 FT

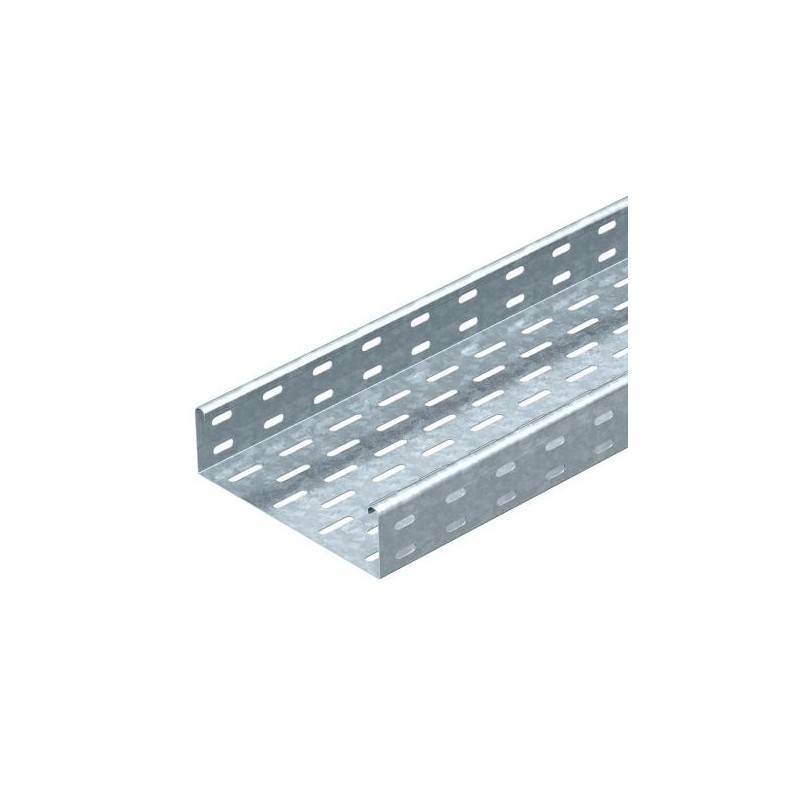

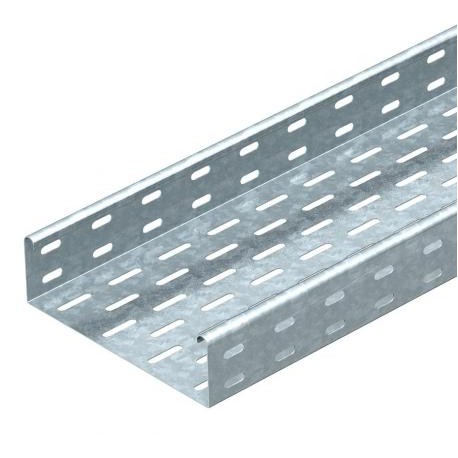

MKS cable tray, perforated, 60x200x3000, hot-dip galvanised steel, DIN EN ISO 1461
MKS 620 FT 6055575 Cable tray MKS 60 FS
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲Tested for installation above suspended fire protection ceilings (tray widths 100 - 400 mm, fire load 30 minutes, mounting work and parameters according to fire protection reports)
| Type | MKS 620 FT |
| Width mm | 200 |
| Plate thickness mm | 1 |
| Pack. m | 3 |
| Weight kg/100 m | 261,000 |
| Item No. | 6055575 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 200 mm |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 11800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 2.63 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 1500 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1000 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 500 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
