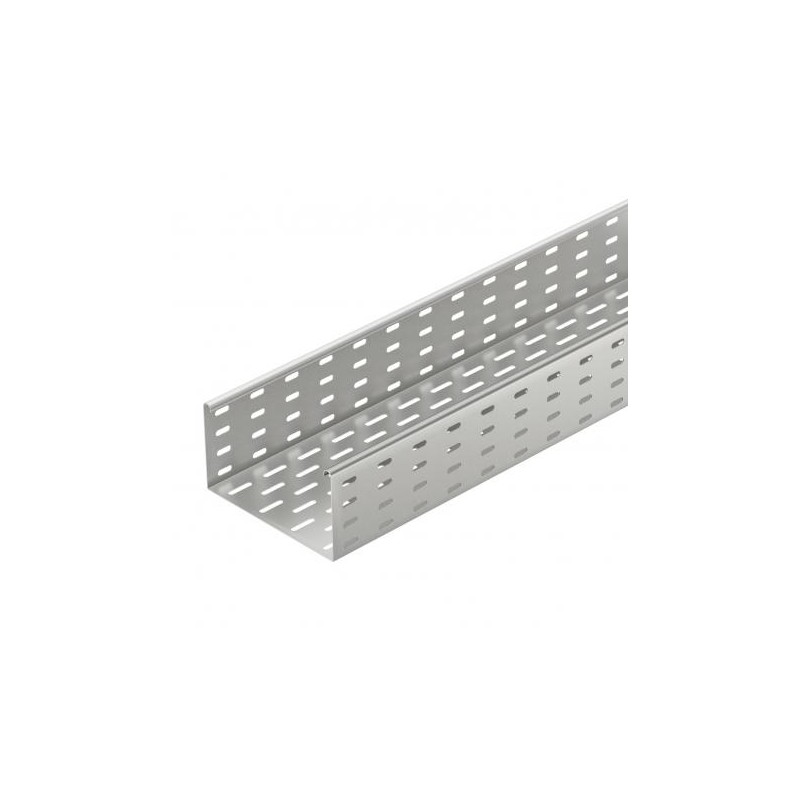

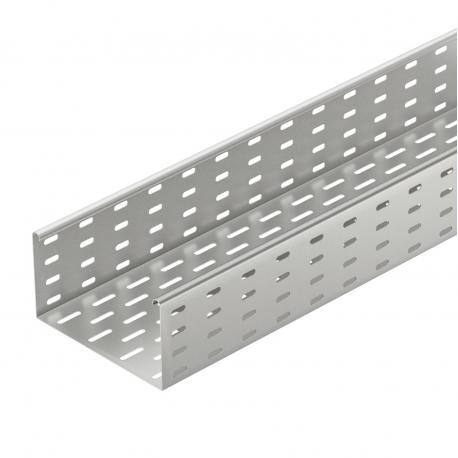

MKS 110 A2 6060803 OBO BETTERMANN CABLE TRAY MKS MKS 110 VA4301
MKS 110 A2
6060803
OBO BETTERMANN
3 m.
CABLE TRAY MKS MKS 110 VA4301
Perforated MKS portable tray 110x100x3000, stainless steel 1.4301, A2, 1.4301
MKS 110 VA4301 6060803 Cable tray MKS 110 FS
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Best sellers
▲More info
▲Including connector, type RLVL 110.
| Type | MKS 110 A2 |
| Width mm | 100 |
| Plate thickness mm | 1 |
| Pack. m | 3 |
| Weight kg/100 m | 243,000 |
| Item No. | 6060803 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 110 mm |
| Width (EF000008) | 100 mm |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 11000 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 304 |
| Surface protection (EF000139) | Untreated |
| Weight (EF000167) | 2.43 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 1850 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1300 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 750 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 600 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
