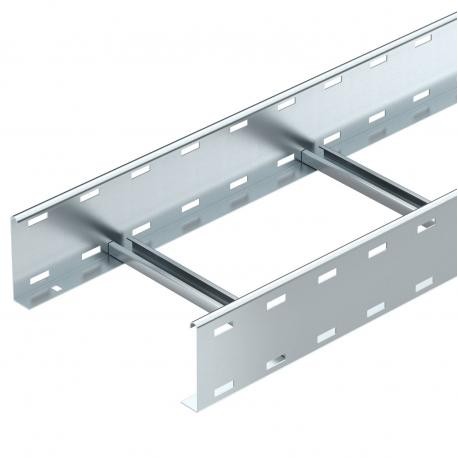

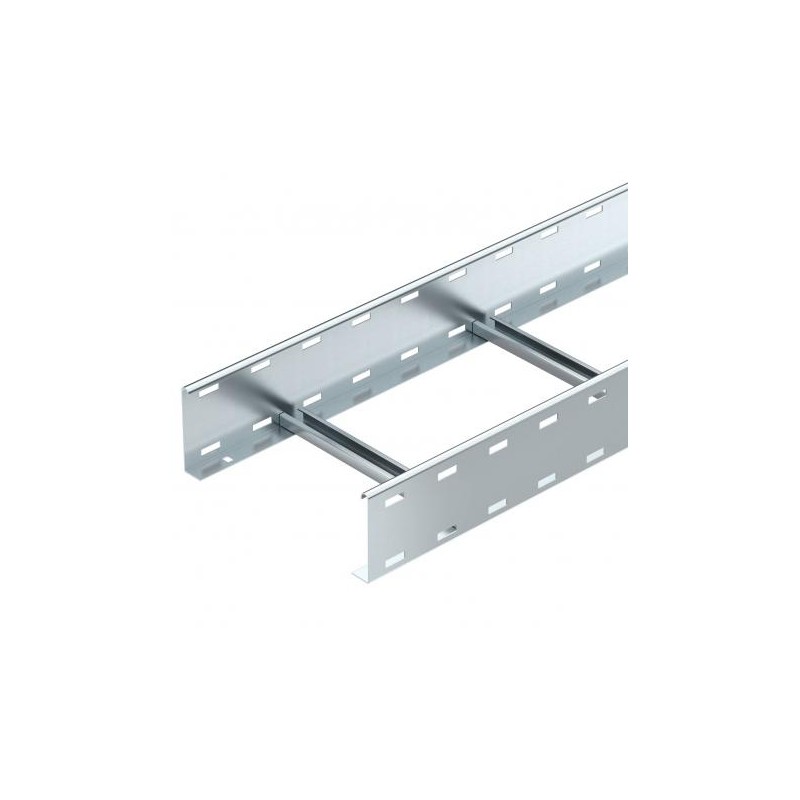

LG 112 VS 6 FT 6216465 OBO BETTERMANN TRAY LADDER LG 112 VS 6 FT
LG 112 VS 6 FT
6216465
OBO BETTERMANN
6 m.
TRAY LADDER LG 112 VS 6 FT
Ladder tray, perforated, with step VS, 110x200x6000, hot dip galvanized steel, DIN EN ISO 1461
LG 112 VS 6 FT 6216465 Cable ladder LG 110, 3 m VS FS
Cable carrying systems > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲The cable ladder is shipped folded up.
| Type | LG 112 VS 6 FT |
| Width mm | 200 |
| Rail thickness mm | 1,5 |
| Pack. m | 6 |
| Weight kg/100 m | 405,000 |
| Item No. | 6216465 |
| Feature Name | Feature Value |
|---|---|
| Type of side joist (EF007666) | Flat profile |
| Side perforation (EF001122) | Yes |
| Type of rung (EF001060) | Slotted channel |
| Fixation rung (EF008307) | Blind riveted |
| Height (EF000040) | 110 mm |
| Width (EF000008) | 200 mm |
| Length (EF001438) | 6000 mm |
| Useful cross section (EF005140) | 18800 mm² |
| Suitable for circuit integrity (EF007806) | No |
| Rung centre spacing (EF008185) | 300 mm |
| Vertical cable ladder (EF017249) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 4 kg/m |
| Possible support spacing (EF017261) | 2 m |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 3100 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 2000 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 1400 |
| Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) | 650 |
| Safe working load according to IEC 61537 with support spacing 5.0 m (EF017269) | 500 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
