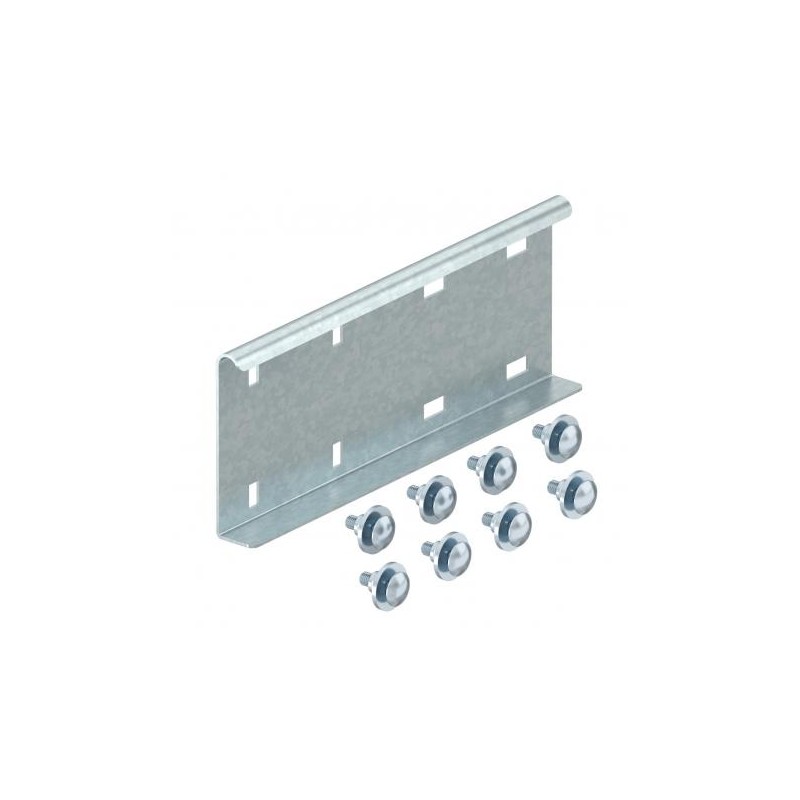

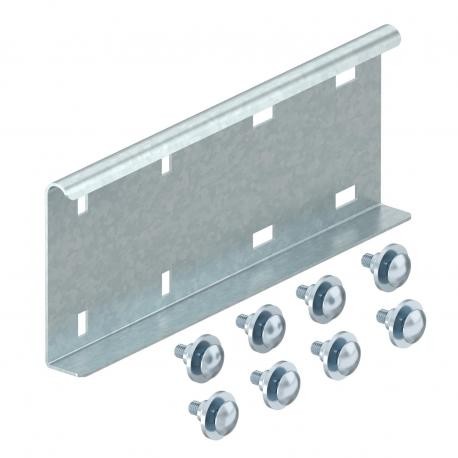

LDVG 110 FT 6216670 OBO BETTERMANN CONNECTOR EXPANSION LDVG 110 FT
LDVG 110 FT
6216670
OBO BETTERMANN
2
CONNECTOR EXPANSION LDVG 110 FT
Expansion connector 110 FT. Connector for expansion for compensation of linear thermal expansion. The tightening torques of the self-locking screws on the loose bearing side are 5 Nm.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Adjustable connector, horizontal | no |
|---|---|
| Articulated connector, vertical | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,3189 kg CO2e / 1 Piece |
| Colour | zinc |
| Connection type | Screw connector |
| Dimension | 110x300 |
| Height | 110 mm |
| Length | 300 mm |
| Maintain electrical functions | no |
| Material | Steel |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | no |
| Suitable for cable tray system height | 110 mm |
| Suitable for mesh cable tray | no |
| Surface | Hot-dip galvanised |
| Version for | Straight connector |
| Width | 27 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
