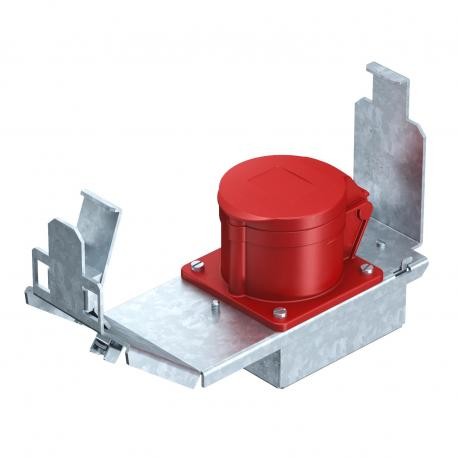

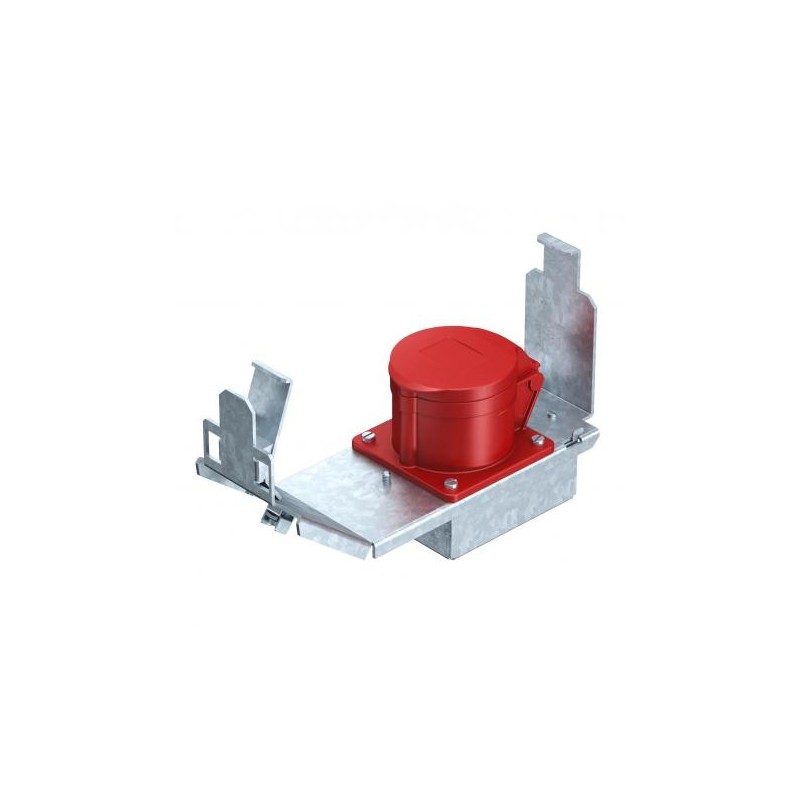

GT3 CEE16 7407667 OBO BETTERMANN BUCKET GT3 CEE16

Reference: GT3 CEE16

Code: 7407667

Manufacturer: OBO BETTERMANN

Description:

BUCKET GT3 CEE16
Cuvette, with CEE16 socket, 218x75x128, galvanized steel in band, DIN EN 10346
Device support for CEE installation, system length 208 mm, with CEE. Device support of nominal size 3 with a CEE plug connection 16 A for installation in service outlets and cassettes of nominal sizes R7, 9 and R9. Device support with protective housing and strain relief. Required minimum installation depth: 190 mm when using a straight connector and 160 mm when an angled connector is used.

Categories:

  • Sub-floor systems > Mounting box
  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 130,38 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate2,3589 kg CO2e / 1 Piece
Dimension218x75x128
Floor plateno
MaterialSteel
Seal installation optionno
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Suitable for screed-covered underfloor ductsyes
Suitable for screed-flush closed underfloor ductsyes
Suitable for underfloor ductsyes
SurfaceStrip galvanized

ETIM for 7407667 Underfloor trunking and floor boxes (EC000119)

Feature nameMaterial (EF002169)
Feature valueMetal
