OBO BETTERMANNUFS Underfloor piping systems - OBO BETTERMANNGT2CEE 7407665 OBO BETTERMANN BUCKET GT2CEE

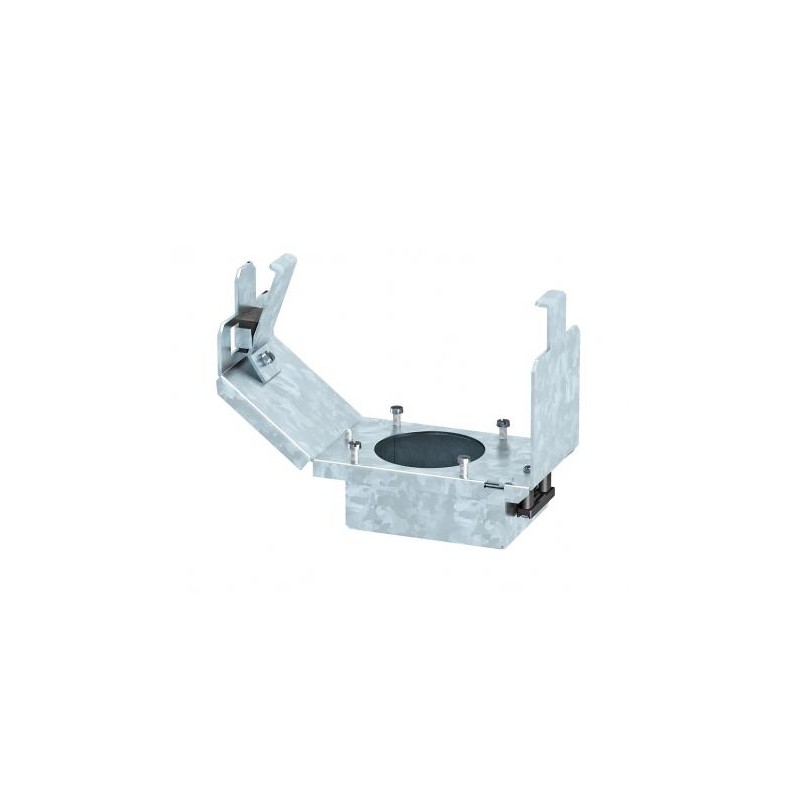

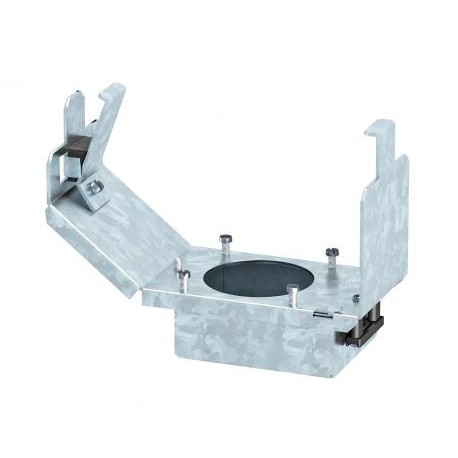

OBO BETTERMANN GT2CEE 7407665 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

GT2CEE 7407665 OBO BETTERMANN BUCKET GT2CEE

Reference: GT2CEE

Code: 7407665

Manufacturer: OBO BETTERMANN

Description:

BUCKET GT2CEE
Cuvette, for CEE16 and CEE32, 175x75x128, galvanized steel in band, DIN EN 10346
Device support for CEE installation, system length 165 mm, without CEE. Device support of nominal size 2 for the installation of a CEE plug connection 16 A or 32 A for installation in service outlets and cassettes of nominal size 2, 4, 6 and R7. Device support with protective housing and strain relief. Required minimum installation depth: 190 mm when using a straight connector and 160 mm when an angled connector is used.

Categories:

  • Sub-floor systems > Mounting box
  • OBO BETTERMANN > UFS Underfloor piping systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 81,46 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate2,2204 kg CO2e / 1 Piece
Dimension175x75x128
Floor plateno
MaterialSteel
Number of installable devices1
Seal installation optionno
Suitable for cavity floor installationyes
Suitable for raised floor installationyes
Suitable for screed-covered underfloor ductsyes
Suitable for screed-flush closed underfloor ductsyes
Suitable for underfloor ductsyes
SurfaceStrip galvanized

ETIM for 7407665 Underfloor trunking and floor boxes (EC000119)

Feature nameNumber of appliances to build in (EF000219)
Feature value1
Feature nameMaterial (EF002169)
Feature valueMetal
