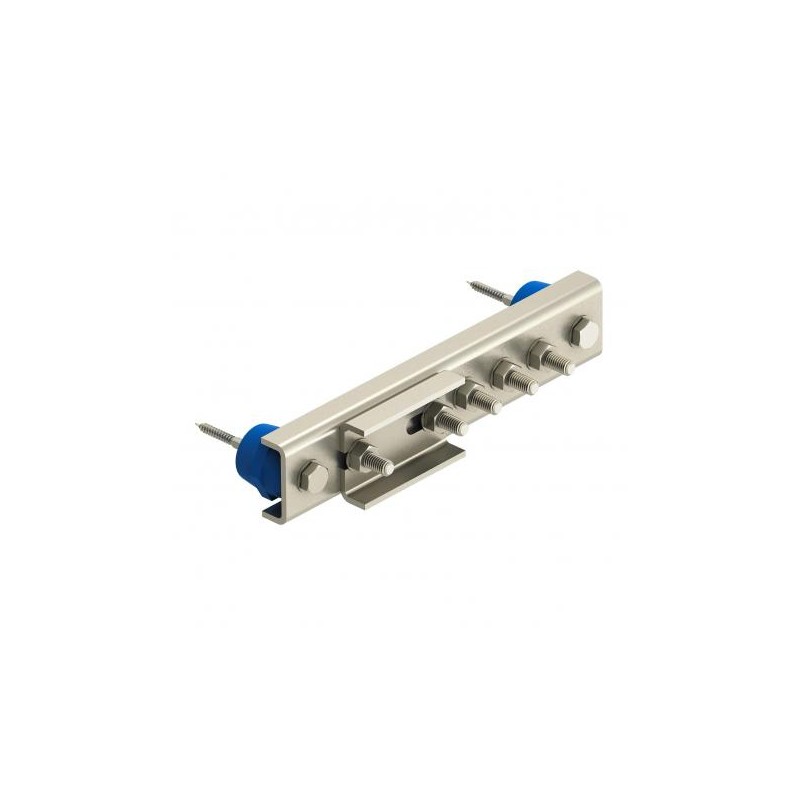

OBO BETTERMANN EX PAS 5 5015265 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

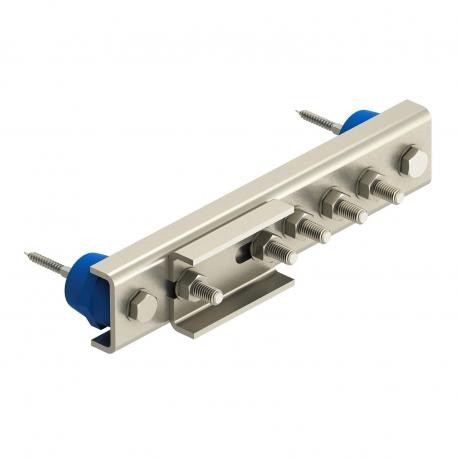

EX PAS 5 5015265 OBO BETTERMANN BUSS EQUIPOTENTIAL EX PAS 5

Reference: EX PAS 5

Code: 5015265

Manufacturer: OBO BETTERMANN

Description:

BUSS EQUIPOTENTIAL EX PAS 5
Equipotential busbar for EX zone 1/21, 2/22. For ignition spark-free protection/functional equipotential bonding to DIN VDE 0100-410/-540 as well as ignition spark-free lightning protection equipotential bonding to VDE 0185-305 (IEC 62305) in systems to VDE 0165-1 (IEC/ EN 60079-14)• Use in potentially explosive areas, Ex zone 1 and 2/21 and 22• Tested according to explosion group IIC• Lightning current carrying capacity class H (100 kA) to VDE 0185-561-1 (IEC/EN 62561-1)• UV-resistant and halogen-free insulation feet• With spring washer for locking screws against self-loosening to VDE 0185-305-3 Supplementary sheet 2• Suitable for indoor and outdoor applications

Categories:

  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 132,24 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate7,7523 kg CO2e / 1 Piece
Dimension5xM10
Height4 mm
Insulatoryes
Length279 mm
Lightning current carrying capacityH/100 kA
MaterialStainless steel 1.4301
Material of the contact railRustproof steel (V2A)
Material of the terminalRustproof steel (V2A)
Number of connections5
Quantity of flat conductor connections up to 40 mm1
Quantity of round conductor connections, total5
TypeFixed structure
Version forOnly terminal
Width54 mm
