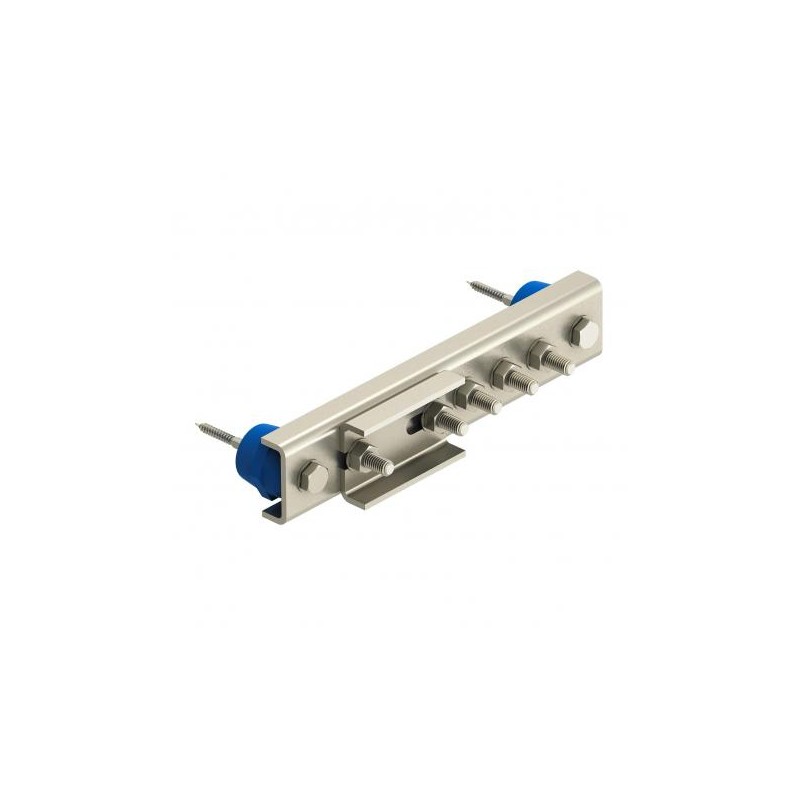

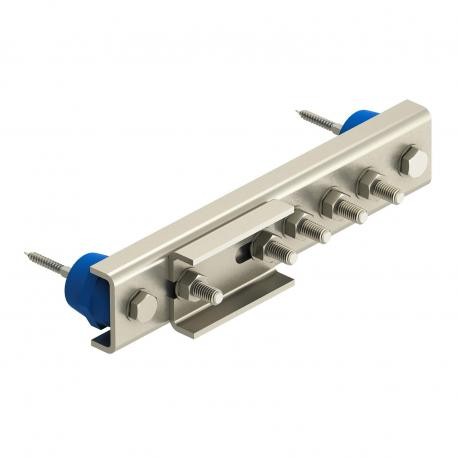

EX PAS 10 5015270 OBO BETTERMANN BUSS EQUIPOTENTIAL EX PAS 10
EX PAS 10
5015270
OBO BETTERMANN
BUSS EQUIPOTENTIAL EX PAS 10
Equipotential busbar for EX zone 1/21, 2/22. For ignition spark-free protection/functional equipotential bonding to DIN VDE 0100-410/-540 as well as ignition spark-free lightning protection equipotential bonding to VDE 0185-305 (IEC 62305) in systems to VDE 0165-1 (IEC/ EN 60079-14)• Use in potentially explosive areas, Ex zone 1 and 2/21 and 22• Tested according to explosion group IIC• Lightning current carrying capacity class H (100 kA) to VDE 0185-561-1 (IEC/EN 62561-1)• UV-resistant and halogen-free insulation feet• With spring washer for locking screws against self-loosening to VDE 0185-305-3 Supplementary sheet 2• Suitable for indoor and outdoor applications
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 11,5349 kg CO2e / 1 Piece |
|---|---|
| Dimension | 10xM10 |
| Height | 4 mm |
| Insulator | yes |
| Length | 441 mm |
| Lightning current carrying capacity | H/100 kA |
| Material | Stainless steel 1.4301 |
| Material of the contact rail | Rustproof steel (V2A) |
| Material of the terminal | Rustproof steel (V2A) |
|---|---|
| Number of connections | 10 |
| Quantity of flat conductor connections up to 40 mm | 1 |
| Quantity of round conductor connections, total | 10 |
| Type | Fixed structure |
| Version for | Only terminal |
| Width | 54 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
