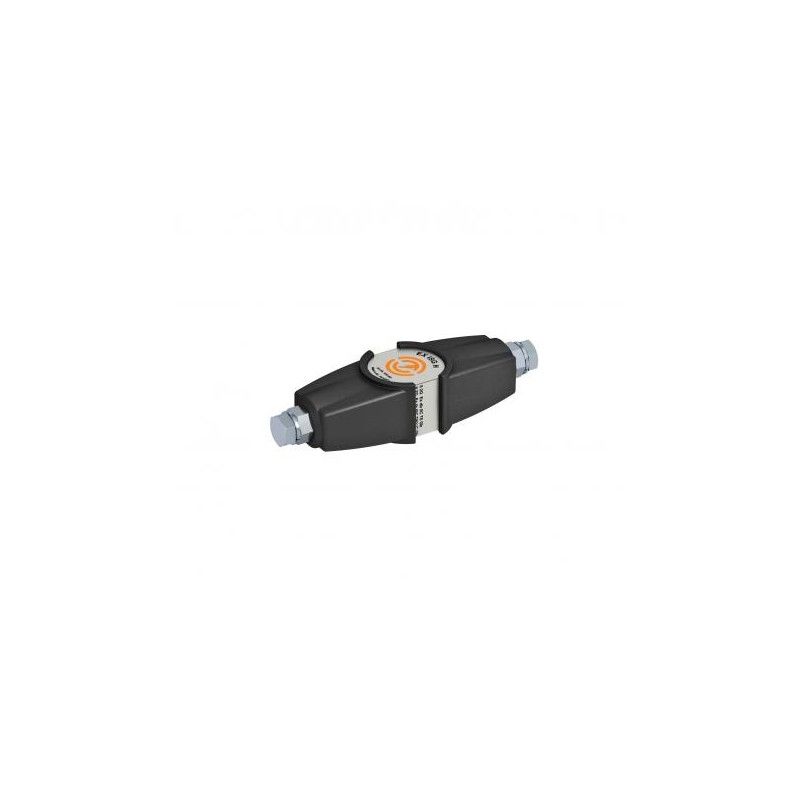

OBO BETTERMANN EX ISG H 5240030 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

EX ISG H 5240030 OBO BETTERMANN EX ISG H 5240030 Spark gap EX ISG

Reference: EX ISG H

Code: 5240030

Manufacturer: OBO BETTERMANN

Description:

EX ISG H 5240030 Spark gap EX ISG
EX ISG H spark gap. • Spark gap to VDE 0185-561-3 (IEC 62561-3)• Ex certificate to ATEX• Labelling to EN 60079-0/-1: II 2 G Ex db IIC T6 Gb• Labelling to EN 60079-0/-31: II 2 D Ex td IIIC T80 °C Db IP67• Ex certificate to IECEx • Labelling to IEC 60079-0/-1: Ex db IIC T6 Gb• Labelling to IEC 60079-0/-31: Ex td IIIC T80 °C Db IP67• Ex certificate to INMETRO• Labelling to ABNT NBR IEC 60079-0/-1: Ex db IIC T6 Gb• Labelling to ABNT NBR IEC 60079-31: Ex tb IIIC T80 °C Db IP67 Application: In potentially explosive areas zones 1/21 and 2/22, indirect bridging of insulating flanges and insulating glands, e.g. in cathodic, corrosion-protected (KKS) systems.

Categories:

  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN > Surge protection, external - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 320,43 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

CO2 Footprint (GWP) Cradle-to-Gate2,1762 kg CO2e / 1 Piece
ColourBlack
ConnectionMetric
Dimension160x45x35
Explosion-tested versionyes
Ignition protection typePressure-resistant encapsulation
Lightning current carrying capacityH/100 kA
Lightning impulse current100 kA
MaterialHotmelt
Material of the connectionDie-cast zinc
Nominal discharge surge current100 kA
Permitted temperature range, max.60 °C
Permitted temperature range, min.-20 °C
Power frequency spark-over voltage0,56 kV
Protection ratingIP65/67
Rated DC withstand voltage354 V
Rated impulse sparkover voltage1,25 kV
Rated power frequency withstand voltage250 V
