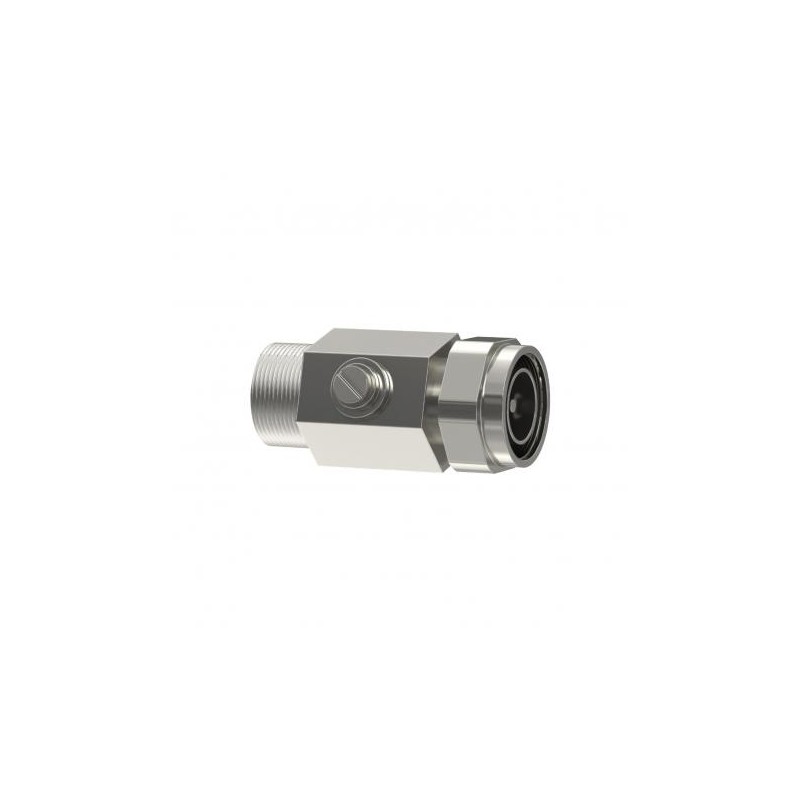

OBO BETTERMANN DS-7 16 M/W 5093171 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

DS-7 16 M/W 5093171 OBO BETTERMANN DEVICE PROT/LINES DATA DS-7 16 M/W

Reference: DS-7 16 M/W

Code: 5093171

Manufacturer: OBO BETTERMANN

Description:

DEVICE PROT/LINES DATA DS-7 16 M/W
Coaxial protection device for 7/16 connection: male/female. Coaxial data protection device• Basic protection• Simple mounting (adapter)• Optimum transmission• High pulse load capacity• With 7/16 connectorApplication: to protect mobile telephony applications.

Categories:

  • OBO BETTERMANN > TBS Transient and lightning protection systems - OBO BETTERMANN

Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Arrestor monitoringno
Capacity (wire-earth)<20 pF
Capacity (wire-wire)<10 pF
CO2 Footprint (GWP) Cradle-to-Gate0,0441 kg CO2e / 1 Piece
Cut-off frequency3000 MHz
Dimension170V
Explosion-tested versionno
Impulse durability wire-earthC2: 10 kV / 5 kA (8/20µs)
Impulse durability wire-wireC2: 10 kV / 5 kA (8/20µs)
Insertion loss≤0,95 dB
Insulation resistance>1 GΩ
KategorieType 1+2 / D1+C2
Lightning impulse current2,5 kA
Lightning protection zone LPZ0→2
Maximum continuous voltage AC130 V
Maximum continuous voltage DC185 V
Nominal load current AC7 A
Nominal load current DC10 A
Number of poles1
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Plug-in system7/16
Protection level<800 V
Protection level wire-earth<800 V
Protection level wire-wire<800 V
Protection ratingIP40
Return loss≥14 dB
ScreeningDirect
Shielding connection availableyes
Signalling on deviceNone
SPD to IEC 61643-21Class I+II / D1+C2
Telecommunications contactno
Testing standardIEC 61643-21
Total discharge current (10/350)5 kA
Total discharge current (8/20)10 kA
Wave resistance50 Ω

DATASHEET - PDF
