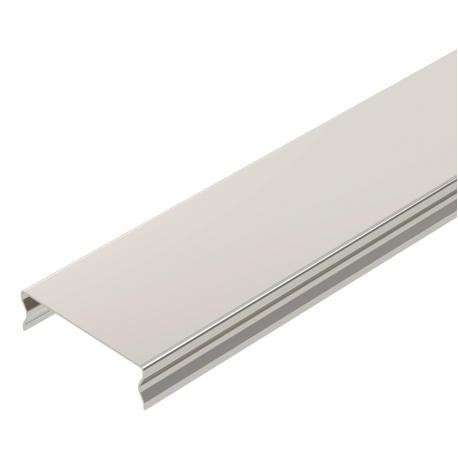

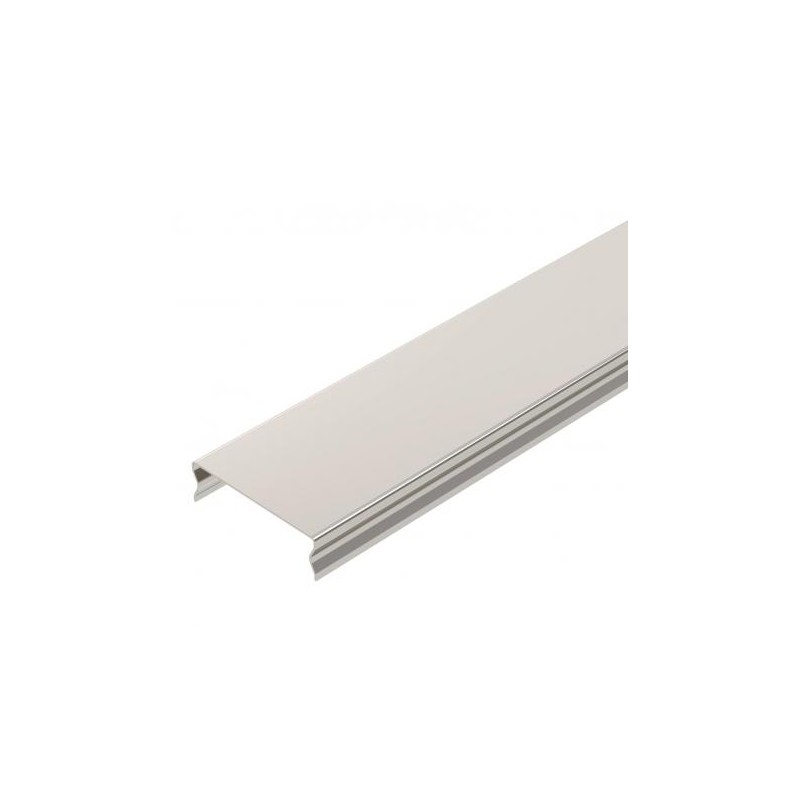

DGRR 50 A2 6001860 OBO BETTERMANN CLOSURE CAP 50 A2
DGRR 50 A2
6001860
OBO BETTERMANN
3 m.
CLOSURE CAP 50 A2
Closing lid for grid tray 50x3000, stainless steel 1.4301, A2, 1.4301
Cover for mesh cable tray, latchable A2. Lockable cover for mesh cable trays of type GR and GRM. Protects cables from damage, contamination and moisture from above. Suitable for the foodstuffs or chemicals industries.When using covers outdoors, additional measures against the influence of wind may need to be taken.
Cable carrying systems > Cover for cable support system
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 3,2494 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Dimension | 50x3000 |
| Dimension B | 50 mm |
| Fastening type | Locking |
| Height | 0,59 in |
| Height | 15 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
|---|---|
| Plate thickness | 0,8 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Suitable for mesh cable tray | yes |
| Surface | Bright, treated |
| Width | 1,97 in |
| Width | 50 mm |
| Feature Name | Feature Value |
|---|---|
| Cover width (EF005146) | 50 mm |
| Material thickness (EF000386) | 0.8 mm |
| Suitable for cable tray (EF005166) | No |
| Suitable for wire mesh tray (EF005163) | Yes |
| Suitable for cable ladder (EF005165) | No |
| Length (EF001438) | 3000 mm |
| Type of fastening (EF002442) | Snap on |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Stainless steel, pickled (EF006388) | No |
| Material quality (EF001257) | Rustproof and acidproof steel |
| Surface protection (EF000139) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
