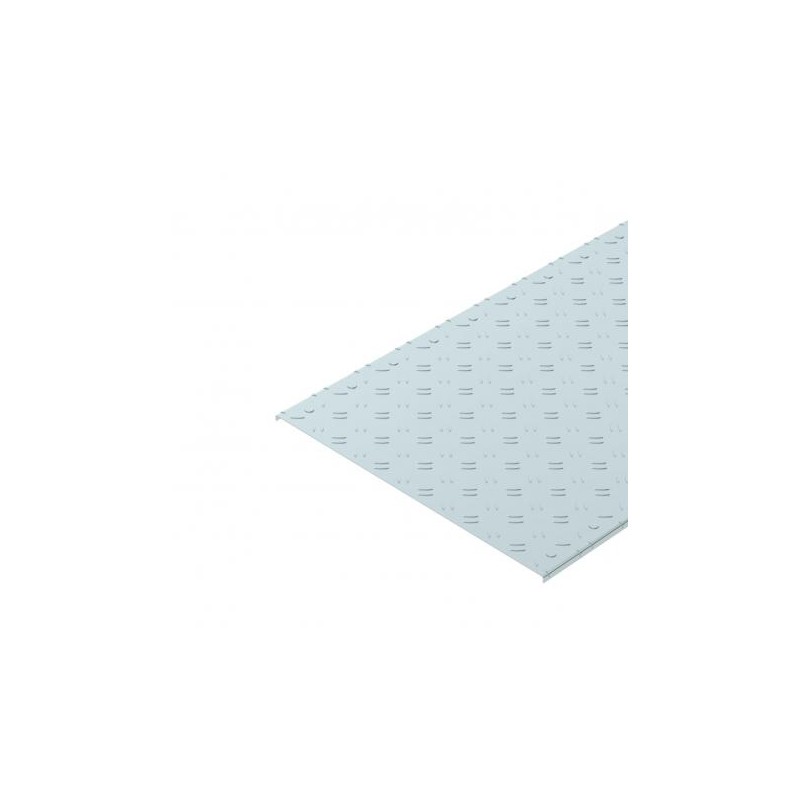

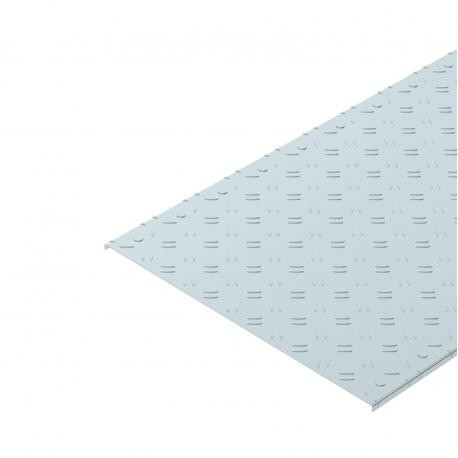

DBKR 600 FS 6049129 OBO BETTERMANN COVER FLUTED STEEL
DBKR 600 FS
6049129
OBO BETTERMANN
3 m.
COVER FLUTED STEEL
Lid, striated steel, p/ passable tray, 600x3000, galvanized steel in band, DIN EN 10346
Chequer plate cover DBKR FS. Chequer plate cover for the walkable cable tray system, type BKR. The cover thickness is comprised of 2.0 mm strip-galvanised sheet steel and a 1.3 mm chequer height.Pre-marked break-out openings at a spacing of 100 mm allow retroinstallation of a turn buckle.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 22,0196 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 600x3000 |
| Dimension b | 50 mm |
| Dimension B | 600 mm |
| Dimension L | 3000 mm |
| Fastening type | On top |
| Height | 13 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Steel |
| Plate thickness | 3,3 mm |
| Rustproof steel, pickled | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanized |
| Width | 600 mm |
| Feature Name | Feature Value |
|---|---|
| Cover width (EF005146) | 600 mm |
| Material thickness (EF000386) | 3.3 mm |
| Suitable for cable tray (EF005166) | Yes |
| Suitable for wire mesh tray (EF005163) | No |
| Suitable for cable ladder (EF005165) | No |
| Length (EF001438) | 3000 mm |
| Type of fastening (EF002442) | Overlay |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Pre-galvanised |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
